VRV S High Seasonal Efficiency

Available in Heat Pump
Capacities 11.2kW, 14.0kW, 16.0kW
Refrigerant R410A

From apartments and accommodations to cafes and restaurants, the VRV S High Seasonal Efficiency provides personalised comfort for your building occupants. Available in 3 models in a unified single fan casing design - 870(H) x 1,100(W) x 460(D) across the range with capacities from 11.2 to 16.0kW.

Key features include Automatic Refrigerant Charge (ARC) function, max piping runs of up to 120m*, VRT Smart technology and refrigerant cooled PCB with operation range up to 52°C ambient.

*ARC must be used for pipe runs >90m

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
High Seasonal Efficiency

The VRT Smart Control enables improvements on efficiency during low load operation, achieving high seasonal efficiency.

...
VRT Smart Control

VRT Smart function is available in the VRV S High Seasonal Efficiency Series for the first time. Coordination between indoor and outdoor units minimizes energy consumption by optimising capacity to meet actual operation load.

...
Long Pipe Length

Increased actual piping length up to 120 m. Actual piping length increased by 20% allows for various installation!

...
Night Time Quiet Operation

The night time quiet operation function automatically suppresses the night time operating sound by reducing operation capacity to maintain the quiet environment of the neighborhood. Three selectable modes are available depending on the required level. This function is suitable for use in residential areas.

...
New Swing Compressor

High efficiency, high capacity DC inverter swing compressor offers higher performance compared to that of conventional scroll compressors.

...
Automatic Refrigerant Charge Function

Contribute to optimised operation efficiency, higher quality and easier installation.

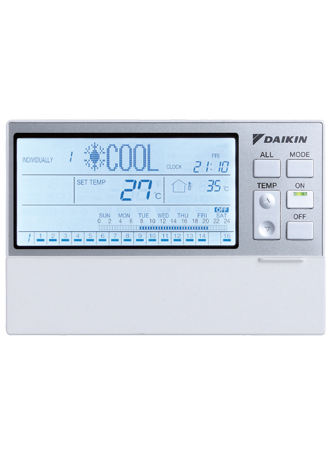

Controller Features

... ... ... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Centralised Control

Controls up to 16 groups of indoor units.

...
Individualised Scheduling

On/Off, temperature settings and scheduling can be controlled for each individual indoor unit.

...
One Touch Control

One touch button to turn all units on or off.

...
Convenient Group Control

Each group has a dedicated button for convenience.

...
Outside Temperature Display

The outside temperature can be displayed on the controller.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

Technical Specifications

System Reverse Cycle
Capacities 11.2kW, 14.0kW, 16.0kW
Indoor Type N/A
Power Supply 1 Phase: 220-240V, 50Hz, 3 Phase: 380-415V, 50Hz
Refrigerant R410A
Show Full Tech Specs >

Documents

New VRV S High Seasonal Efficiency Series achieves higher energy efficiency with a variety of function for comfort and high performance. A wide range of options for installation location and application are easily achieved by the low height casing, long piping length and other features.

Brochure > Operation Manual > Warranty Info >

Compatible Indoor Units

Here are some indoor units that are compatible with the VRV High Seasonal Efficiency outdoor unit

...

FXDQ-SPV1

Slim Duct (Compact)

Capacity Index:

25, 40, 50

View Operation Manual


Brochure
...

FXDQ-TV1C(A)

Slim Duct (Standard)

Capacity Index:

20, 25, 32, 40, 50, 63

Brochure
...

FXNQ-A2VEB

Wall Mounted

Capacity Index:

20, 25, 32, 40, 50, 63, 71


Brochure
...

FFQ-BV1B

Ceiling Mounted Cassette

Capacity Index:

25, 35, 50, 60

View Operation Manual


Brochure
...

FTXS-KVMA

Wall Mounted

Capacity Index:

25 & 35

View Operation Manual


Brochure
...

FTXS-KAVMA

Wall Mounted

Capacity Index:

50, 60, 71

View Operation Manual


Brochure
