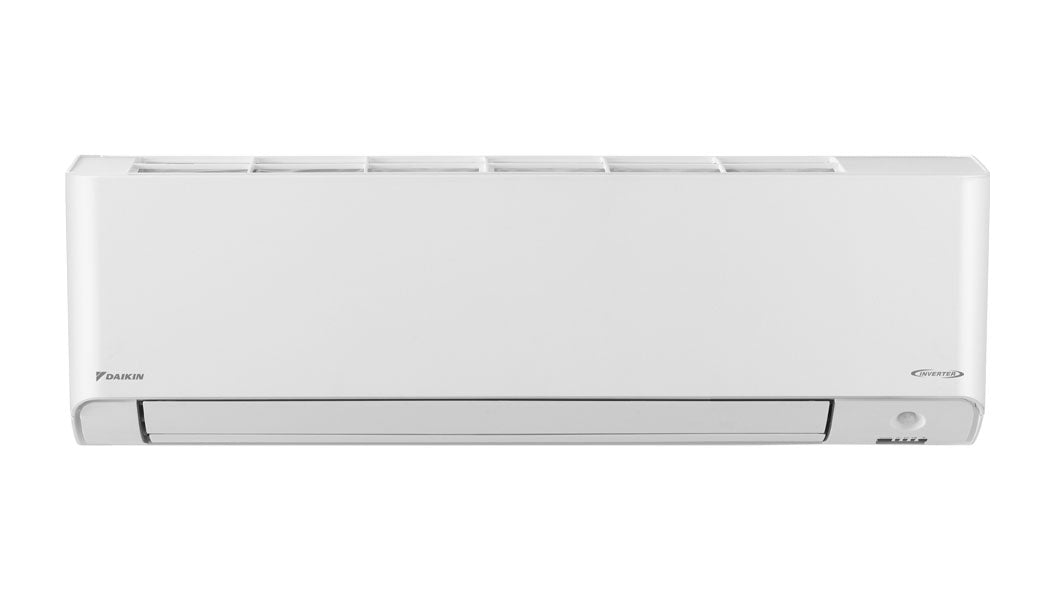

Alira (FTXM-Y(W)

Refrigerant R32

Features Daikin Streamer Technology that reduces the presence of contaminants in the home such as pollen, bacteria and mould.

Alira Flyer here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FTXM20Y FTXM20YVMA RXM20YVMA 2.2 2.0 2.7 203 299 838 275 20 15 13 28
FTXM25Y FTXM25YVMA RXM25YVMA 2.5 2.2 3.2 214 299 838 275 20 15 13 30
FTXM35Y FTXM35YVMA RXM35YVMA 3.5 3.3 3.7 225 299 838 275 20 15 13 30
FTXM46W FTXM46WVMA RXM46WVMA 4.6 3.7 4.7 253 299 920 275 30 20 13 51
FTXM50W FTXM50WVMA RXM50WVMA 5.0 4.5 6.0 342 299 1,100 275 30 20 15 54
FTXM60W FTXM60WVMA RXM60WVMA 6.0 5.3 7.2 395 299 1,100 275 30 20 15 54
FTXM71W FTXM71WVMA RXM71WVMA 7.1 5.8 8.0 410 299 1,100 275 30 20 15 60
FTXM85W FTXM85WVMA RXM85WVMA 8.5 6.2 9.0 380 329 1,240 275 30 20 19 77
FTXM95W FTXM95WVMA RXM95WVMA 9.5 7.1 10.3 410 329 1,240 275 30 20 19 77

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Perfect Fusion

New R32 Alira is a perfect blend of progressive design aesthetic, superior energy performance & indoor air quality technology.

...
Advanced Purification

Each model is fitted with three layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer Technology for powerful oxidative decomposition of pollutants.

...
Built In Wi-Fi

Wi-Fi module for connection to Daikin's Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.

...
Mould-Proof Operation

Activates after cooling or dry operation to prevent the build up of mould and odour.* * Mould-proof operation function can be toggled (On/Off) via the wireless controller

...
Intelligent Comfort

The 2-Area Intelligent Eye** is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations. **2-Area Intelligent Eye only applicable to 20-46 Class Models.

...
Coanda Airflow

Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

Streamer Technology - The Three C's

...
1. Clash

Decomposes harmful substances trapped by the High Efficiency Particulate Filter.

2. Cycle

Maintains the deodorising filter's deodorising capacity by assisting odour decomposition.

3. Clean

Removes bacteria from all filters allowing them to be maintenance free and increasing filter longevity.

The secret to high performance air purification is Daikin's Streamer Technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.

Streamer emits high-speed electrons.

The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of elements with powerful oxidative decomposition capabilities.

These elements break down unwanted substances.

How effective is Daikin Streamer Technology?

Eliminates Pollen

More than 99.6%1 in 2 hours

Eliminates Mould

More than 99.9%2 in 24 hours

Eliminates Allergens

More than 99.61%1 in 24 hours

  1. Verified at Wakayama Medical University with the following test condition: Irradiated allergens with Streamer & checked decomposition of allergen proteins by either the ELISA method, electrophoresis or electron microscopy.

  2. Verified at Japan Food Research Laboratories using antibacterial test/mould elimination test (test number: 204041635-001).

Controller Features

... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...

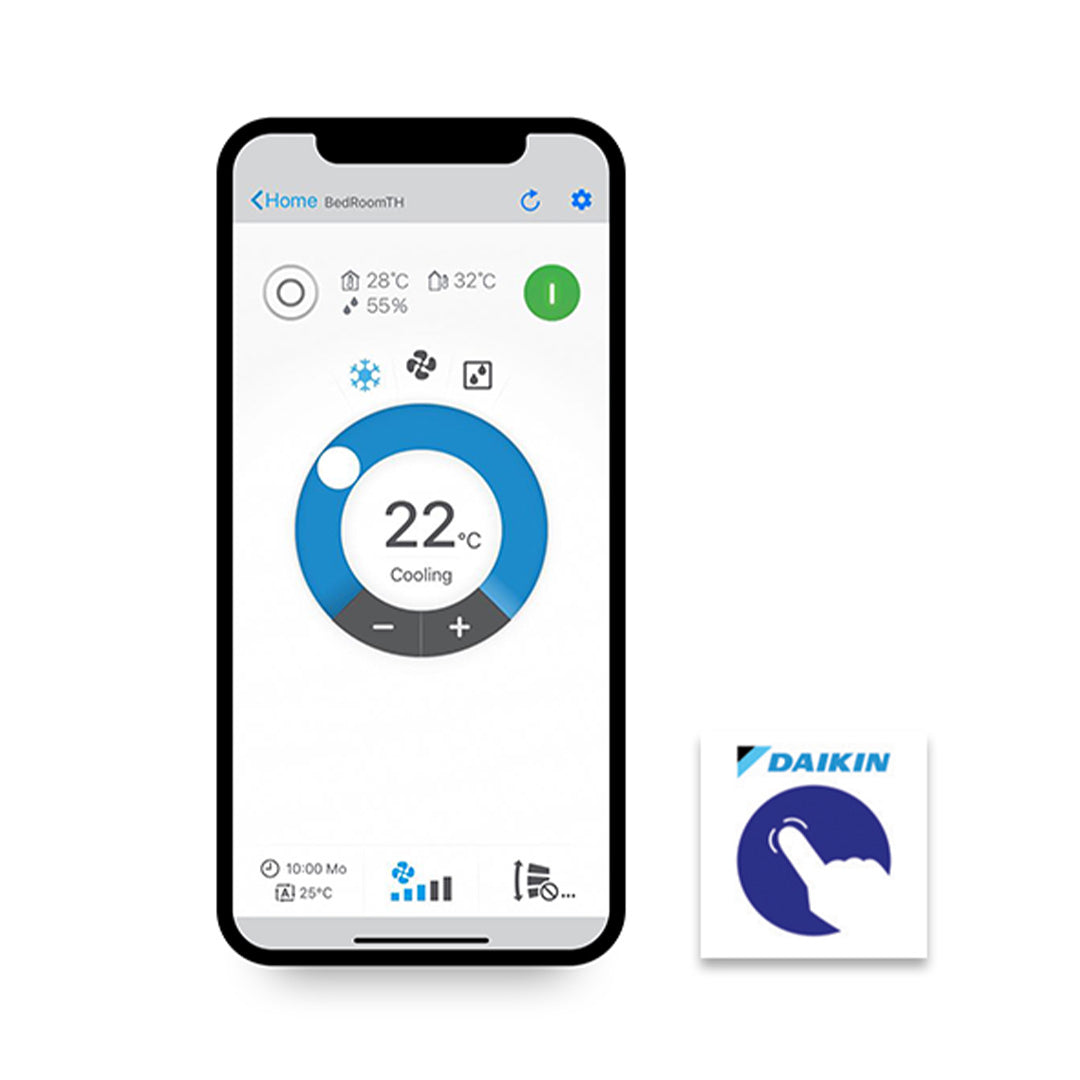

Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

Alira Technology

1Improved ODM Motor

Improved compact 14 pole DC outer diameter rotor motor encased in rubber vibration dampeners delivers higher torque more efficiently than before while ensuring whisper quiet operations.

2Redesigned Dual Louvres

Large dual louvres with aerodynamic end vanes help reduce turbulence for draught free comfort with longer throw distances of up to 10m (50-71 Class).

3Humidity Sensor

Monitors humidity to accurately control supply air temperature for comfortable and effective dehumidification of your room during Program Dry Function operation.

4Streamer Technology

Discharges high speed electrons generating powerful oxidative decomposition that continuously removes odours, bacteria and indoor air pollutants such as formaldehyde.
