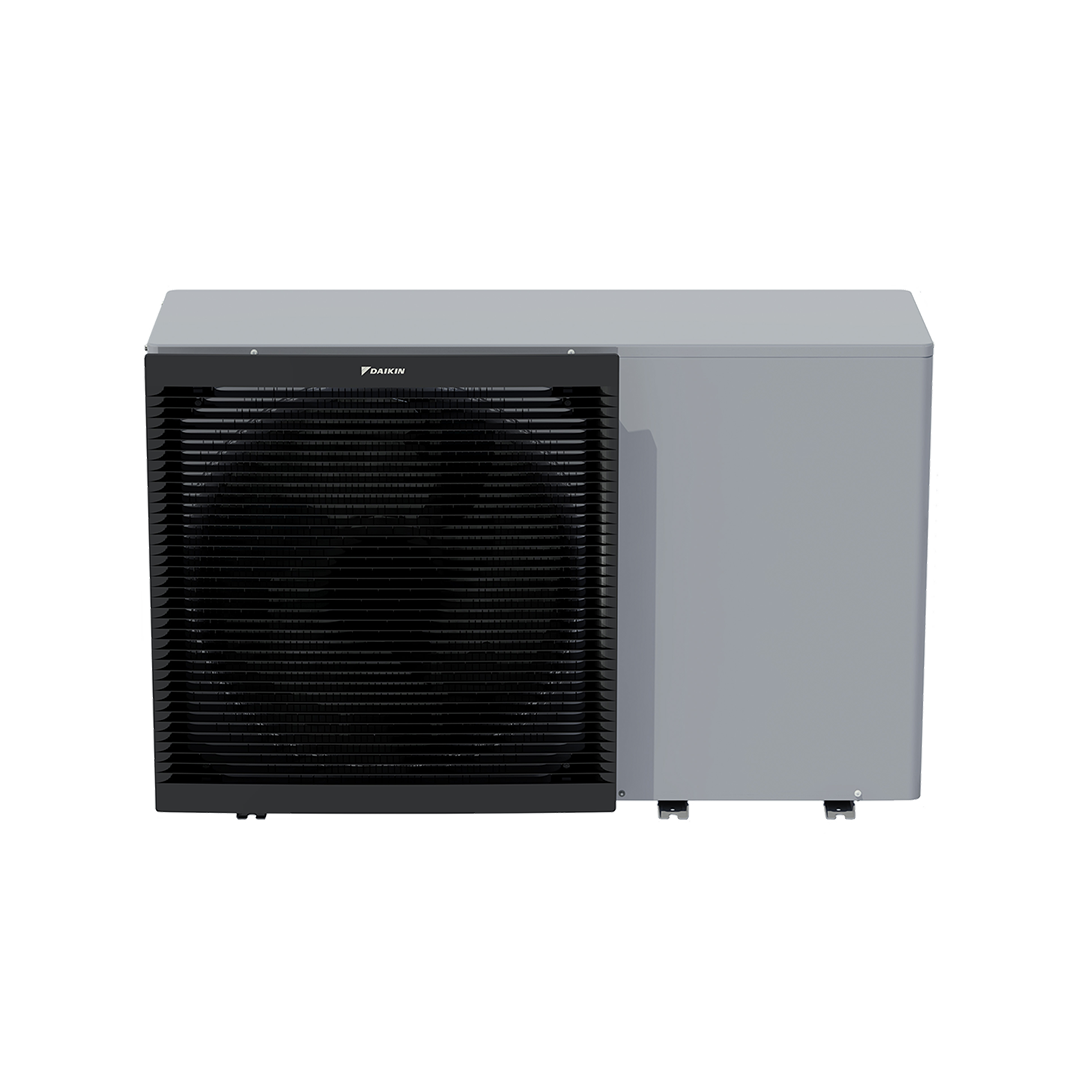

Altherma 3 M Monobloc

Refrigerant R32

Ideal for new building applications, suitable for large renovations and indoor spaces that have limited room.

The Altherma 3 M is an air-to-water monobloc heat pump system that provides heating and cooling for low energy homes and ensures superior comfort.

Altherma 3 M Monobloc Flyer here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Documents

Technical Specifications / Documents

System Name Controller (BIM) Engineering Data Links Capacity Dimensions (IU) Weight
Outdoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) OU
Heating Only
EDLA09D MMI Interface (Included) EDLA09DA3V3 - - 9.4 870 1380 460 149
EDLA11D MMI Interface (Included) EDLA11DA3V3 - - 9.4 870 1380 460 149
EDLA14D MMI Interface (Included) EDLA14DA3V3 - - 12.0 870 1380 460 149
EDLA16D MMI Interface (Included) EDLA16DA3V3 - - 16.0 870 1380 460 149
Reverse Cycle
EBLA09D MI Interface (Included) EBLA09DA3V3 9.4 - 9.4 870 1380 460 149
EBLA11D MI Interface (Included) EBLA11DA3V3 11.6 - 10.6 870 1380 460 149
EBLA14D MI Interface (Included) EBLA14DA3V3 12.8 - 12.0 870 1380 460 149
EBLA16D MI Interface (Included) EBLA16DA3V3 14.0 - 16.0 870 1380 460 149

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Efficient Heating

Only requires 1kW of electricity to pump 3-5kW of heat into your home, much more efficient compared to gas heating.

...
No Gas Connections

Altherma works without the need for oil, flammable gas or other hazardous substances thus reducing the risks that these fuels may create.

...
Electric Booster Heater

In the event of insufficient heating capacity, Altherma is equipped with a back up heater to cover the short fall.

...
Flexible Installation

In new homes, the underfloor piping can be installed during the construction phase and for existing homes, the piping can be connected to radiators installed around the house.

...
Domestic Hot Water

Altherma's design can be extended to provide domestic hot water over and above your comfort requirements by incorporating a domestic hot water tank.

...
Improved Compact Design

Ideal for small spaces. The monobloc is the ideal solution for places that have limitations on space. No additional indoor unit is required, and the monobloc can fit right under a window to save outdoor space.

...
Easy Installation and Maintenance

The Daikin Altherma 3 M attains its power from within by combining all the hydraulic components into one unit.

...
Redesigned Casing

A black horizontal front grille hides the single fan, reducing the perception of sound produced by the unit. The light grey casing reflects the installation space to help the unit blend into any environment.

...
Large Single Fan

A single fan for high-capacity units. Daikin engineers replaced the double fan with one larger fan and optimised its shape to lower the operational sound and improve air circulation.

Controller Features

... ... ... ... ... ...
...
Quick Configuration

After logging in, you'll be able to configure the unit with the new controller in less than 10 steps. You can even check if the unit is ready to use by running test cycles.

...
Easy Operation

The new interface features a few buttons and 2 navigational knobs to help you quickly set the room temperature and control units.

...
User Friendly Design

The interface features an intuitive design. The high contrasted colour screen delivers stunning and practical visuals for both installers and service engineers.

...
WLAN

WLAN cartridge connection

...
Small Dimensions

Small dimensions for a discreet unit: 136 x 160 x 37 mm (HxWxD).

...
Easily set operation parameters

Basic functions focusing on space heating and domestic hot water (ON/OFF, temperature set point)

...
Intuitive touch-button control

Symbol driven end-user interface with intuitive touch button control

...
Sleek and elegant design

Sleek and elegant design, available in 3 colours to match any interior design

...
Compact, measures only 85 x 85 mm

Compact, only 85x85mm, easy integration in standard electrical installation boxes

ALTHERMA 3 M MONOBLOC - new range Technology

1Madoka, a user-friendly wired room thermostat (BRC1HHDAW/S/K)

Sleek and elegant design. Intuitive touch button control. Three colours to match any interior (white, black and silver-grey). Compact unit measuring only 85 x 85 mm.

2Heating and cooling emitters

As a mid-temperature heat pump, the Daikin Altherma 3 M works perfectly with various emitters, including fan coils, underfloor heating and heat pump convectors.

3Domestic hot water production

The monobloc combines with stainless steel third party tank HSSE3151CW that provides domestic hot water quickly.

4Man-Machine Interface (MMI)

Inspired by the award-winning design of the Daikin Altherma 3 indoor units, Daikin also upgraded this controller to deliver an even more user-friendly interface.
