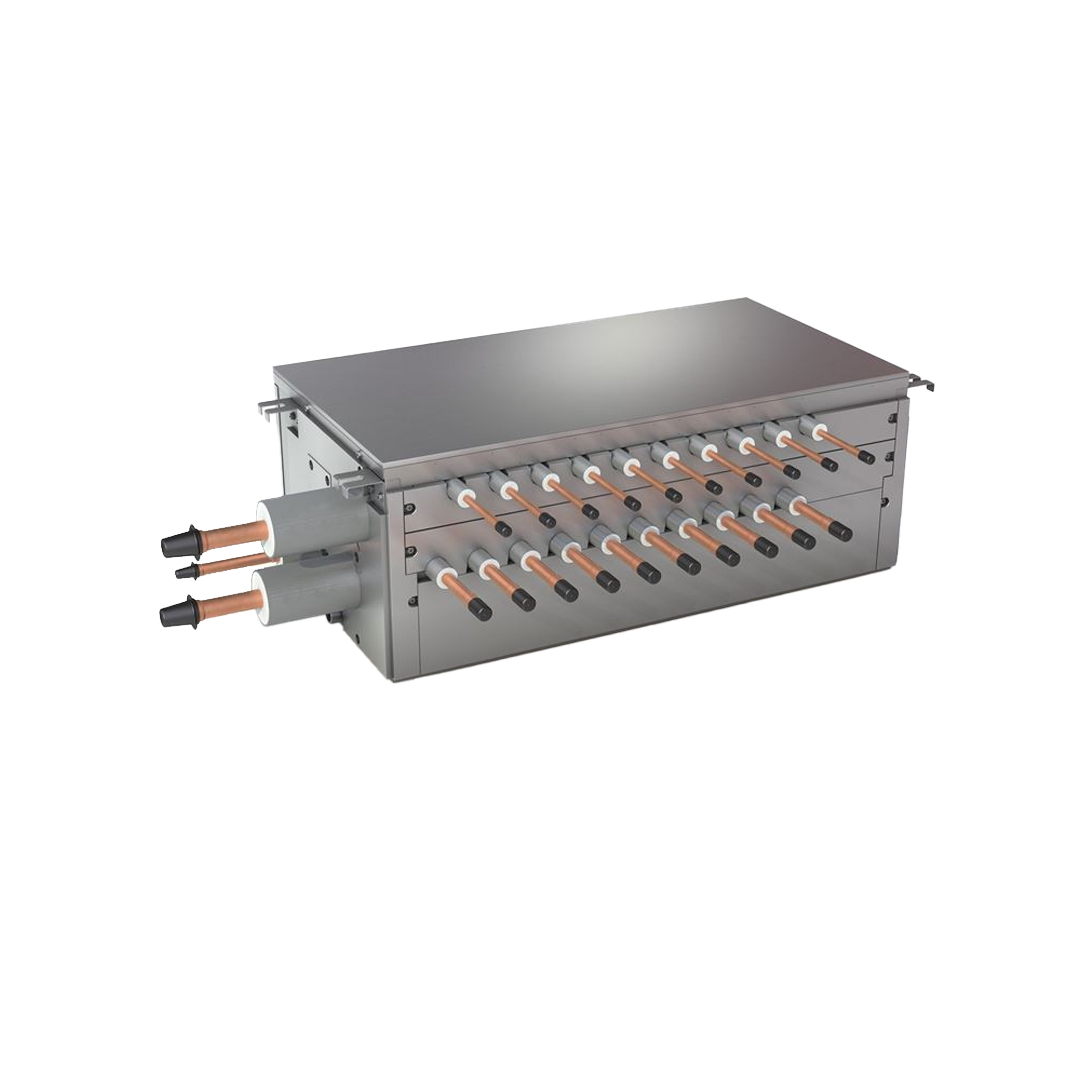

Branch Selector - Multi Port BS-BVM/AVM

Capacities 6 Models: Drainless Type: BS4Q14BVM (4-branch) BS6Q14BVM (6-branch) BS8Q14BVM (8-branch) BS10Q14BVM (10-branch) BS12Q14BVM (12-branch) Standard Type: BS16Q14AVM (16-branch)

Branch Selector (BS) units allow the individual switching of indoor units/zones between cooling & heating.

Technical Specifications / Documents

(BIM) Engineering Data Links Dimensions (IU) Weight
Indoor Unit H W D (kg)
(mm) (mm) (mm) IU
BS4Q14BVM 298 370 480 22
BS6Q14BVM 298 580 480 31
BS8Q14BVM 298 580 480 33
BS10Q14BVM 298 820 480 46
BS12Q14BVM 298 820 480 48
BS16Q14AVM 298 1060 430 50
