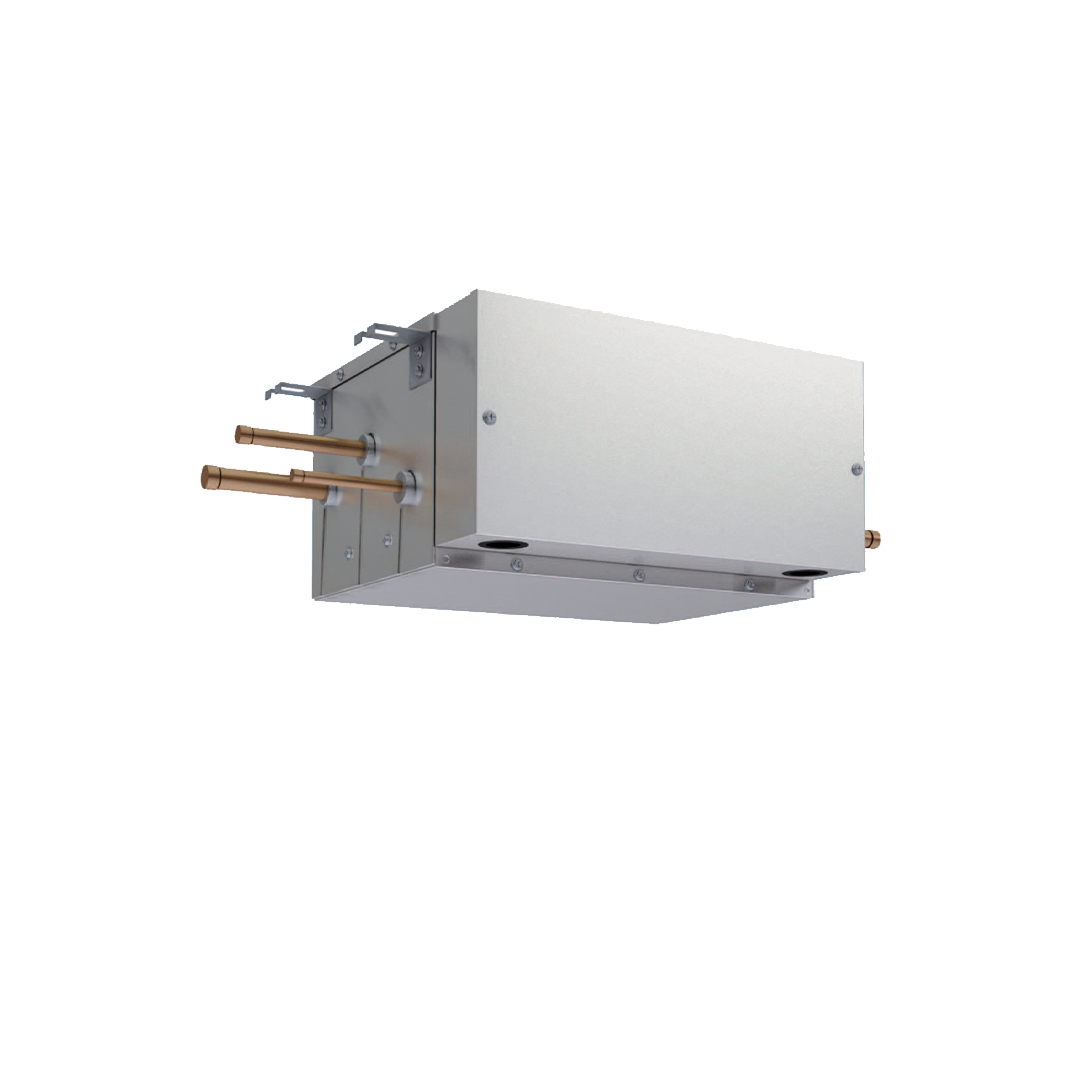

Branch Selector - Single Port BSQ-AVE

Single Port BS Unit For VRV Heat Recovery Series

Branch Selector (BS) units allow the individual switching of indoor units/zones betweencooling & heating.

Daikin’s heat recovery systems utilise a3-pipe system (liquid, gas and high/lowpressure gas discharge pipe). The BS units regulate the refrigerant to each indoor unit and allow the individual switching of indoor units between heating and cooling.

Single Port BSQ-AVE Flyer here

Technical Specifications / Documents

(BIM) Engineering Data Links Dimensions (IU) Weight
Indoor Unit H W D (kg)
(mm) (mm) (mm) IU
BSQ100AVE 207 388 326 11
BSQ160AVE 207 388 326 11
BSQ250AVE 207 388 326 14
