Bulkhead (FDYBA)

Refrigerant R32

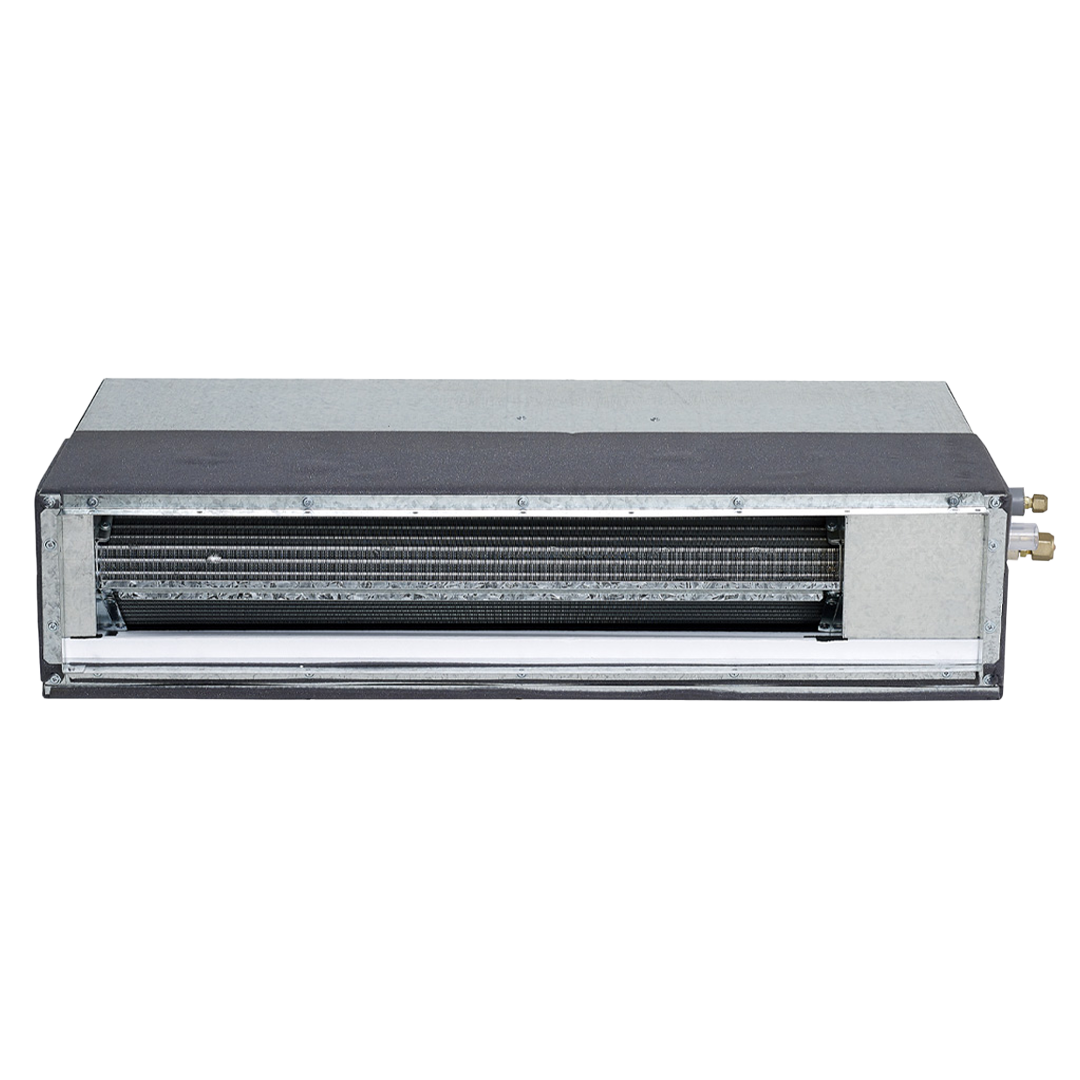

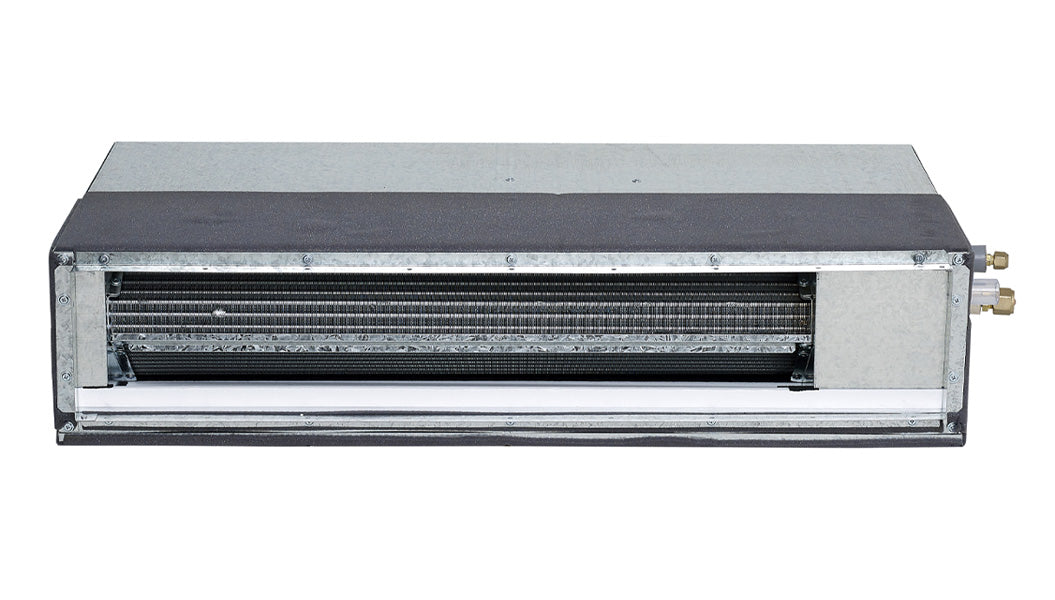

The Bulkhead range is the ideal choice for air conditioning areas where a discreet installation is preferred.

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.

The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.

Ducted Brochure here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FDYBA25A-GV FDYBA25AV1 RZAC25GV1 2.5 3.5 150 200 700 450 30 15 18 28
FDYBA35A-GV FDYBA35AV1 RZAC35GV1 3.5 4.0 195 200 900 450 30 15 21 28
FDYBA50A-GV FDYBA50AV1 RZAC50GV1 5.0 6.0 240 200 900 450 30 15 21 28
FDYBA60A-GV FDYBA60AV1 RZAC60GV1 6.0 7.0 325 200 1100 450 30 15 24 45
FDYBA71A-GV FDYBA71AV1 RZAC71GV1 7.1 8.0 325 200 1100 450 30 15 24 45

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Compact Performance

Offering maximum performance in a compact, 450mm deep package, this model is idea for wardrobe installations.

...
Quiet Operation

Noise levels are truly discreet and whisper quiet at 19dBA (low fan speed, 35 Class Model).

...
Flexible Return Air

Option of a rear or bottom suction return allows for greater installation flexibility

...
Built-in Condensate Pump

DC condensate pump is equipped as standard with a 750mm lift.

...

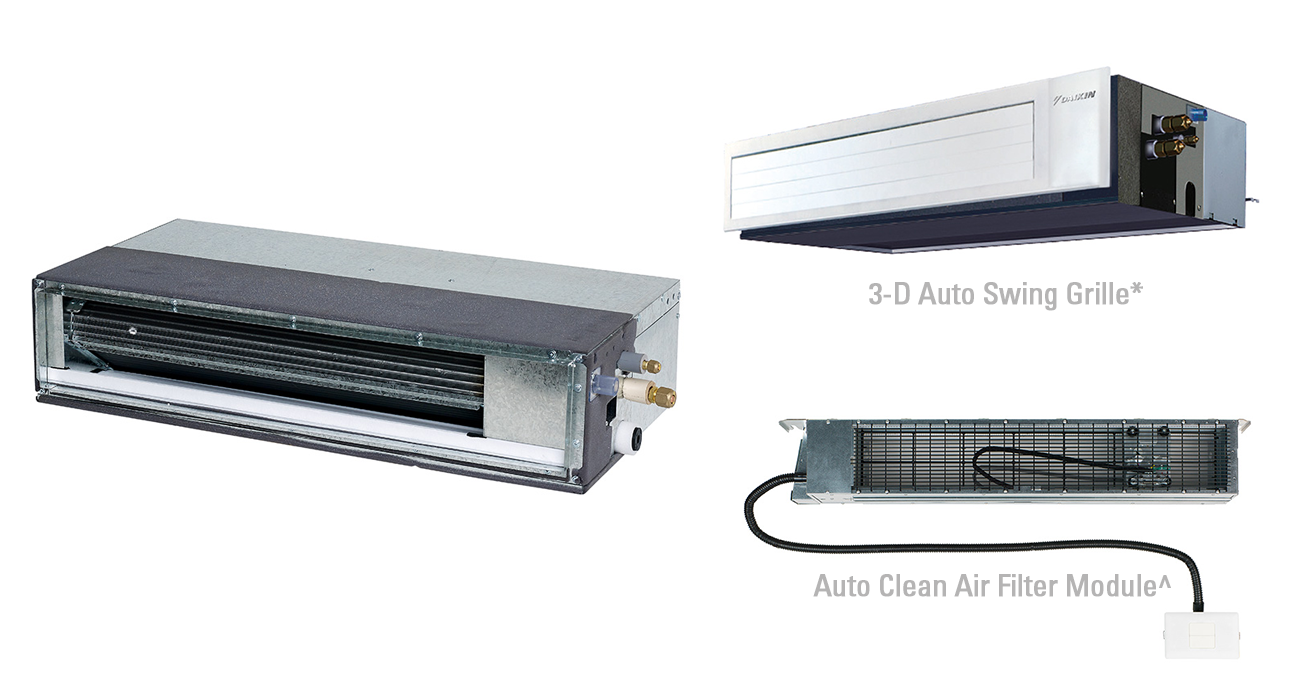

3-D Auto Swing Grille (Option)*

Vertical & horizontal motorised louvres installed provide 3-D airflow distribution, circulating air to all corners of the room.Vertical & horizontal motorised louvres installed provide 3-D airflow distribution, circulating air to all corners of the room. *BDG20A09A1 for 25 Class, BDG20A15A1 for 35-50 Class & BDG20A20A1 for 60-71 Class. Only compatible with BRC1E63 controller.

...
Auto Clean Air Filter Module (Option)

This module keeps the internal filter clean by collecting dust and storing it in a convenient vacuum port for easy removal. ^BAE20A62 for 25 Class, BAE20A82 for 35-50 Class & BAE20A102 for 60-71 Class (all models extend depth by 188mm). Only compatible with BRC1E63 controller.

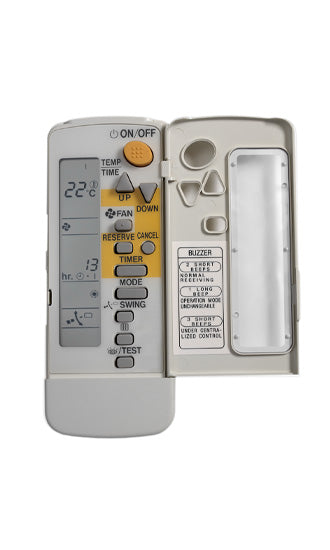

Controller Features

... ... ... ...
...
On/Off Timer

Program on and off times within the day to suit your needs.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Set Mode

Automatic, Dry, Cooling, Heating, Fan Only Operation

...
Fan Speed Control

Automatic, Dry, Cooling, Heating, Fan Only

...
Operation Mode Theming

Each operation is colour-coded for easy association

...
Zone On / Off

Turn on or off the zones in your home (requires Zone Controller)

...
Enter Zone Names

Customize the name of the zones through your home. (Zone Controller Required)

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
2 Colours

Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.

...
Sleek Stylish Design

Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

...
User Friendly Interface

The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

...
Daikin App for Installer

Simplifies the advanced settings such as field settings and set point range.

*All Controllers are optional & separately sold.
