| Refrigerant | R410A |

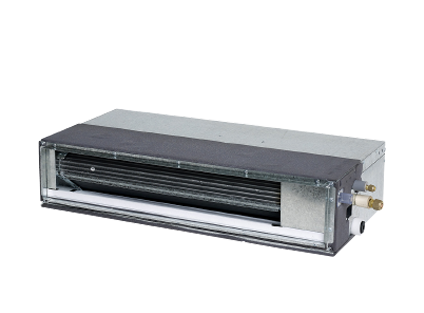

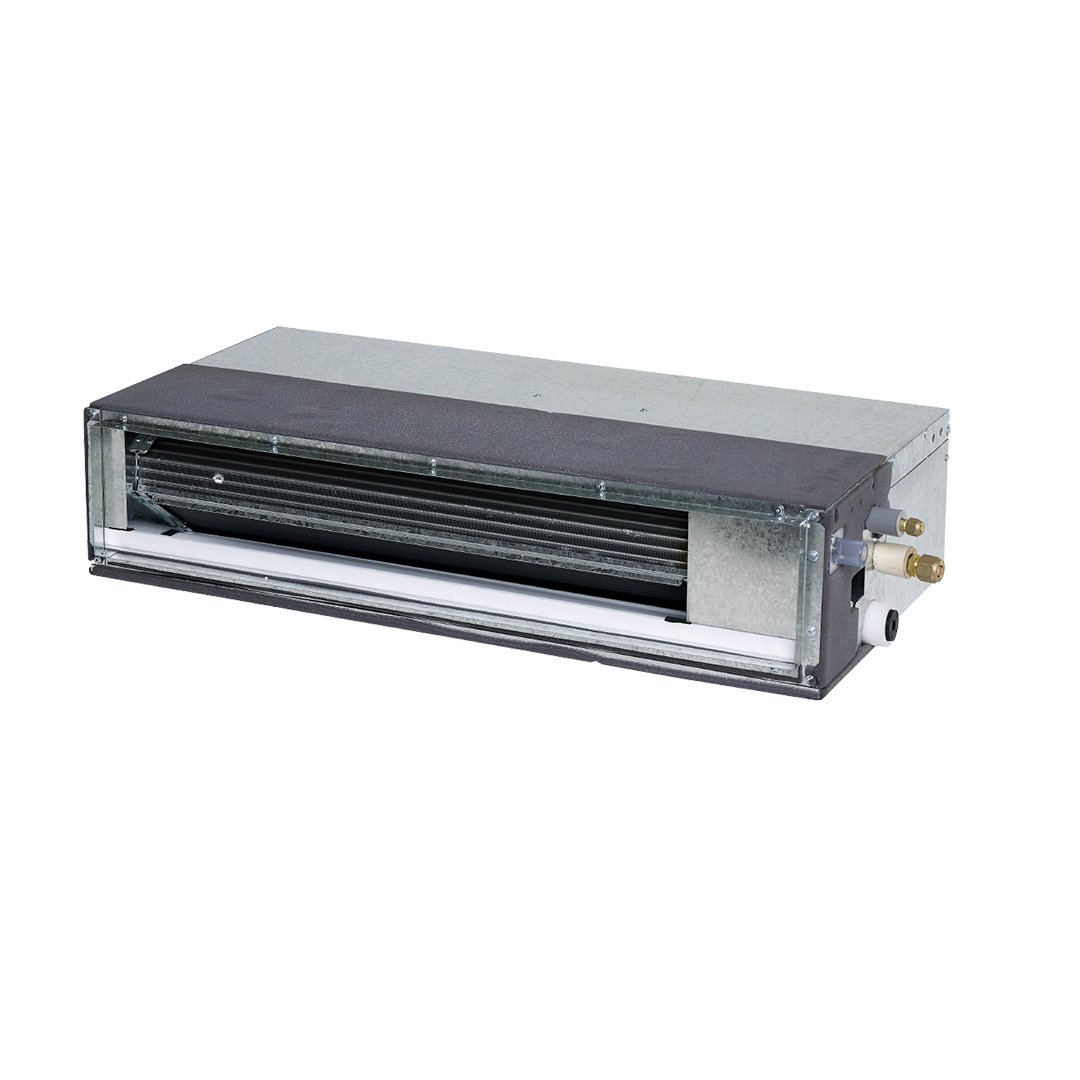

The FXDQ-TV1C(A) series is a compact, light weight, low static bulkhead unit designed to suit residential apartment applications. It's ultra compact nature of only 450mm deep allows for easy installation into drop ceilings and wardrobes. This compact bulkhead also comes with a built-in drain pump with 750mm lift and a removable return air filter. Available in two series:
1. FXDQ-TV1C - Standard Model
2. FXDQ-TV1CA - Features Built-in Multi Tenancy Kit*
*This kit allows an independent 24V power source to be supplied to the indoor unit PCB in conjunction with 1 phase power from the tenants board. This ensures critical operations, such as oil return are not affected should there be an interruption to the main indoor unit power.
FXDQ-TV1C here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Max ESP | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | ||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | |||
| FXDQ20TV1C | 2.2 | 1.6 | 2.5 | 145 | 30 | 200 | 700 | 450 | 17 |
| FXDQ25TV1C | 2.8 | 2.0 | 3.2 | 150 | 30 | 200 | 700 | 450 | 17 |
| FXDQ32TV1C | 3.6 | 2.6 | 4.0 | 167 | 30 | 200 | 700 | 450 | 17 |
| FXDQ40TV1C | 4.5 | 3.4 | 5.0 | 250 | 50 | 200 | 900 | 450 | 20 |
| FXDQ50TV1C | 5.6 | 4.1 | 6.3 | 250 | 50 | 200 | 900 | 450 | 20 |
| FXDQ63TV1C | 7.1 | 5.1 | 8.0 | 333 | 40 | 200 | 1100 | 450 | 23 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Comfort
Control of airflow rate can be selected from 5-step and Auto to provide comfortable airflow.
Energy Saving
Adoption of a DC motor for both the fan motor and the drain pump has greatly reduced power consumption and also operation noise.
Installation Flexibility
Features rear or bottom return to suite site constraints.
Drain Pump
Drain pump is equipped as standard accessory with 750mm lift.
