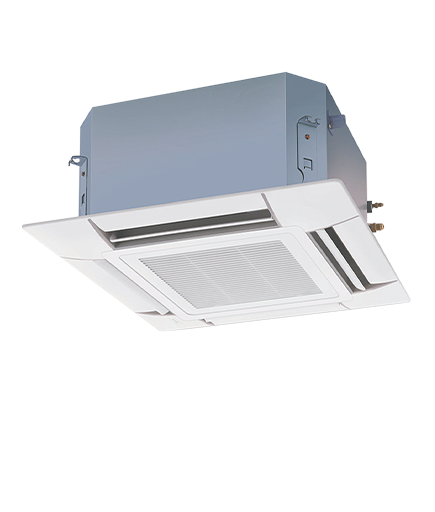

Compact Cassette (FFA-R)

Refrigerant R32

Daikin multi-split indoor units include wall-mounted, duct-connected and ceiling-mounted cassette types. The wide lineup helps you achieve the interior design as well as the cooling and heating you want. These series also have capacities from 2.0 right up to 9.5 kW class. It is so easy to choose the right unit for every room in your home.

FFA-R Brochure here

...

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
FFA25RV1A* 2.5 - 2.5 150 260 575 575 17.5
FFA35RV1A* 3.5 - 3.5 167 260 575 575 17.5
FFA50RV1A* 5.0 - 5.0 200 260 575 575 17.5
FFA60RV1A* 6.0 - 6.0 250 260 575 575 17.5

*Remote controllers are not included in CDXP-RVMA (Remote Controller - BRC086A11), CDXM-RVMA (Remote Controller - BRC073A4) and FMA-RVMA (Remote Controller - BRC1E63). These are purchased separately.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Completely Flat Finish

This discreet configuration allows the indoor unit to be installed completely flat to the ceiling. The unit is designed to fit inside a ceiling with a height of 300 mm or more and a ceiling grid of just 600 mm wide. This allows lights, speakers and sprinklers to be placed in adjoining ceiling tiles.

...
Soil Prevention Setting

This setting directs airflow away from the ceiling to prevent dust build-up and other marking. When it is selected, the flap arc is limited to a range of 25 to 60 degrees. The result is a cleaner ceiling which requires minimal maintenance.

...
Draught Prevention Setting

The draught prevention setting stops air blowing directly on to a person's body. With this setting, flap movement can be limited to an arc of 0 to 35 degrees. This helps to eliminate uncomfortable draughts while maintaining effective airflow.

Controller Features

... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Holiday Mode

Deviates from your normal schedules to your select holiday operation schedule.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
