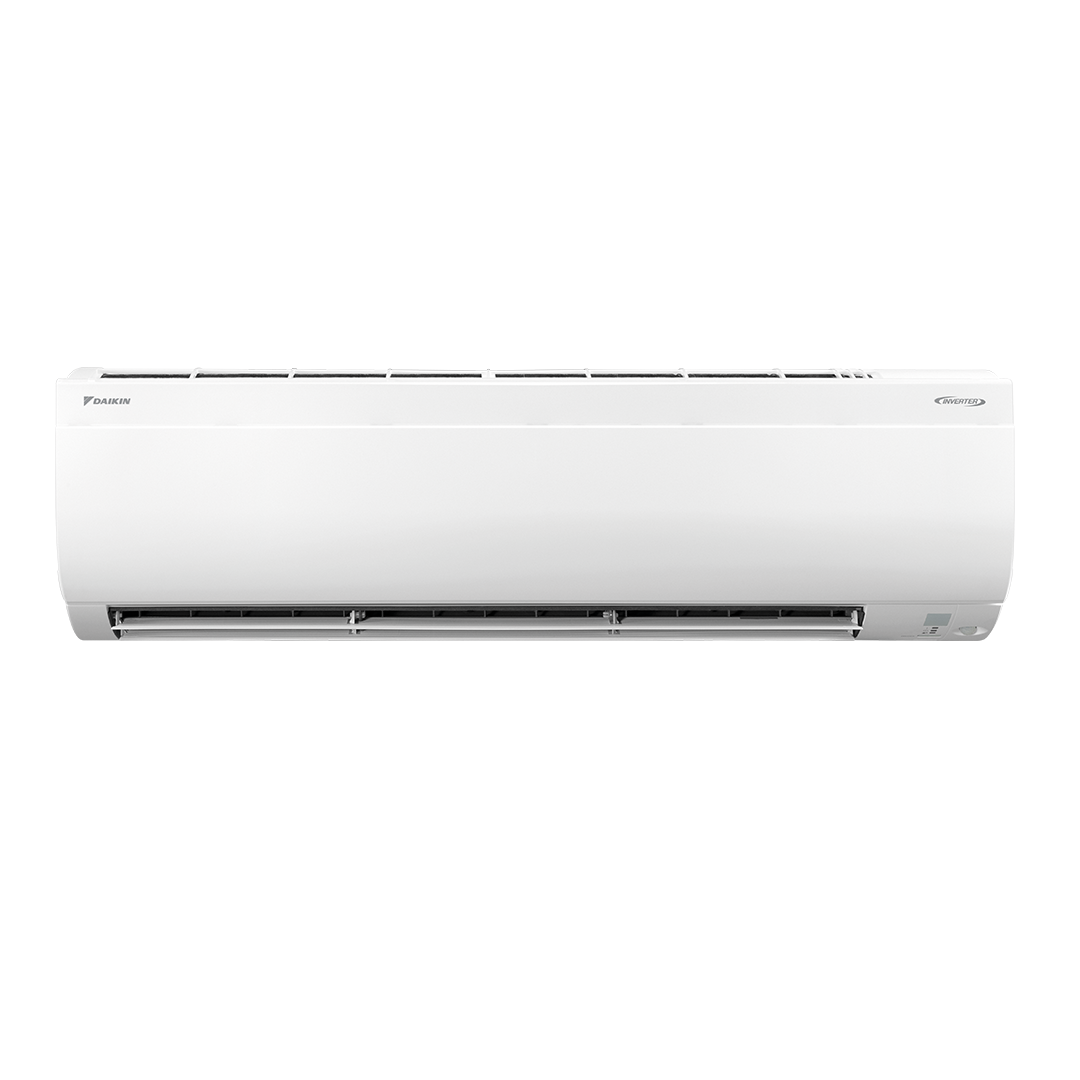

Cora (FTXM-U)

Refrigerant R32

Delivering everyday efficiency to your living space, the Daikin Cora series features a higher energy star rating, whisper quiet sound levels and next generation odour removal technology for powerful and thorough climate and air quality control.

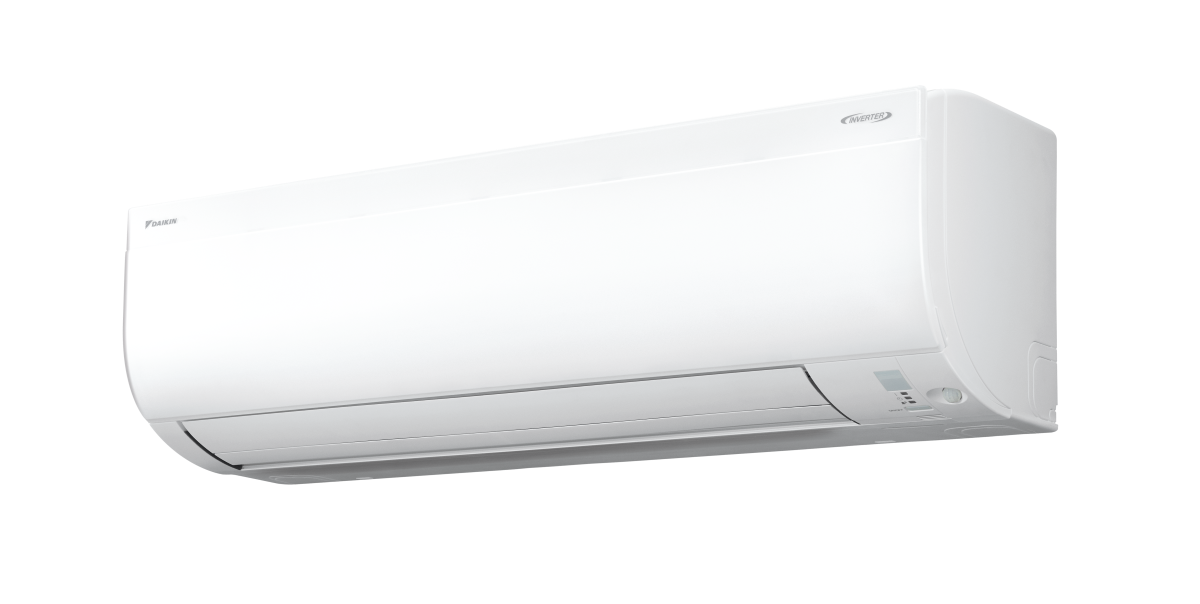

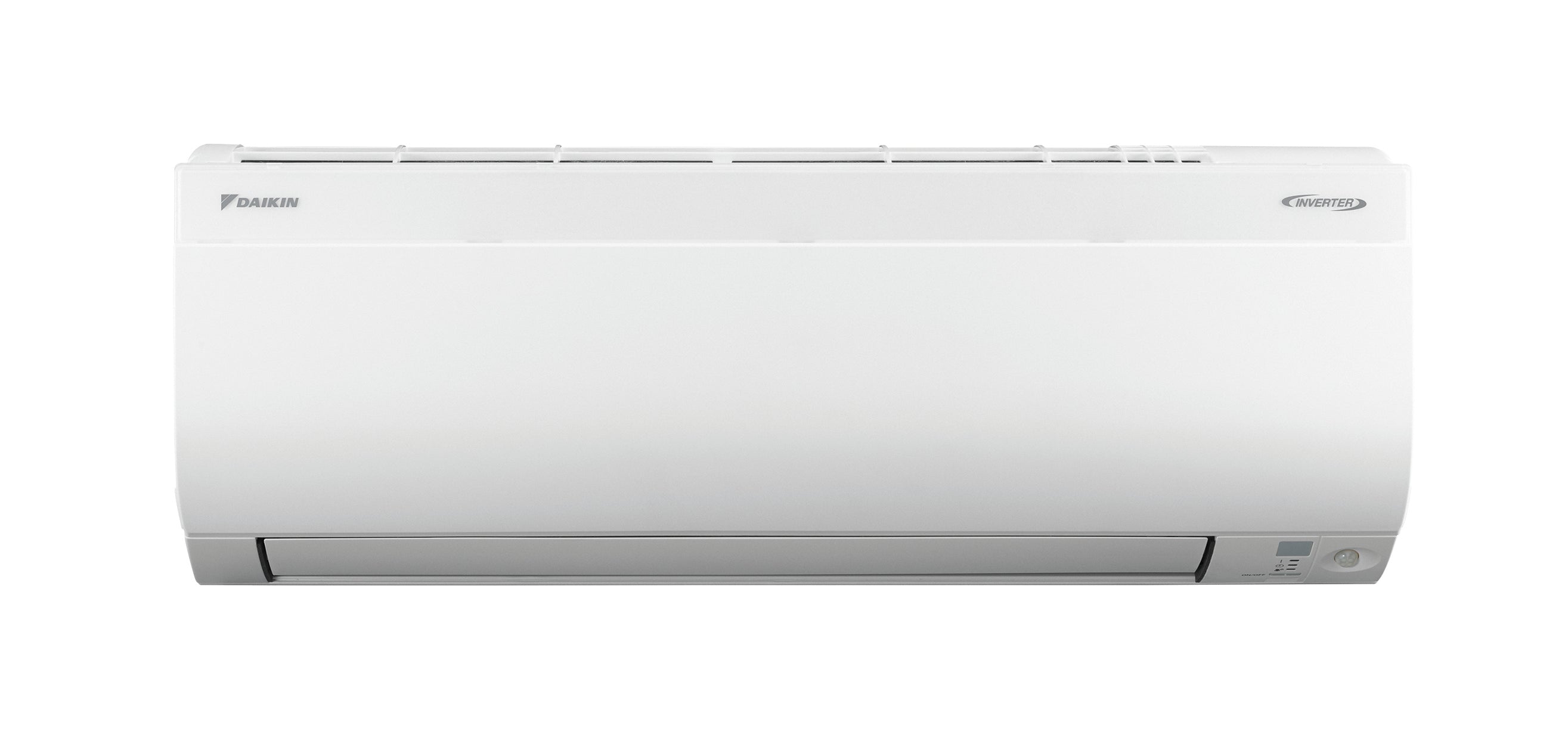

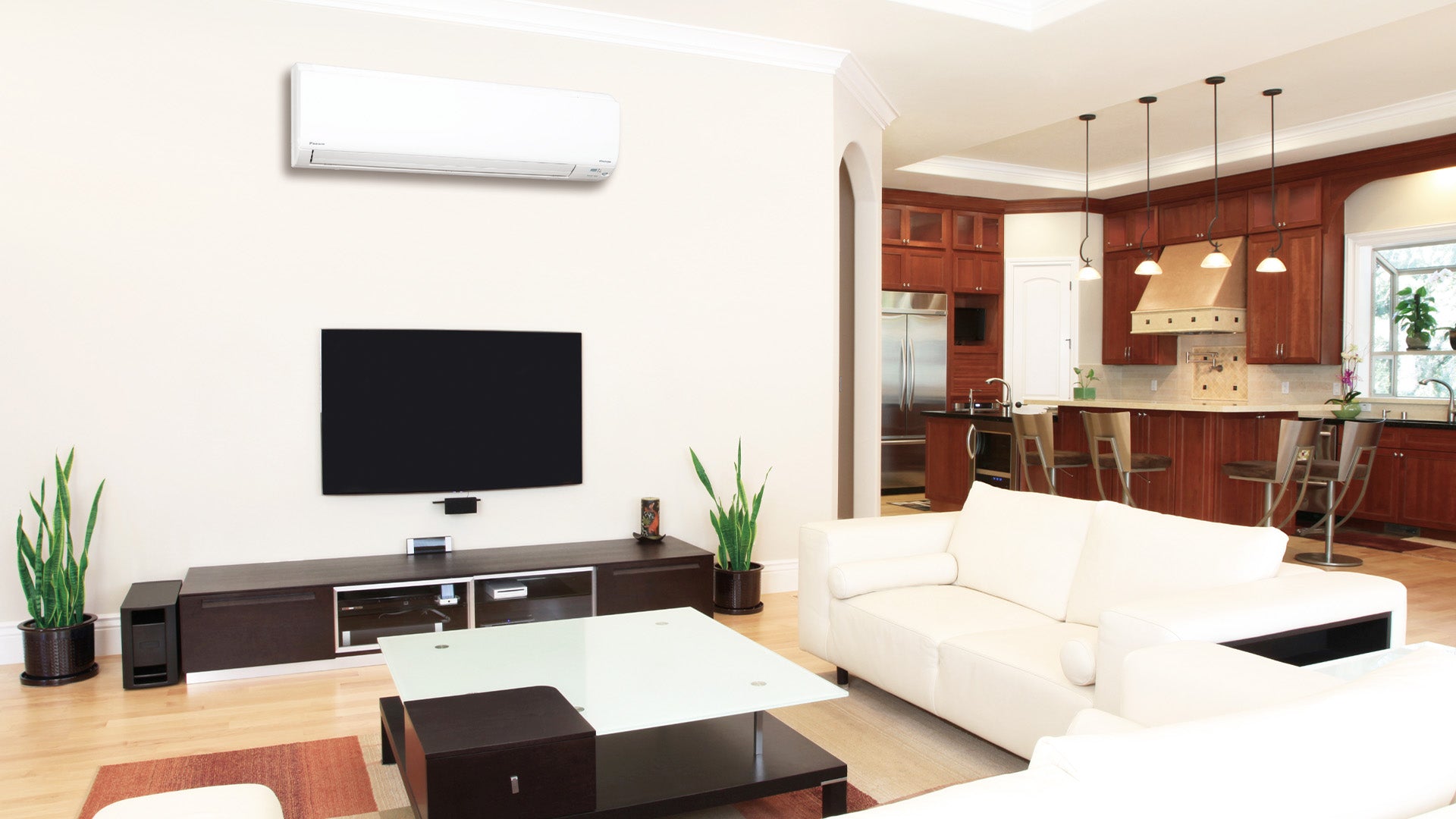

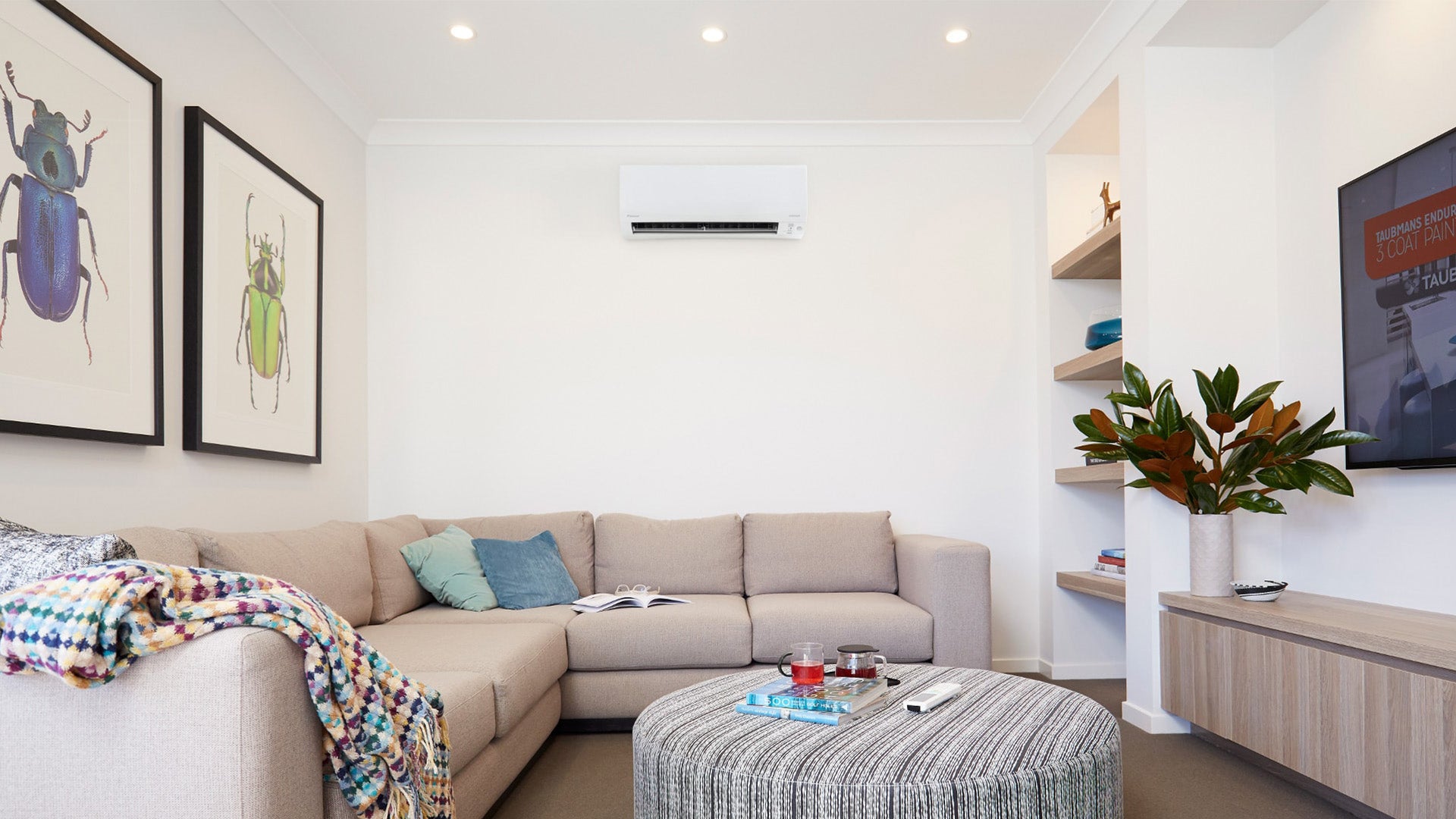

The Cora features a beautifully redesigned front panel, with matte crystal accents for a clean, sleek appearance which blends seamlessly into any modern bedroom or living area. Create your ideal living space with the Daikin Cora.

Cora Flyer here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FTXM20U FTXM20UVMZ RXM20UVMZ 2.0 2.0 2.8 156 285 770 226 20 15 9 28
FTXM25U FTXM25UVMZ RXM25UVMZ 2.5 2.3 3.3 173 285 770 226 20 15 9 30
FTXM35U FTXM35UVMZ RXM35UVMZ 3.5 2.8 4.0 183 285 770 226 20 15 9 30
FTXM46U FTXM46UVMZ RXM46UVMZ 4.6 3.3 5.4 203 285 770 226 30 20 9 51
FTXM50U FTXM50UVMZ RXM50UVMZ 5.0 4.2 6.1 287 295 990 266 30 20 13 54
FTXM60U FTXM60UVMZ RXM60UVMZ 6.0 4.9 7.3 333 295 990 266 30 20 13 54
FTXM71U FTXM71UVMZ RXM71UVMZ 7.1 5.3 8.1 328 295 990 266 30 20 13 60

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Precision Control

For even greater precision and control, you can now set your room temperature in increments of 0.5°C to ensure optimal comfort conditions all year round.

...
Coanda Airflow

Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

...
2-Area Intelligent Eye

The 2-area Intelligent Eye*** is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations. (***Applicable for 20-46 Class Models)

...
Program Dry Function

Besides reducing humidity, this function automatically controls temperature and airflow rate and will cleverly switch into cooling mode if the room temperature rises too much.

...
Advanced Purification

Each model is fitted with a titanium apatite deodorising air purification filter that traps microscopic particles, decomposes odours and even deactivates bacteria. Now featuring the new odour removing function** for even more thorough odour removal inside the unit. (**Applicable for 20-71 Class Models)

...
R32 Refrigerant

Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

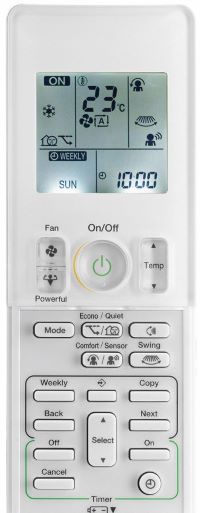

Controller Features

... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

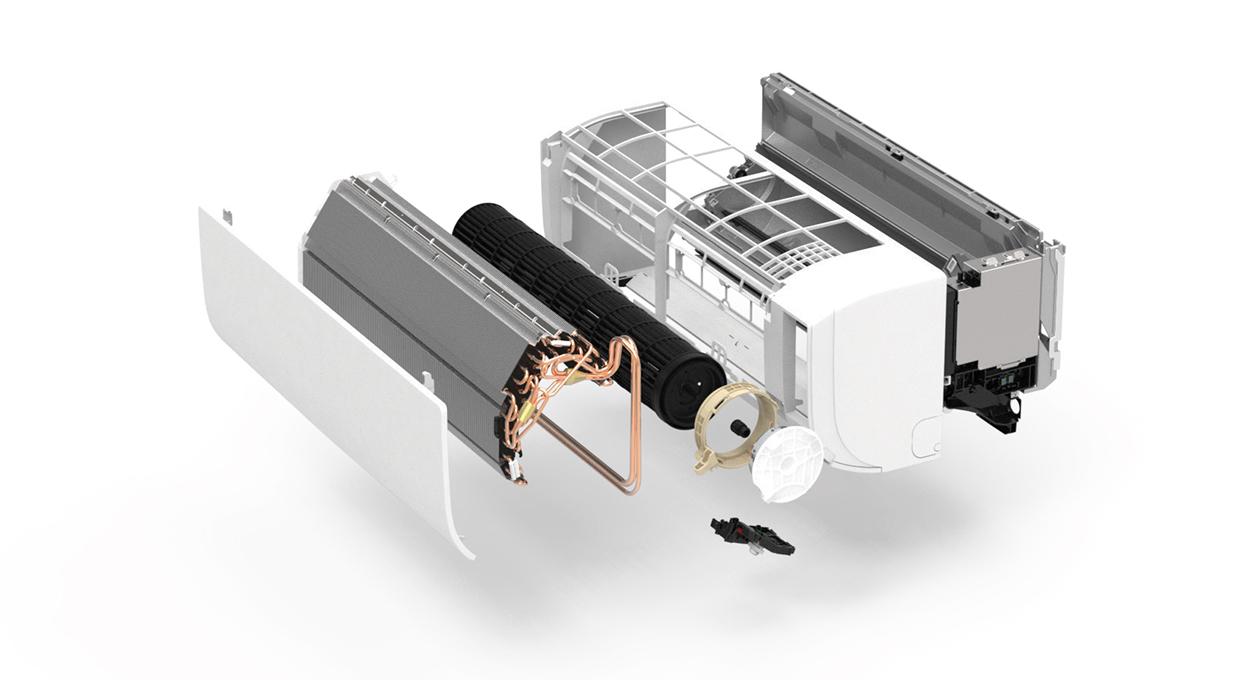

New Cora Technology

1Redesigned Heat Exchanger

Slit type fin design with Ø5mm piping increases heat exchange area for improved capacity output and energy performance.

2Cross Flow Fan

Large diameter rotor with aerofoil blade design delivers larger volumes of air more quietly than ever before.

3New ODM Motor

Compact 10 pole DC outer diameter rotor motor delivers higher torque more efficiently.
