| Available in | 7 models |
| Refrigerant | R32 |

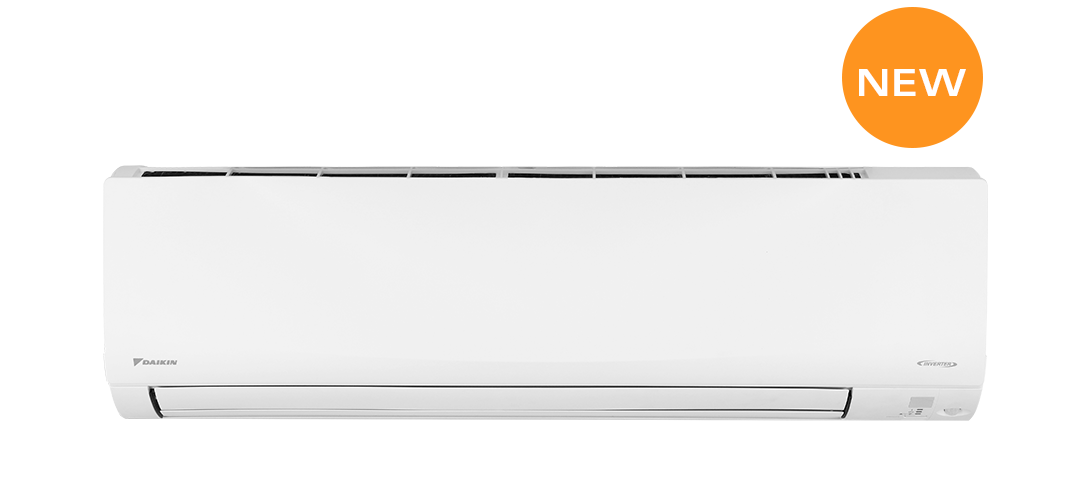

The Cora+ takes trusted comfort further with a more compact design, enhanced energy efficiency and built-in Wi-Fi connectivity. Delivering reliable year-round performance, greater convenience and effortless everyday comfort, while making it easier to create your ideal indoor environment.
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications
| System Name | DK-BIM Library Links | Capacity | Air Flow (UI) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | TC | SC | HC | Cool | Heat | H | W | D | OU-IU | OU-IU | IU | OU | |
| (kW) | (kW) | (kW) | (l/s) | (l/s) | (mm) | (mm) | (mm) | (m) | (m) | (kg) | (kg) | |||
| CORAPLUS20-NZ | FTXM20AVMZ | RXM20AVMZ | 2.0 | 1.90 | 2.8 | 160 | 176 | 286 | 770 | 244 | 20 | 15 | 9 | 36 |
| CORAPLUS25-NZ | FTXM25AVMZ | RXM25AVMZ | 2.5 | 2.29 | 3.3 | 185 | 185 | 286 | 770 | 244 | 20 | 15 | 9 | 36 |
| CORAPLUS35-NZ | FTXM35AVMZ | RXM35AVMZ | 3.5 | 2.71 | 4.0 | 191 | 200 | 286 | 770 | 244 | 20 | 15 | 9 | 36 |
| CORAPLUS46-NZ | FTXM46AVMZ | RXM46AVMZ | 4.6 | 3.31 | 5.4 | 200 | 210 | 286 | 770 | 244 | 30 | 20 | 9 | 50 |
| CORAPLUS50-NZ | FTXM50AVMZ | RXM50AVMZ | 5.0 | 4.01 | 6.1 | 270 | 311 | 295 | 993 | 281 | 30 | 20 | 13 | 52 |
| CORAPLUS60-NZ | FTXM60AVMZ | RXM60AVMZ | 6.0 | 4.68 | 7.3 | 310 | 365 | 295 | 993 | 281 | 30 | 20 | 16 | 52 |
| CORAPLUS71-NZ | FTXM71AVMZ | RXM71AVMZ | 7.1 | 5.35 | 8.1 | 325 | 365 | 295 | 993 | 281 | 30 | 20 | 16 | 56 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Built-in Wi-Fi
Connection to Daikin’s Mobile Controller smartphone interface is now included.
Flexible Installation
Fits where others can’t. With a 35° stop valve piping angle, installers have more room to work, making it easier to install in tight outdoor spaces and tricky locations. Indoor pipe tail length has been improved and reduced gas pipe size for 71 class capacity (5/8” to 1/2”).
Energy Performance
More comfort, less energy use. New compressor technology delivers top-tier efficiency, helping reduce power bills while keeping your home comfortable.
Auto Mould Proof Operation
To support a cleaner and more comfortable living environment, the Mould Proof Operation helps keep the inside of the air conditioner dry after use, reducing conditions that may lead to mold formation.
Redesigned Technology
The internal components have been redesigned to achieve improved capacity, energy performance and quietness.
Lizard and Bug Protection
Built for long-term reliability. A sealed electrical design helps prevent insects and lizards from getting inside, protecting key components such as the PCB, resulting in improved durability.
Controller Features
Operation Timers
Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.
Comfort Mode
Airflow is optimised to stream upwards during cooling and downwards during heating.
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
Wi-Fi Connection
Wireless LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
Econo Mode
Power consumption of the system is limited to prevent tripping your circuit breaker.
Contact a Daikin Sales Engineer
A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
