Designer Wall Mounted (CTXJ-T)

Refrigerant R32

Daikin multi-split indoor units include wall-mounted, duct-connected and ceiling-mounted cassette types. The wide lineup helps you achieve the interior design as well as the cooling and heating you want. These series also have capacities from 2.0 right up to 9.5 kW class. It is so easy to choose the right unit for every room in your home.

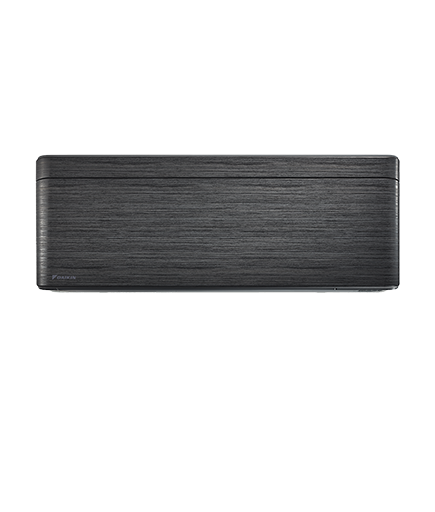

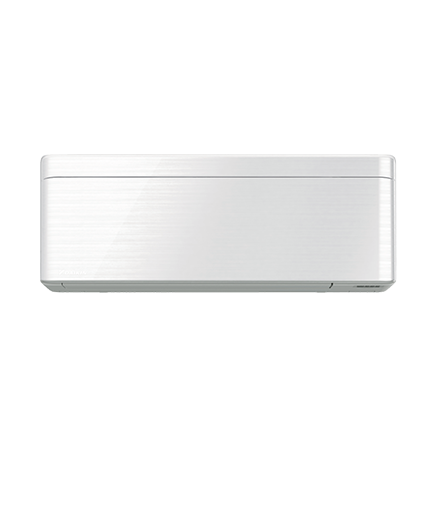

The designer look wall mounted CTXJ-T indoor units are engineered with the latest technology, built-in Wi-Fi connectivity and slim depth of just 185 mm. The units are both stylish and elegant, featuring distinctive moulded corners which allow them to blend seamlessly into any modern home. Each unit is available in White Hairline or Black Wood finish.

CTXJ-T Brochure here

...

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
CTXJ25TVMAW 2.5 - 2.5 177 295 798 185 11
CTXJ35TVMAW 3.5 - 3.5 190 295 798 185 11
CTXJ50TVMAW 5.0 - 5.0 218 295 798 185 11
CTXJ60TVMAW 6.0 - 6.0 243 295 798 185 11
CTXJ25TVMAK 2.5 - 2.5 177 295 798 185 11
CTXJ35TVMAK 3.5 - 3.5 190 295 798 185 11
CTXJ50TVMAK 5.0 - 5.0 218 295 798 185 11
CTXJ60TVMAK 6.0 - 6.0 243 295 798 185 11

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Heavy Duty Purification

Daikin's Flash Streamer Technology offers heavy duty air purification. The high speed electron discharge destroys bacteria, viruses, mould and allergens at a much higher speed than most conventional air filters, leaving your air safe to breathe.

...
Vertical Airflow (Heating)

When heating starts, the indoor unit's wide airflow delivers warm air to the corners of a room as well its floor. Soon after, vertical airflow starts to send warm air along the walls and floor. This prevents unpleasant drafts and increases comfort at floor level.

...
Intelligent Eye (Comfort & Auto Energy Saving)

A Combination of Comfort Airflow Mode and Intelligent Eye directs airflow away from people to avoid drafts. If there is no movement in a room for 20 minutes, Intelligent Eye automatically raises/lowers the set temperature by approximately 2°C to save energy.

Controller Features

... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Holiday Mode

Deviates from your normal schedules to your select holiday operation schedule.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
