Ducted - Mid Static (FMA-R)

Refrigerant R32

Daikin multi-split indoor units include wall-mounted, duct-connected and ceiling-mounted cassette types. The wide lineup helps you achieve the interior design as well as the cooling and heating you want. These series also have capacities from 2.0 right up to 9.5 kW class. It is so easy to choose the right unit for every room in your home.

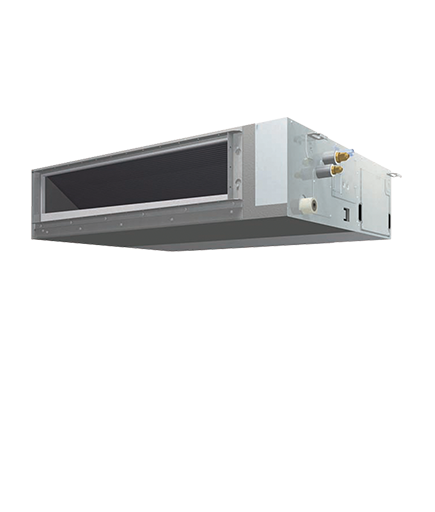

The duct-connected type can be hidden inside the ceiling to create a clean exterior. It is suitable for living rooms with shallow tray ceilings or areas requiring a discreet appearance. Low and middle range external static pressure models are suitable for both uses, providing excellent design flexibility.

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
FMA50RVMA * 5.0 - 5.0 300 245 1000 800 37
FMA60RVMA * 6.0 - 6.0 300 245 1000 800 37
FMA71RVMA * 7.1 - 7.1 383 245 1000 800 37

*Remote controllers are not included in CDXP-RVMA (Remote Controller - BRC086A11), CDXM-RVMA (Remote Controller - BRC073A4) and FMA-RVMA (Remote Controller - BRC1E63). These are purchased separately.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
Auto Fan Speed

Selecting this function ensures your system operates withmaximum efficiency and comfort without any further setting. After adjusting the fan speed to high to rapidly reach the set temperature, it switches to low. It then precisely maintains the room temperature using its inverter.

Compact Installation Height

Low external static pressure models are 200 mm high and require a space of just 240 mm between the drop ceiling and ceiling slab. With these compact measurements, any unit can easily be installed in even shallow tray ceilings.

Contact a Daikin Sales Engineer

A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.

Controller Features

... ... ... ... ... ...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

Backlit Display

Clear large, easy to read text with a intuitive interface.

Weekly Schedule Timer

Program on and off times to suit your lifestyle.

Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

Holiday Mode

Deviates from your normal schedules to your select holiday operation schedule.

Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
