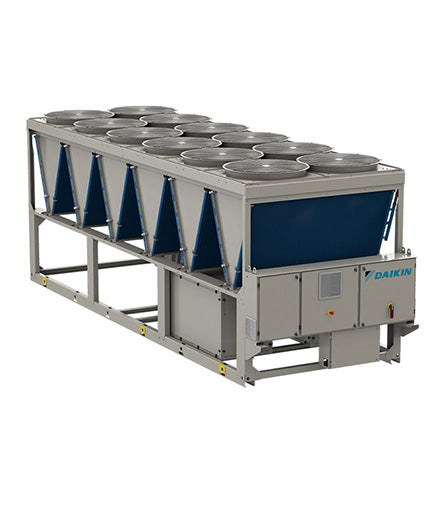

EWAT-B(C) (Chiller - Scroll Compressor)

Refrigerant R-32

The new generation of Daikin Air-cooled scroll chillers equipped with R-32 refrigerant.

Available in 2 efficiency and 3 sound levels.

The world's first air cooled chiller with R32 refrigerant and scroll compressor technology.

MicroTech 4 controller with superior control logic and easy interface.

...

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Description Sound Level Dimensions (IU) Weight
Outdoor Unit Sound Power - Cooling Sound Pressure Level @ 1m H W D (kg)
dB(a) dB(a) (mm) (mm) (mm) OU
EWAT B- SS EWAT310B-SSC1 - EWAT960B-SSC2 Silver Efficiency. Standard Sound | 400 V / 3ph / 50 Hz 94 - 99 90 - 95 2535 2238 2514 - 6928 2099 - 5412
EWAT B- SR EWAT310B-SRC1 - EWAT960B-SRC2 Silver Efficiency. Reduced Sound | 400 V / 3ph / 50 Hz 88 - 93 - 2535 2238 2514 - 6928 2099 -5196
EWAT B- XS EWAT250B-XSC1 - EWATC10B-XSC2 Gold Efficiency. Standard Sound | 400 V / 3ph / 50 Hz 94 - 100 90 -96 2535 2238 2514 - 9088 1986 - 6350
EWAT B- XR EWAT250B-XRC1 - EWATC10B-XRC2 Gold Efficiency. Reduced Sound | 400 V / 3ph / 50 Hz 84 - 90 - 2535 2238 2514 - 9088 1986 - 6350

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
R32 Refrigerant

Single component refrigerant with 66% lower ‘Global Warming Potential’ factor than R410A and lower refrigerant charge compared to R454B, providing one of the best Low GWP alternatives based on LCCP analysis.

...
Top Class Efficiency

Compact footprint available with EER up to 3.368 and IPLV up to 5.165 with comparable full load and part load efficiency to Variable Speed Screw Chillers.

...
Advanced Design

Consist of up to two truly independent refrigeration circuits with up to four compressors and up to eight fans per circuit paired with brazed plate and microchannel heat exchanger.

...
Noise Reduction

In-house developed innovative fan design increases airflow while delivering lower noise levels in conjunction with optional full metallic insulated soundproof compressor enclosure.

...
Hydronic Free Cooling

Hydronic free cooling model (EWFT) is optimised to deliver exceptional performance when operating in either part or full load.
