Four-way Ceiling Suspended (FXUQ-A)

Refrigerant R410A

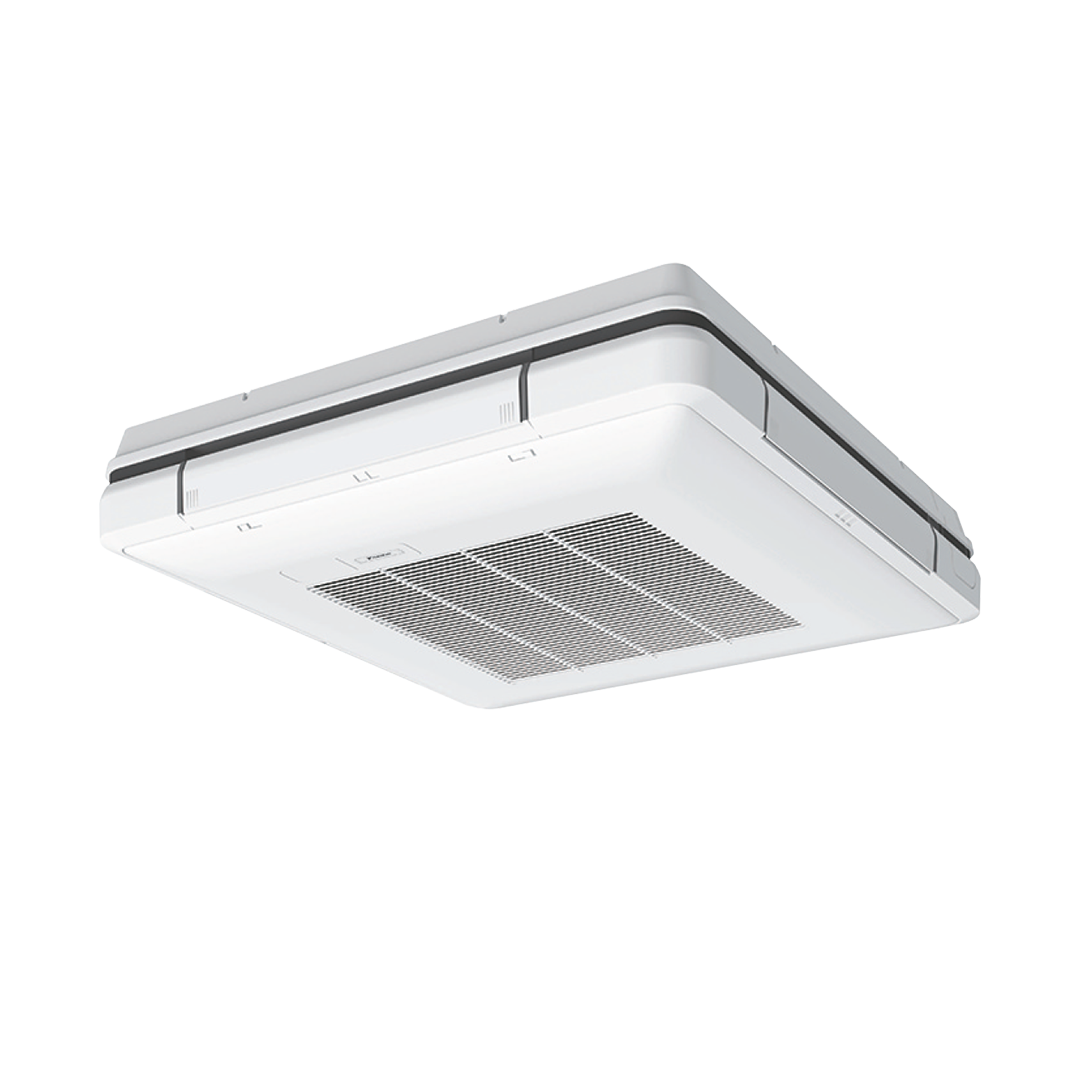

The FXUQ-AVEB series is a 4-way flow under ceiling cassette. Its unique contemporary design means that the unit does not require any ceiling cavity for installation unlike a traditional cassette. Furthermore it is packed with advanced features such as 5-stepped individual flap control, efficient DC fan motor and a built-in drain pump.

FXUQ-A Flyer here

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
FXUQ71AVEB 8.0 6.0 9.0 375 198 950 950 26
FXUQ100AVEB 11.2 8.1 12.5 517 198 950 950 27

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...

Airflow direction adjustment can be individually adjusted for each air discharge outlet to deliver optimal air distribution. 5 directions of airflow and auto-swing can be selected with wired remote controller BRC1E63.

Slim Design

Unit body and suction panel have round shapes that form a slim design, that fits various locations such as the ceilings without cavity. All models have a unified slim height of 198 mm that gives a similar impression even when models with different capacities are installed in the same area.

Drain Pump Accessory

Drain pump is equipped as standard accessory with 600 mm lift.

Flexible Installation

Depending on installation site requirements or room conditions, 2-way, 3-way and 4-way discharge patterns are available.
