High Capacity Inverter (FDYQN)

Refrigerant R410A

Spittable indoor unit to facilitate convenient installation. R410A Inverter Ducted Range available in 3 models.

Ducted Brochure here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

...

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FDYQN180LC-MY FDYQN180LCV1 RZQ180MY1 18.0 15.2 20.0 1160 470 1200 997 50 30 70 138
FDYQN200LC-MY FDYQN200LCV1 RZQ200MY1 19.5 19.5 22.4 1400 470 1400 997 50 30 85 138
FDYQN250LB-LY FDYQN250LBV1 RZQ250LY1 23.5 17.4 26.8 1400 500 1430 970 50 30 92 193

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Improved Energy Efficiency

Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.

...
Night Time Quiet Mode

Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

...
Australian Made

Indoor units are specifically designed and manufactured to Australian and New Zealand standards.

...

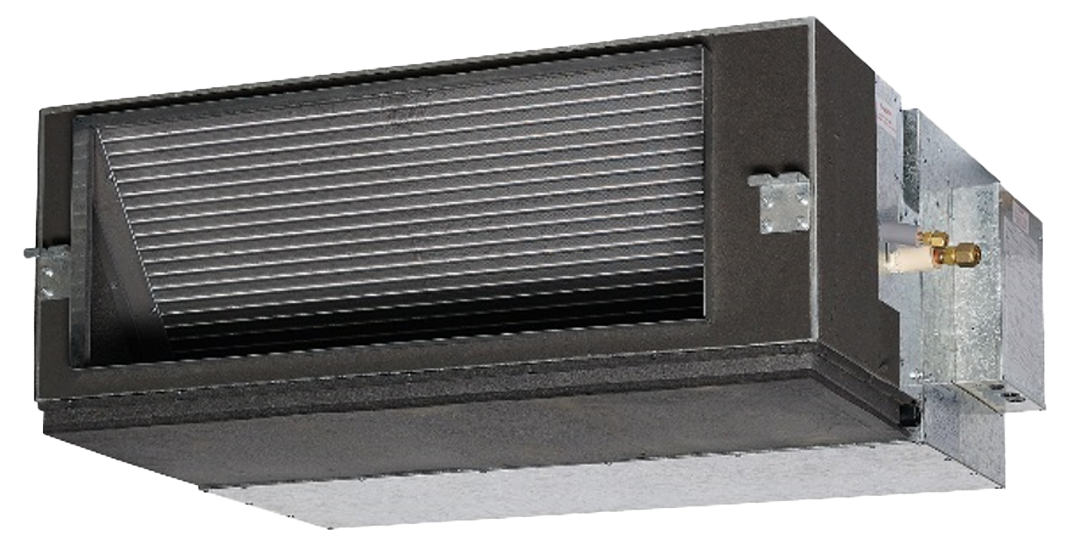

Compact Indoor Unit

Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.

...

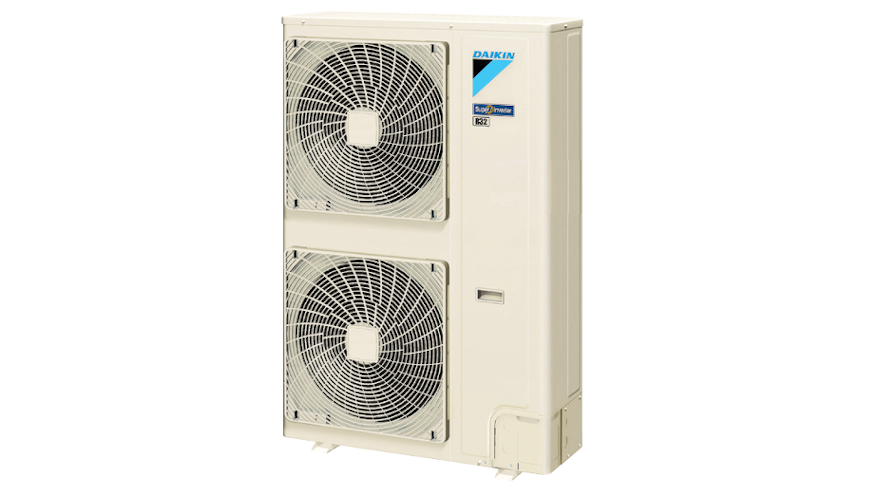

pace Saving Outdoor Unit

Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.

Controller Features

... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

...
7 Day Time Clock

Program on and off times, including when to open/close zones and the temperature sensor to use.

...
Automatic Mode Changeover

Allows the unit to automatically switch between heating and cooling for year round comfort.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Operation Mode Theming

Each operation is colour-coded for easy association

...
Zone On / Off

Turn on or off the zones in your home (requires Zone Controller)

...
Enter Zone Names

Customize the name of the zones through your home. (Zone Controller Required)

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

Controller Features

... ... ... ...
...
2 Colours

Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.

...
Sleek Stylish Design

Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

...
User Friendly Interface

The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

...
Daikin App for Installer

Simplifies the advanced settings such as field settings and set point range.

...
Touch Operation

7” colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.

...
Two Versions

Both On/Off or Linear Control options available in either a 4 or 8 zone design. For details on these control methods, see brochure.

...
Optional Wireless Sensors

Wireless remote temperature sensors are available, ideal for homes with internal brick walls.

...
On/Off Timer

Program on and off times within the day to suit your needs.

...
Weekly Schedule Timer

Program on and off times, including when to open/close zones and the temperature sensor to use for On/Off Control option.

...
Eco Settings

Setpoint Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your system's energy consumption.

...
Touch Controllers

Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.

...
Q-Adapt Algorithm

The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.

...
Scalable Design

Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing

...
Individual Temperature Control

The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.

*All Controllers are optional & separately sold.
