Multi Lite Series

Refrigerant R32

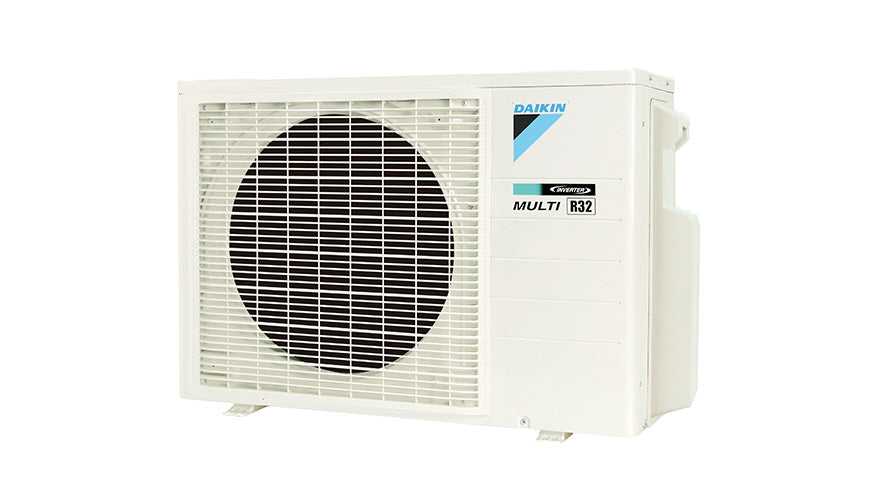

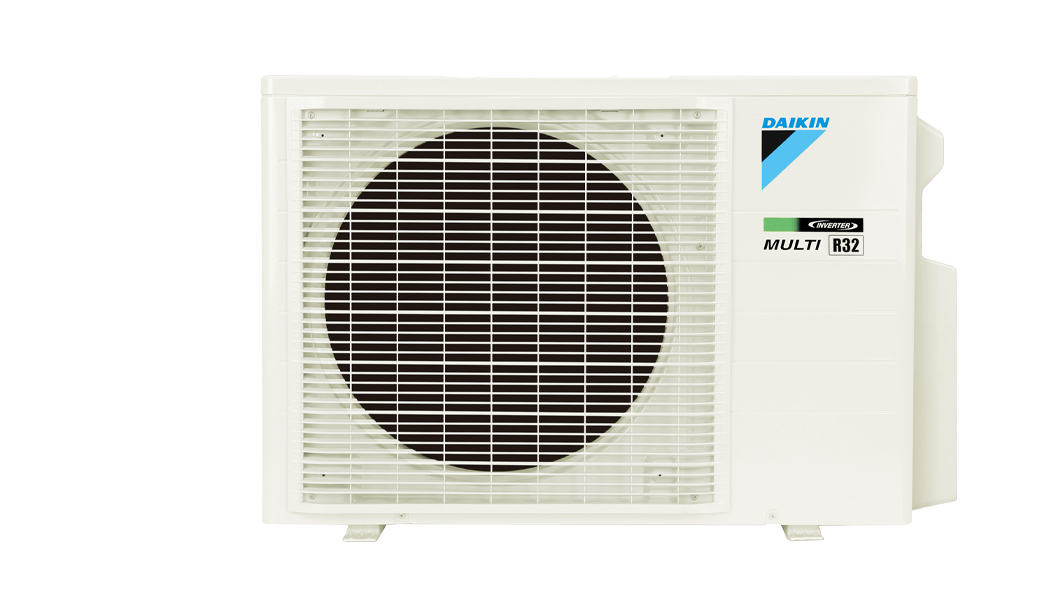

If you’re after air conditioning for two separate rooms, Daikin Multi Lite is the ideal solution. It takes only one outdoor unit to maintain comfort in both rooms.

Multi Lite Flyer here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

...

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit Outdoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU OU
- 2MXF70TVMA 7.0 - - - 595 845 300 - 47
CTXF25TVMA - 2.5 - 2.5 167 285 770 223 9 -
CTXF35TVMA - 3.5 - 3.5 177 285 770 223 9 -
CTXF50TVMA - 5.0 - 5.0 312 295 990 263 12 -

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
R32 Refrigerant

R32 is the next generation in refrigerants with 66% lower ‘Global Warming Potential Factor’ than R410A, providing less risk of harm to the environment.

...
Whisper Quiet

When in quiet mode, the indoor unit noise level drops to a whisper quiet 19dBA (25 Class Model). You won't even notice that it's on.

...
Lifestyle Convenience

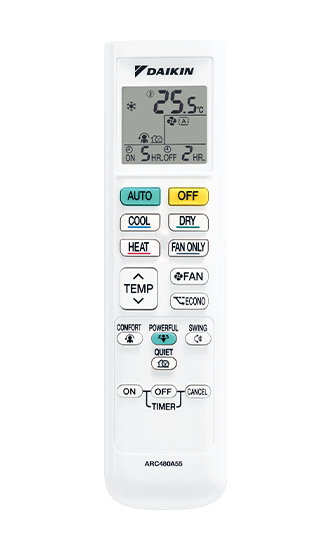

Features a simplified backlit wireless remote controller with precision temperature set point adjustment in 0.5°C increments and a built-in count up-down ON/OFF timer for convenient set and forget operations.

...
Compact Size

Housed in a compact indoor casing for easier installation.

...
Coanda Airflow

Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

...
R32 Refrigerant

R32 is the next generation in refrigerants with 66% lower ‘Global Warming Potential Factor’ than R410A, providing less risk of harm to the environment.

...
Lite Series Indoors

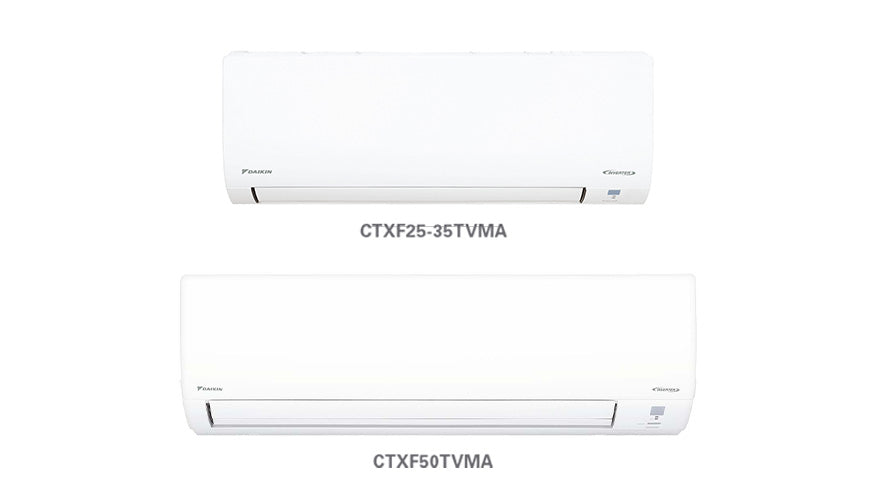

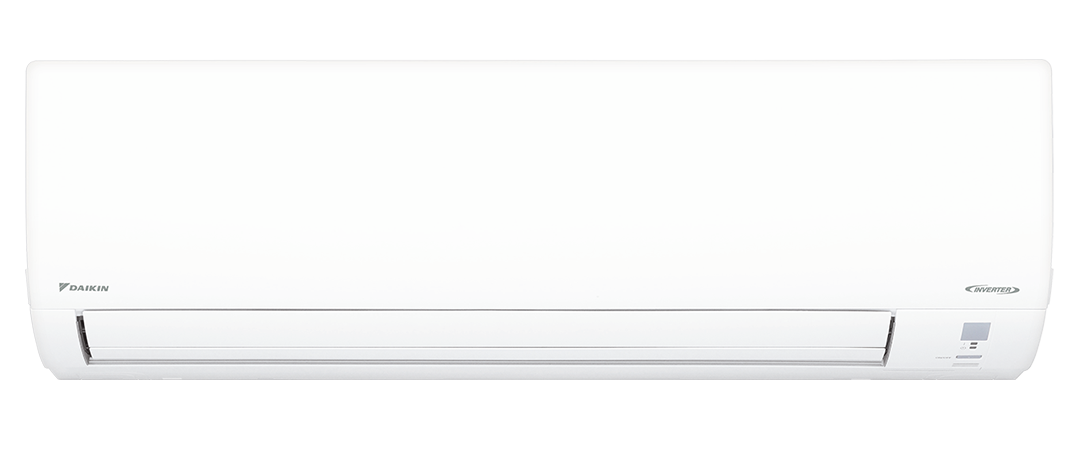

Indoor unit design is based on the Lite Series split system, harnessing all features and specifications and available in 25, 35 and 50 Class models.

...
Connectability

Up to two wall mounted indoor units can be connected to Multi Lite with a maximum combination of 25 + 50 Class.

...
Energy Efficient

With simultaneous operation of both indoor units, Multi Lite is still able to achieve EERs of up to 3.72 & COPs of up to 4.67 (25 & 50 Class indoor unit combination).

...
Individual Comfort

Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants in the household at anytime. *User can select the unit to operate in either cooling or heating mode, not both cooling and heating simultaneously

...
Optional Wi-Fi Control

Each indoor unit can be fitted with Daikin’s optional Mobile Controller (BRP072C42) allowing you to control your system from anywhere, anytime.

Controller Features

... ... ... ...
...
On/Off Timer

Program on and off times within the day to suit your needs.

...
Quiet Mode

Operation sound levels are reduced by 2-3 dBA for quieter heating and cooling.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...
Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

Compatible Indoor Units

Here are some indoor units that are compatible with the Multi Lite Series outdoor unit

Contact a Daikin Sales Engineer

A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
