| Available in | 7 models |
| Refrigerant | R32 |

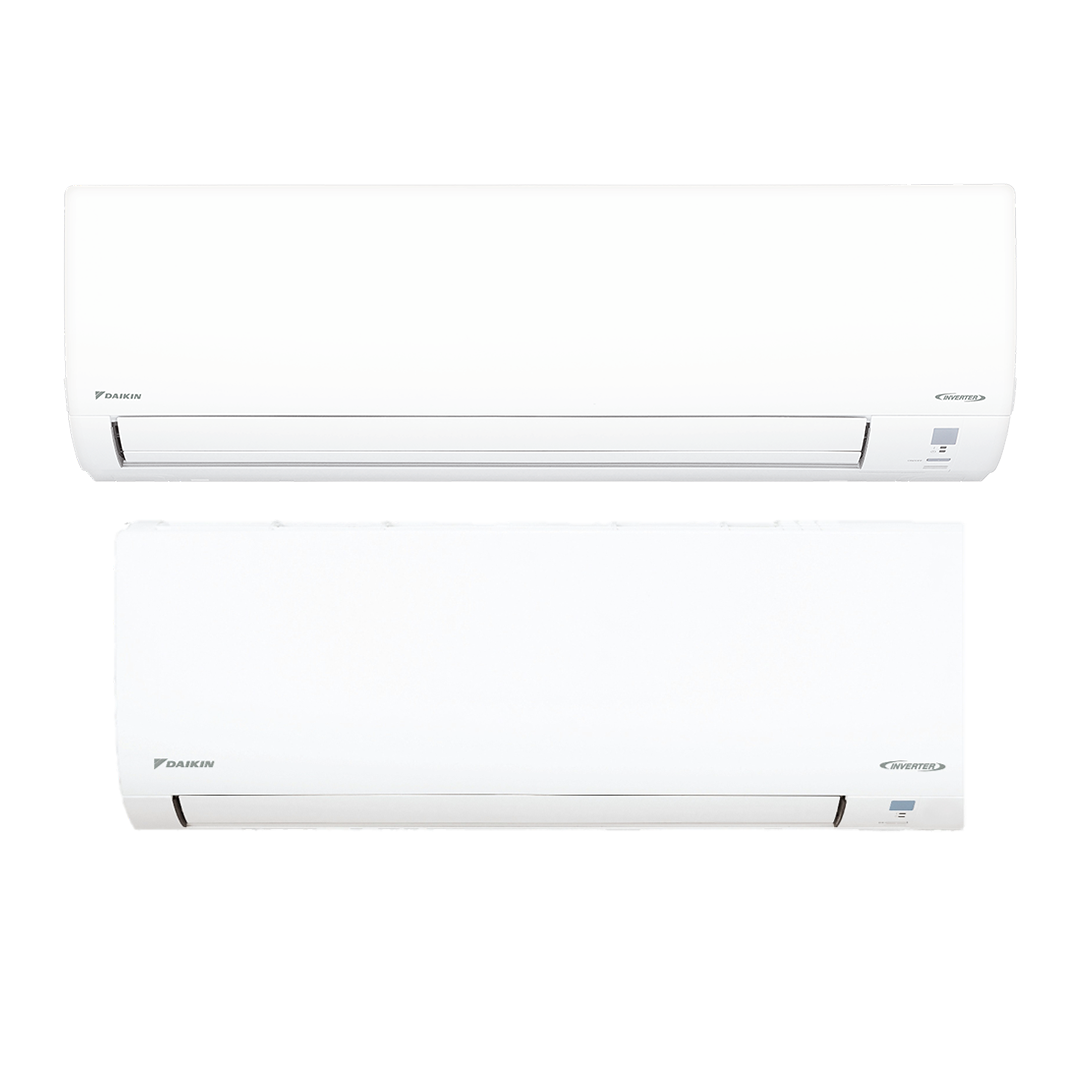

The New Lite Series delivers efficient heating and cooling, cleaner air and dependable performance for year-round comfort, with optional Wi-Fi giving you convenient control wherever you are, and a flexible design that makes installation easier in a range of spaces.
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications
| System Name | DK-BIM Library Links | Capacity | Air Flow (UI) | Dimensions | Max Pipe Length | Level Difference | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | TC | SC | HC | Cool | Heat | H | W | D | OU-IU | OU-IU | IU | OU | |
| (kW) | (kW) | (kW) | (l/s) | (l/s) | (mm) | (mm) | (mm) | (m) | (m) | (kg) | (kg) | |||
| NEWLITE20-NZ | FTXF20AVMA | RXF20AVMA | 2.0 | 1.91 | 2.5 | 151 | 160 | 285 | 770 | 223 | 20 | 15 | 9 | 27 |
| NEWLITE25-NZ | FTXF25AVMA | RXF25AVMA | 2.5 | 2.28 | 3.0 | 160 | 168 | 285 | 770 | 223 | 20 | 15 | 9 | 28 |
| NEWLITE35-NZ | FTXF35AVMA | RXF35AVMA | 3.5 | 2.81 | 3.7 | 173 | 188 | 285 | 770 | 223 | 20 | 15 | 9 | 28 |
| NEWLITE50-NZ | FTXF50AVMA | RXF50AVMA | 5.0 | 3.54 | 5.2 | 208 | 213 | 285 | 770 | 223 | 30 | 30 | 9 | 39 |
| NEWLITE60-NZ | FTXF60AVMA | RXF60AVMA | 6.0 | 4.90 | 6.5 | 321 | 350 | 295 | 990 | 263 | 30 | 30 | 12 | 39 |
| NEWLITE71-NZ | FTXF71AVMA | RXF71AVMA | 7.1 | 5.07 | 8.0 | 326 | 356 | 295 | 990 | 263 | 30 | 30 | 13 | 52 |
| NEWLITE80-NZ | FTXF80AVMA | RXF80AVMA | 7.8 | 5.81 | 9.0 | 323 | 361 | 295 | 990 | 263 | 30 | 30 | 13 | 56 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Energy Performance
More comfort, less energy use. New compressor technology delivers top-tier efficiency, helping reduce power bills while keeping your home comfortable
Additional Capacity
An additional 80-class capacity is now available, offering more options to suit your cooling and heating needs.
Whisper Quiet
Daikin’s New Lite Series is not just compact in size but also quiet in operations, featuring an Indoor Unit Quiet mode that reduces the indoor unit operational noise level down to 19dBA* to maintain room acoustics.
Mould Proof Operation
To support a cleaner and more comfortable living environment, the Mould Proof Operation helps keep the inside of the air conditioner dry after use, reducing conditions that may lead to mould formation.
Lizard and Bug Protection
Built for long-term reliability. A sealed electrical design helps prevent insects and lizards from getting inside, protecting key components such as the PCB, resulting in improved durability.
Flexible Installation
Fits where others can’t. With a 35° stop valve piping angle, installers have more room to work, making it easier to install in tight outdoor spaces and tricky locations. Indoor pipe tail length has been improved.
Controller Features
On/Off Timer
Program on and off times within the day to suit your needs.
Quiet Mode
Operation sound levels are reduced by 2-3 dBA for quieter heating and cooling.
Comfort Mode
Airflow is optimised to stream upwards during cooling and downwards during heating.
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
Econo Mode
Power consumption of the system is limited to prevent tripping your circuit breaker.
Direct Connection
For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.
Internet Connection
All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
Wi-Fi Connection
A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.
