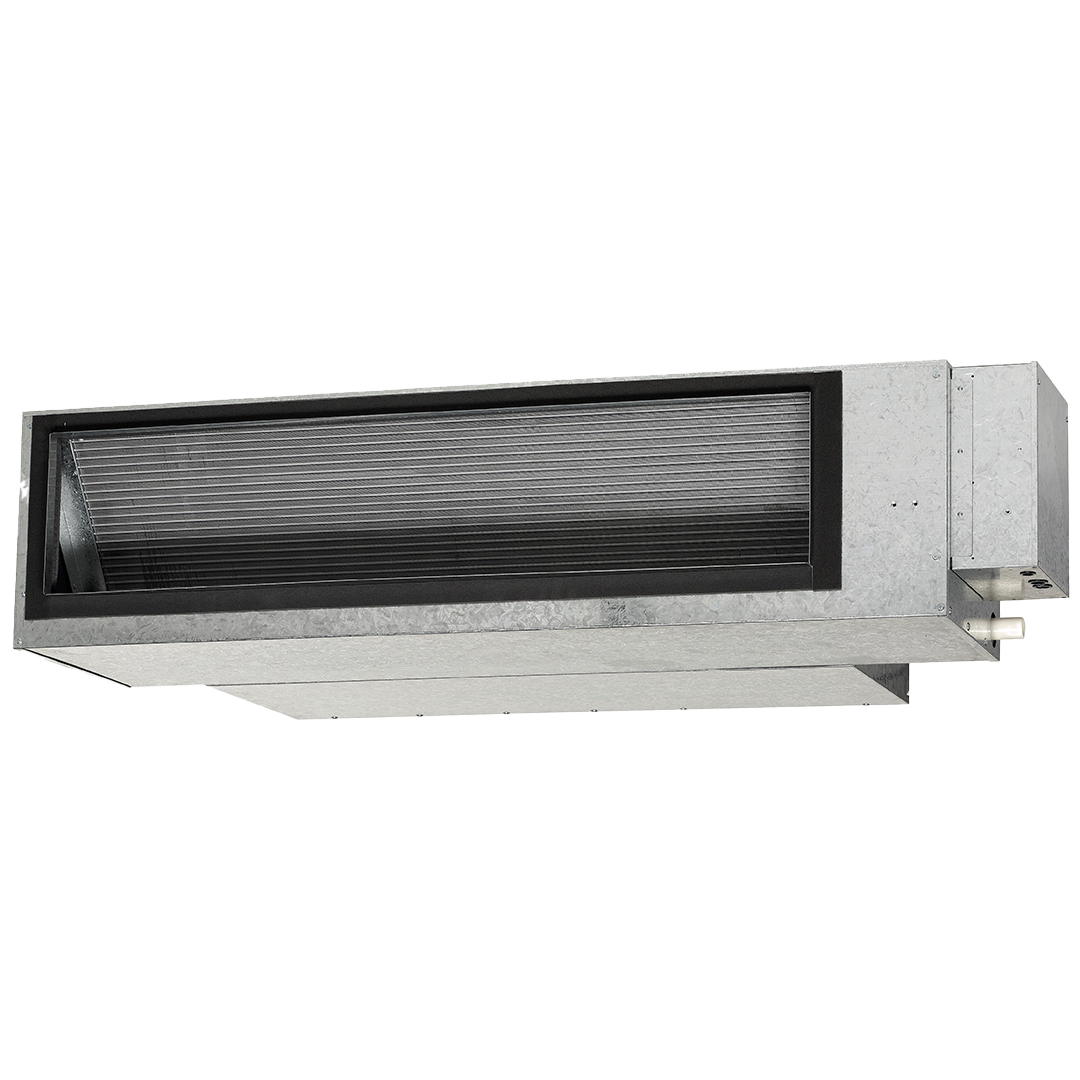

Premium Efficiency (FDYA)

Refrigerant R32

Daikin Premium Inverter provides superior comfort in next to no time.

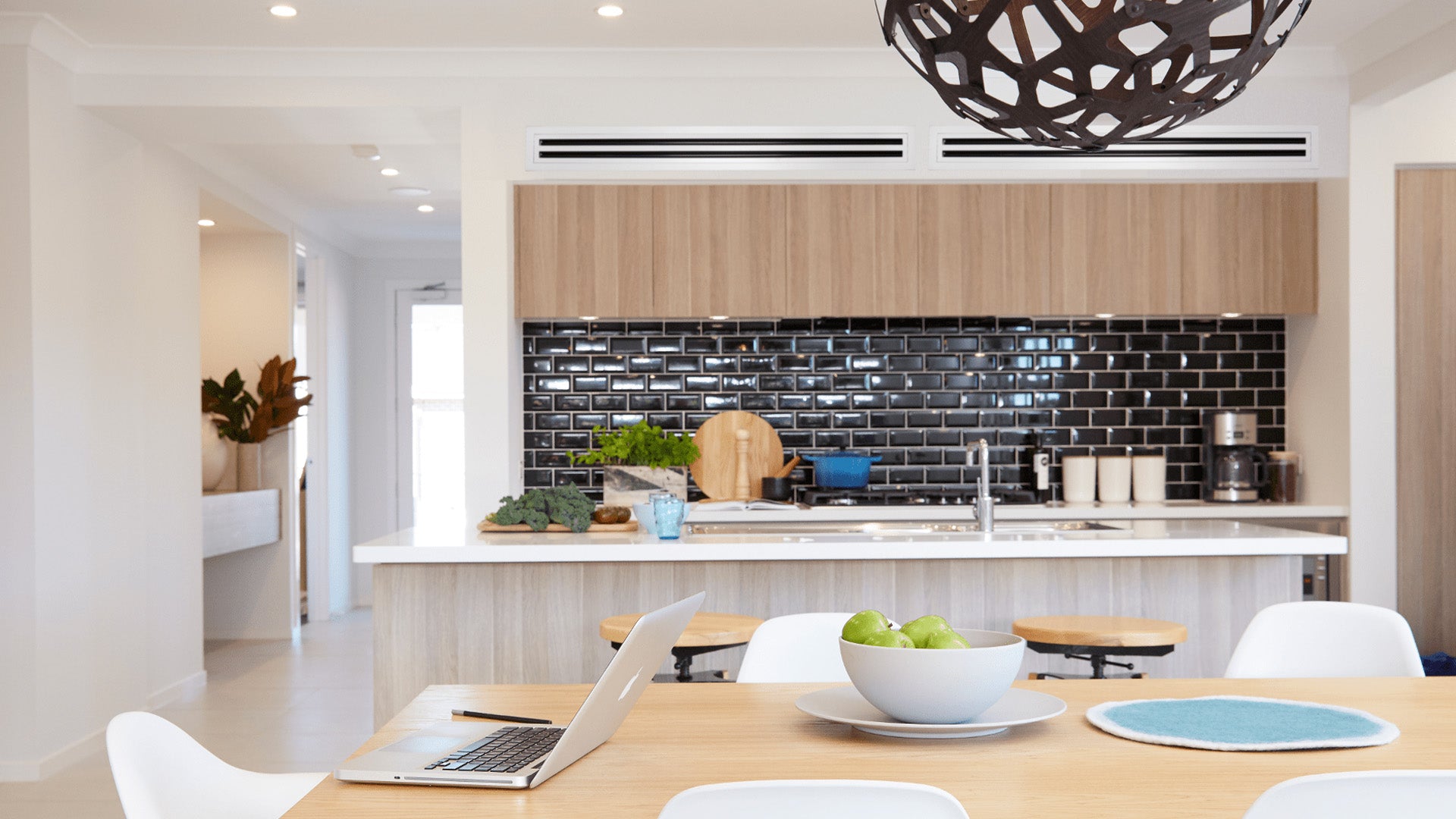

Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter Ducted range is perfect for providing discreet air conditioned comfort throughout your entire home

Ducted Brochure here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FDYA71A-CV FDYA71AV1 RZAS71CV1 7.1 5.6 7.5 566 300 1210 900 75 30 40 69
FDYA85A-CV FDYA85AV1 RZAS85CV1 8.5 6.8 10.0 600 300 1210 900 75 30 41 78
FDYA100A-CV FDYA100AV1 RZAS100CV1 10.0 8.2 12.5 800 300 1210 900 75 30 46 93
FDYA125A-CV FDYA125AV1 RZAS125CV1 12.5 9.8 15.0 840 360 1520 935 75 30 56 93
FDYA140A-CV FDYA140AV1 RZAS140CV1 16.0 12.1 18.0 1120 400 1505 380 75 30 60 99
FDYA160A-CV FDYA160AV1 RZAS160CV1 16.0 12.1 18.0 1120 400 1505 380 75 30 60 99

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Industry Leading Energy Performance

Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.

...
Night Time Quiet Mode

Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

...
Australian Made

Indoor units are specifically designed and manufactured to Australian and New Zealand standards.

...
R22 Retrofit Capability

Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).

...
Increased Operation Limits

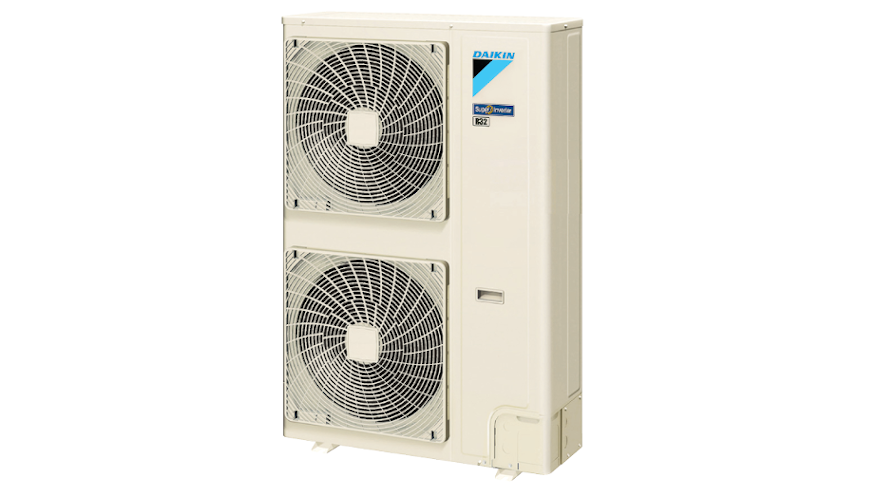

The refrigerant cooled PCB technology incorporated in the outdoor unit enables continuous operations up to 50°CDB ambient.

...
Heating Focus Option

Heating Focus models are available from 18.0-24.0kW with improved heating performance, ideal for cold climates in New Zealand.

Controller Features

... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...

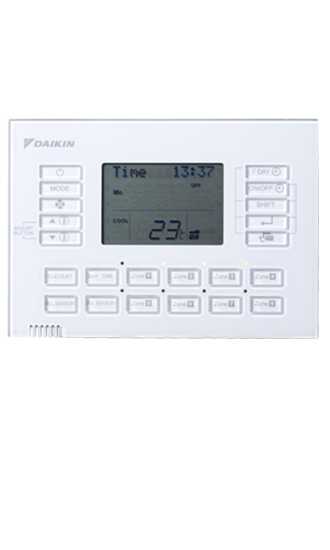

Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

...
7 Day Time Clock

Program on and off times, including when to open/close zones and the temperature sensor to use.

...
Automatic Mode Changeover

Allows the unit to automatically switch between heating and cooling for year round comfort.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Operation Mode Theming

Each operation is colour-coded for easy association

...
Zone On / Off

Turn on or off the zones in your home (requires Zone Controller)

...
Enter Zone Names

Customize the name of the zones through your home. (Zone Controller Required)

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

Controller Features

... ... ... ...
...
2 Colours

Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.

...
Sleek Stylish Design

Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

...
User Friendly Interface

The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

...
Daikin App for Installer

Simplifies the advanced settings such as field settings and set point range.

...
Touch Operation

7” colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.

...
Two Versions

Both On/Off or Linear Control options available in either a 4 or 8 zone design. For details on these control methods, see brochure.

...
Optional Wireless Sensors

Wireless remote temperature sensors are available, ideal for homes with internal brick walls.

...
On/Off Timer

Program on and off times within the day to suit your needs

...
Weekly Schedule Timer

Program on and off times, including when to open/close zones and the temperature sensor to use for On/Off Control option.

...
Eco Settings

Setpoint Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your system's energy consumption.

...
Touch Controllers

Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.

...
Q-Adapt Algorithm

The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.

...
Scalable Design

Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing

...
Individual Temperature Control

The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.

*All Controllers are optional & separately sold.

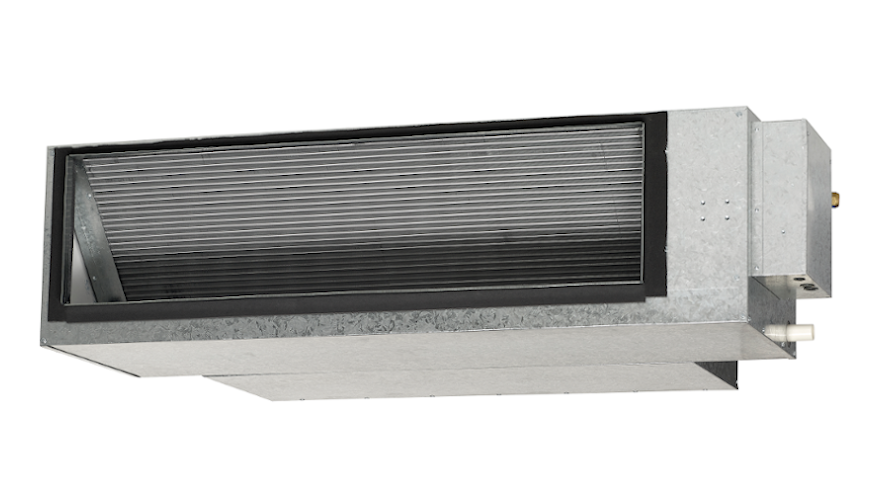

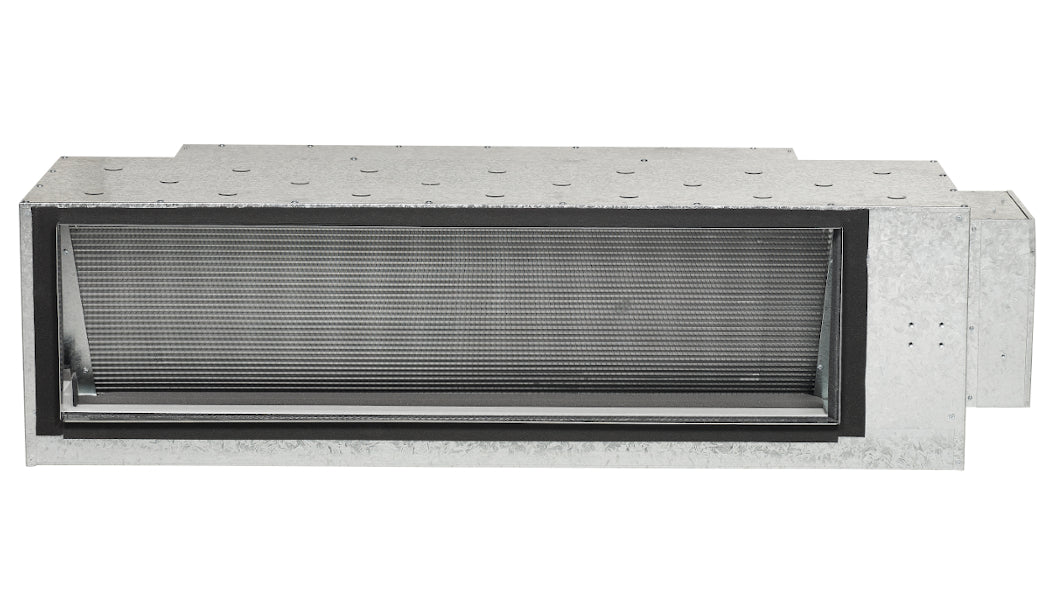

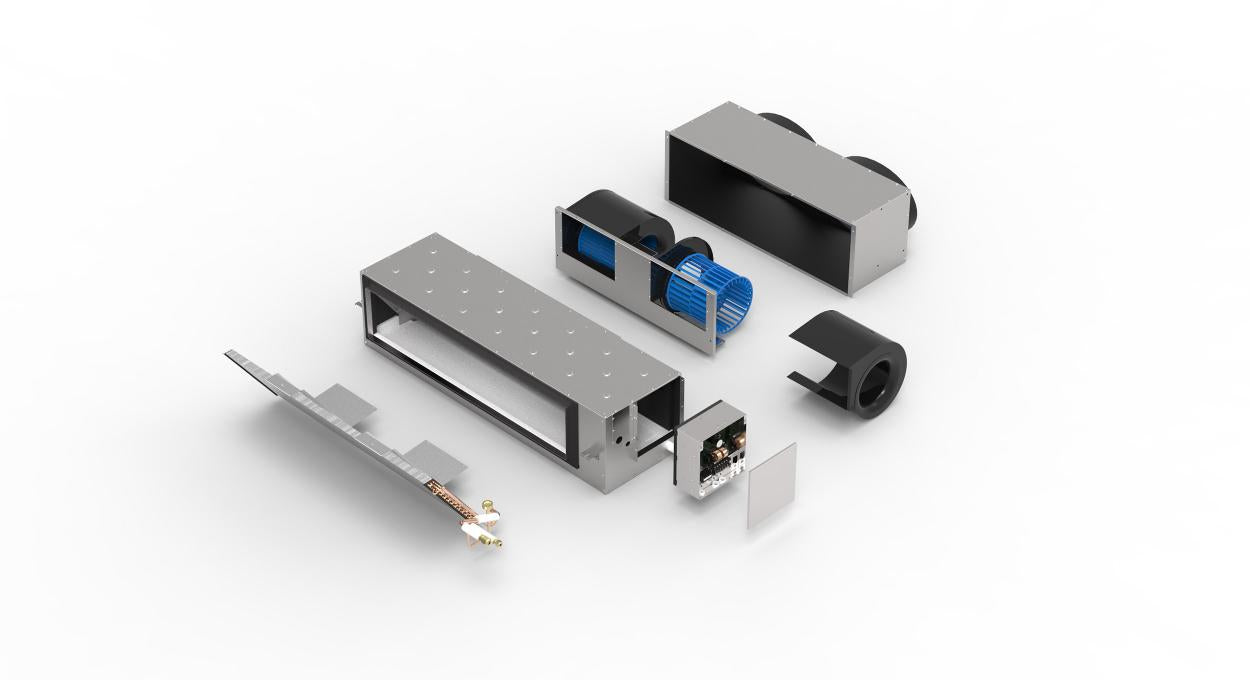

PREMIUM INVERTER DUCTED Technology

1Indoor Heat Exchanger

Our new indoor heat exchangers have been designed to deliver maximum capacity output in a compact casing size. Through the use of cutting edge technologies, our indoor heat exchangers utilise Ø5mm copper pipes to ensure heat is removed from your home efficiently.

2Enhanced Reliability

Designed for New Zealand summer. The indoor unit fail safe logic regulates the fan speed on start-up when roof temperatures are at an extreme for enhanced reliability.

3DC Fan Motor

Daikin indoor units are equipped with a high efficiency DC fan motor. By utilising high power permanent magnets instead of the induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.

4Sirocco Fan

Daikin’s ducted units are fitted with light weight single injection moulded Sirocco Fans. These fans feature an aerodynamic fan blade design which reduces turbulence for a more efficient and quieter airflow delivery.
