| Refrigerant | R-1233zd |

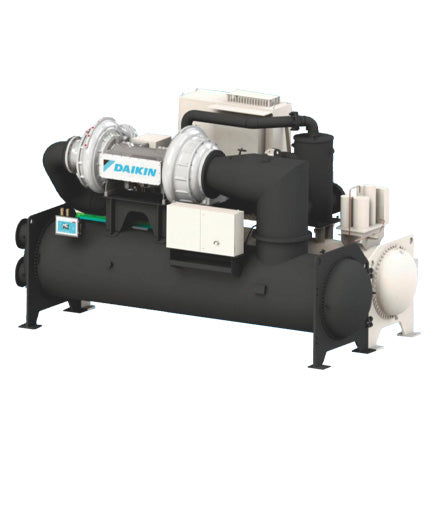

Daikin has successfully integrated cutting-edge technology with water-cooled chillers, delivering exceptional performance. Allow us to introduce the next-generation Oil-Free Magnetic Bearing Chiller, featuring HFO Refrigerant, R-1233zd (E), which boasts an incredibly low global warming potential (GWP). This refrigerant underscores our dedication to offering industry-leading eco-friendly products, minimizing carbon dioxide emissions and protecting our environment.
Technical Specifications / Documents
| (BIM) Engineering Data Links | Cooling Performance | Cooling Capacity | Dimensions | Weight | |||
|---|---|---|---|---|---|---|---|
| Outdoor Unit | Cooling Capacity | Power Input | COP | Height | Width | Length | Operating Weight |
| kW | kW | kW/kW | mm | mm | mm | kg | |
| ZUWV High Efficiency Magnetic Bearing Centrifugal Compressor (AHRI Standard Condition - 400V / 3P / 50Hz) | |||||||
| WMTCV50BSSB3G/F3914-QU-2/C3014-GP-2 | 1407 | 194.4 | 7.236 | 2886 | 2532 | 5055 | 14545 |
| WMTCV50BSSB3G/F4214-QU-2/C3014-GP-2 | 1407 | 194.2 | 7.246 | 2886 | 2532 | 5055 | 15325 |
| WMTCV50BSSB3G/F3914-PU-2/C3314-GP-2 | 1758 | 244.1 | 7.201 | 2886 | 2532 | 5055 | 16019 |
| WMTCV50BSSB3G/F4514-QU-2/C3314-JP-2 | 1758 | 244.0 | 7.205 | 2886 | 2532 | 5055 | 17059 |
| WMTCV50BSSB3G/F4214-PU-2/C3314-JP-2 | 2110 | 313.9 | 6.723 | 2886 | 2532 | 5055 | 16570 |
| WMTCV50BSSB3G/F4514-PU-2/C3314-JP-2 | 2110 | 313.2 | 6.738 | 2886 | 2532 | 5055 | 17519 |
| WMTCV80BSSC5G/F4814-QU-2/C3314-JP-2 | 2462 | 343.5 | 7.168 | 3437 | 2820 | 5265 | 18102 |
| WMTCV80BSSC5G/F4814-PU-2/C3314-EP-2 | 2462 | 340.6 | 7.229 | 3437 | 2820 | 5265 | 18912 |
| WMTCV80BSSC5G/F4814-QU-2/C3314-EP-2 | 2813 | 396.0 | 7.104 | 3437 | 2820 | 5265 | 18833 |
| WMTCV80BSSC5G/F5114-PU-2/C3614-GP-2 | 2813 | 395.7 | 7.109 | 3467 | 2982 | 5376 | 21587 |
| WMTCV80BSSC5G/F5114-QU-2/C3314-EP-2 | 3165 | 461.9 | 6.852 | 3467 | 2982 | 5376 | 20204 |
| WMTCV80BSSC5G/F5414-QU-2/C3614-EP-2 | 3165 | 459.8 | 6.883 | 3467 | 2982 | 5376 | 23323 |
| WMTCV50BSSB3F/F4214-DU-2/C3314-BP-2 | 1759 | 243.9 | 7.210 | 2884 | 2533 | 5055 | 14230 |
| WMTCV80BSSB3F/F4814-BU-2/C3614-BP-2 | 2814 | 395.6 | 7.112 | 3616 | 2907 | 5164 | 18356 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Superior Efficiency
Oil free system that results in eliminating oil contamination in refrigerant and heat transfer surfaces to achieve outstanding efficiency.
Environmentally Friendly
R-1233zd(E) is the next generation green HFO refrigerant with extremely low Global Warming Potential (GWP) value. According to ASHRAE Standard 34, it is classified as an “A1” refrigerant.
Outstanding Reliability
The chiller's features include a magnetic bearing drive system design that operates without the need for lubrication, high-accuracy sensors installed to detect shaft position frequently, the ability to run in generator mode during power outages, and the inclusion of additional backup bearings.
Lower Ownership Cost
Minimise energy cost by leveraging on the two-stage compressor.
AHRI Certification
Certified by Air Conditioning, Heating, and Refrigeration Institute (.AHRI) with AHRI Standard 550/590 (I-P) and AHRI Standard 551, 591 (SI)
