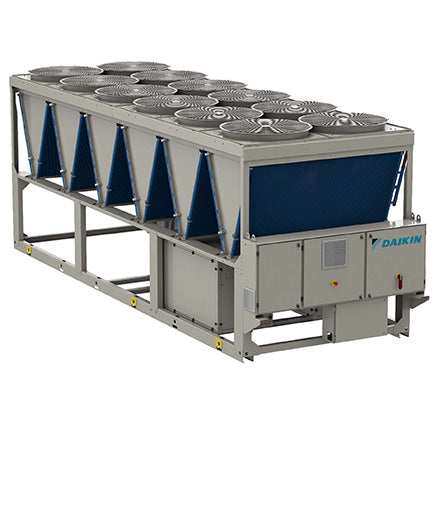

EWA(D)(H)(S)~TZ D (Chiller - Inverter Screw Compressors)

Refrigerant R1234ze / R513a / R134a

Now in generation IV. These cutting-edge models boast advanced technology, offering superior performance across a wider capacity range. Equipped with Daikin's latest compressor and innovative fan design, they ensure enhanced efficiency while occupying less space. With four efficiency tiers and three sound configurations, these chillers provide full flexibility to cater to diverse customer needs.

...

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Description Sound Level Dimensions (IU) Weight
Outdoor Unit Sound Power - Cooling Sound Pressure Level @ 1m H W D (kg)
dB(a) dB(a) (mm) (mm) (mm) OU
EWAH TZ-D BS EWAH235TZBSD1 - EWAHH15TZBSD2 Blue Efficiency. Standard Sound 98 - 97 93 - 99 2553 2238 2560 - 12280 2589 - 9462
EWAH TZ-D SS EWAH240TZSSD1 - EWAHH15TZSSD2 Silver Efficiency. Standard Sound 98 - 108 94 - 100 2553 2238 3640 - 13360 3076 - 9948
EWAH TZ-D XS EWAH220TZXSD1 - EWAHH13TZXSD2 Gold Efficiency. Standard Sound 97 - 105 90 - 97 2553 2238 2560 - 13360 2761 - 9913
EWAH TZ-D XR EWAH220TZXRD1 - EWAHH13TZXRD2 Gold Efficiency. Reduced Sound 97 - 105 - 2553 2238 2560 - 13360 2761 - 9913
EWAH TZ-D PS EWAH225TZPSD1 - EWAHC12TZPSD2 Platinum Efficiency. Standard Sound 97 - 103 91 - 96 2553 2238 3640 - 13360 3242 - 9893
EWAH TZ-D PR EWAH225TZPRD1 - EWAHC12TZPRD2 Platinum Efficiency. Reduced Sound 87 - 93 - 2553 2238 3640 - 13360 3242 - 9893
EWAD TZ-D BS EWAD275TZBSD1 - EWADH19TZBSD2 Blue Efficiency. Standard Sound 97 - 107 92 - 99 2553 2238 2560 - 13360 2677 - 12086
EWAD TZ-D SS EWAD285TZSSD1 - EWADH19TZSSD2 Silver Efficiency. Standard Sound 98 - 107 93 - 99 2553 2238 3640 - 13360 3164 - 12086
EWAD TZ-D XS EWAD295TZXSD1 - EWADH17TZXSD2 Gold Efficiency. Standard Sound 97 - 105 91 - 97 2553 2238 3640 - 13360 3335 - 12061
EWAD TZ-D XR EWAD295TZXRD1 - EWADH17TZXRD2 Gold Efficiency. Reduced Sound 87 - 94 - 2553 2238 3640 - 13360 3455 - 12181
EWAD TZ-D PS EWAD285TZPSD1 - EWADH15TZPSD2 Platinum Efficiency. Standard Sound 97 - 103 92 - 96 2553 2238 4720 - 13360 3863 - 12036
EWAD TZ-D PR EWAD285TZPRD1 - EWADH15TZPRD2 Platinum Efficiency. Reduced Sound 88 - 93 94 - 95 2553 2238 4780 - 13360 3983 -12156
EWAS TZ-D BS EWAS275TZBSD1 - EWASH19TZBSD2 Blue Efficiency. Standard Sound 97 - 107 92 - 99 2553 2238 2560 - 13360 2677 - 12086
EWAS TZ-D SS EWAS285TZSSD1 - EWASH19TZSSD2 Silver Efficiency. Standard Sound 98 - 107 93 - 99 2553 2238 3640 - 13360 3164 - 12086
EWAS TZ-D XS EWAS295TZXSD1 - EWASH17TZXSD2 Gold Efficiency. Standard Sound 97 - 105 91 - 97 2553 2238 3640 - 13360 3335 - 12061
EWAS TZ-D PS EWAS285TZPSD1 - EWASH15TZPSD2 Platinum Efficiency. Standard Sound 97 -103 92 -96 2553 2238 4720 - 13360 3863 - 12036

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Top Class Efficiency

Four efficiency tiers with 3 sound configurations providing full flexibility to meet customer needs.

...
Extended Operating Envelope

New TZ-D is the perfect solution for comfort applications as well as process and critical cooling thanks to the widest range of operating condition: Outdoor conditions: from -20°C up to +55°C. Supplied chilled fluid from -12°C up to +30°C.

...
Low Environmental Impact

The very low GWP of R1234ze (low direct emissions) combinedwith the reduced power consumption (low indirect emissions) result in the best Life Cycle ClimatePerformance (LCCP).

...
Outstanding Reliability

Each compressor is provided with a Variable Frequency Drive (VFD) installed on the compressor and cooled directly by the refrigerant. Daikin technology offer real independency from outdoor conditions (temperature, humidity, altitude, pollutions) and continuously operate in the most extreme conditions.

...
Fan Silent Mode

Units with EC motor fans offer a fan silent mode. This feature lets users set specific time bands to reduce fan rotation speed and minimize sound emission during nighttime hours. This results in quieter operation, with a reduction of approximately -4dB(A) depending on the unit model and operating conditions.

Range Overview

The IV generation of TZ chiller is available with 3 refrigerants

3 refrigerants:

  • R1234ze (EWAH)
  • R513A (EWAS)
  • R134a (EWAD)

All available in four efficiency tiers:

  • Blue (B-) (avg. EER = 2,9 ; avg. SEER = 4,7)
  • Silver (S-) (avg. EER = 3,1 ; avg. SEER = 5,5)
  • Gold (X-) (avg. EER = 3,4 ; avg. SEER = 6,0)
  • Platinum (P-) (avg. EER = 3,7 ; avg. SEER = 6,6)

Three sound configurations

  • Standard Noise
  • Standard Sound + option 76-b (compressor enclosure)
  • Reduced Sound
