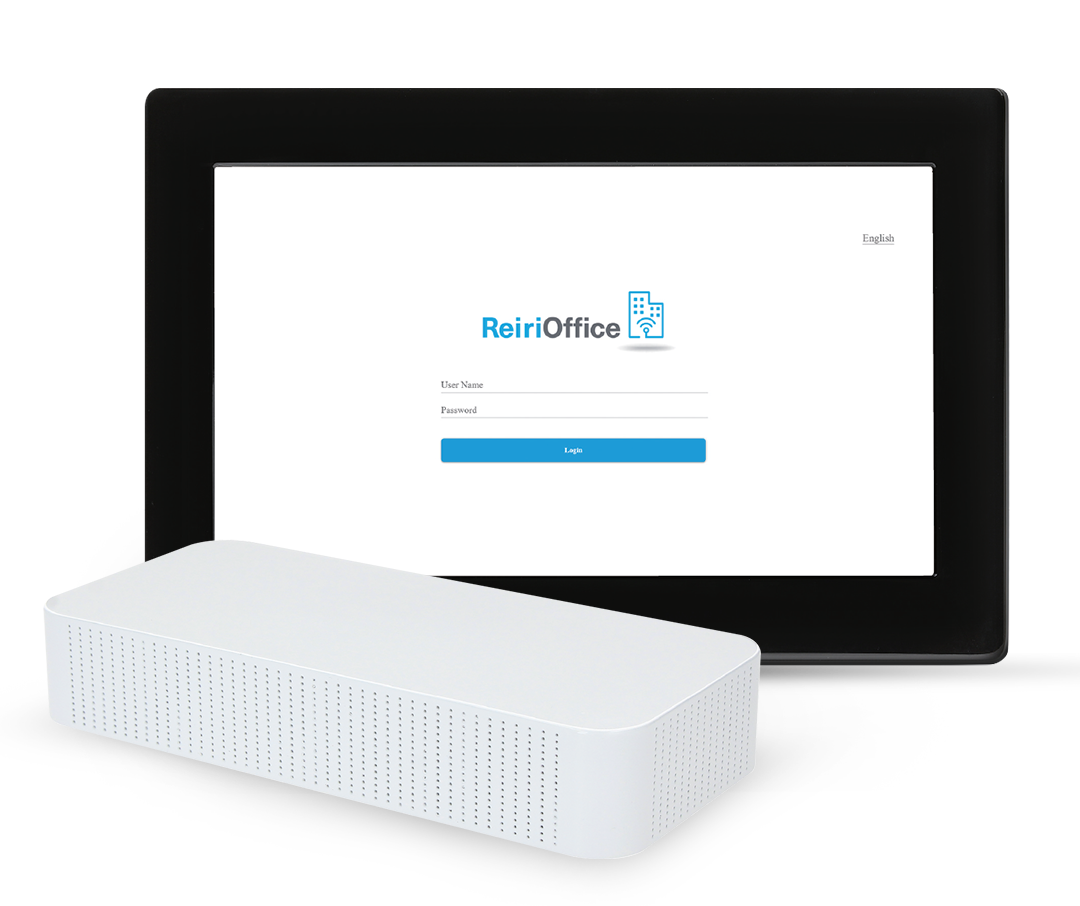

Reiri for Office

Available in Wi-Fi Controller

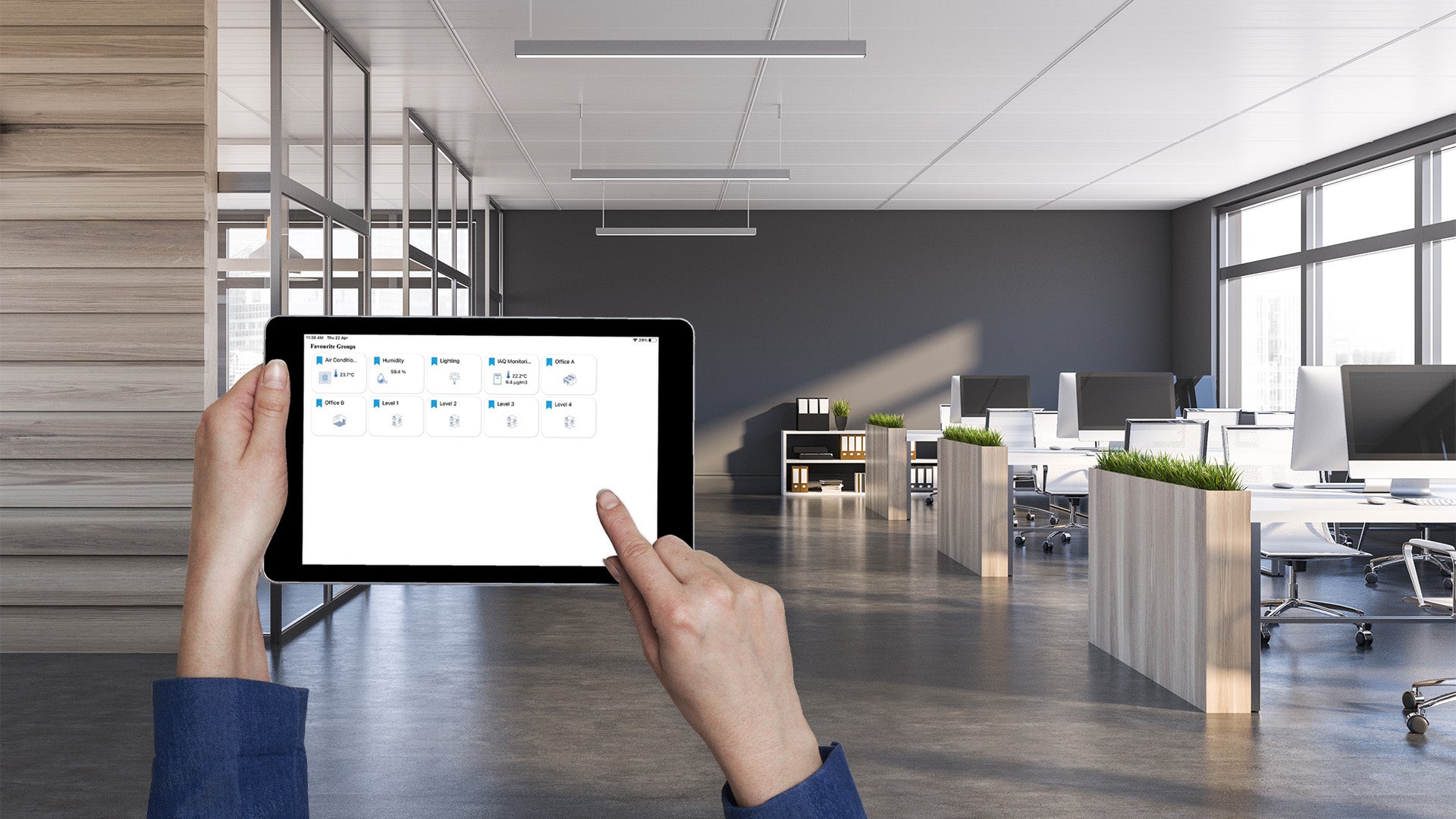

Reiri allows users to monitor and control the air conditioning system with a smartphone or tablet from anywhere. This smart control system ensures optimal comfort for occupants, increased operational efficiency and allows for the optimisation of energy consumption.

Ideal for commercial applications such as offices, retail, hospitality and education facilities.

Reiri for Office Flyer here

...

Technical Specifications / Documents

(BIM) Engineering Data Links Description
Indoor Unit
DCPF04 Touchscreen Controller

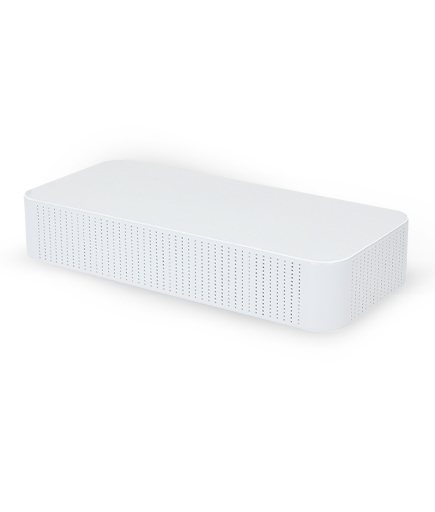

DCPF01 Reiri for Office
DCPF05 Controller Extension
DCPF10 Multi Extension

Controller Features

... ...
...
Many Unit Connections

Control up to 256 Indoors

...
WAGO

WAGO compatible

...
IAQ Sensor

IAQ sensor compatible

...
Smart Meter

Smart meter compatible

Other Features

  • ReiriOffice Extension – DCPF05 enables up to 8 local systems to be integrated
  • ReiriOffice Multisite – DCPF10 allows up to 10 sites to be managed
  • Compatible with WAGO (for fans, lights etc.) & SE Modbus smart meters*
  • Optional Reiri IAQ sensor (PM2.5, CO2, TVOC, temp. & humidity)
  • Operation is also available via online web browser
  • Functions include AC control/monitoring, scheduling and interlocking
  • Advanced features include data analytics, REM, PPD and push/email alerts
  • VRV, SkyAir & RA compatible wired centralised controller
  • Reiri apps available on Android (≥5.1) & iOS (≥12.0) devices
  • Google Assistant & Amazon Alexa enabled for ‘Reiri for Home’ app only

Operation Methods

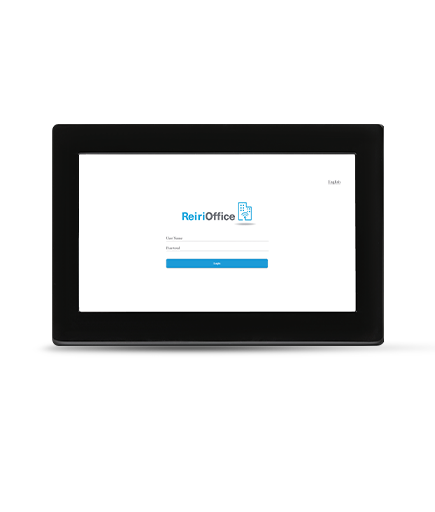

Touch Screen

REIRI OFFICE TOUCH ONLY

ReiriOffice Touch features a built-in 10” touchscreen running the GUI. Ideal for those wanting a fixed location for operation.

Android/OS App

AVAILABLE FOR ALL

All models feature operation via an Android/iOS app. The corresponding app is to be downloaded for each model.

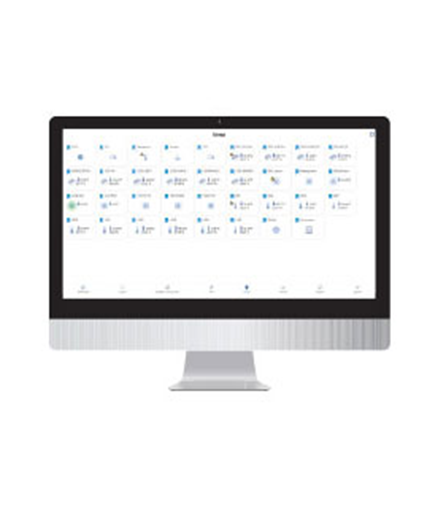

Windows App

AVAILABLE FOR ALL

Operation via Windows app is available (PC only)*.

*Download from Daikin Partner Portal or contact your account manager
