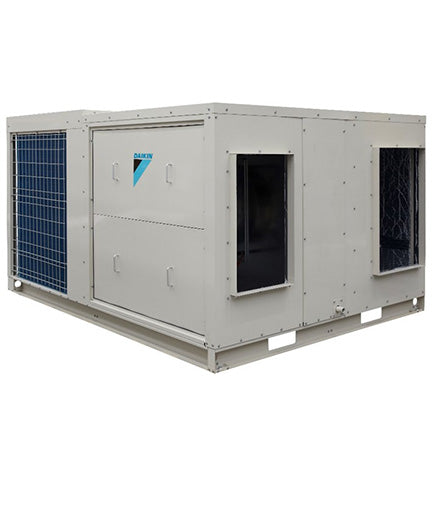

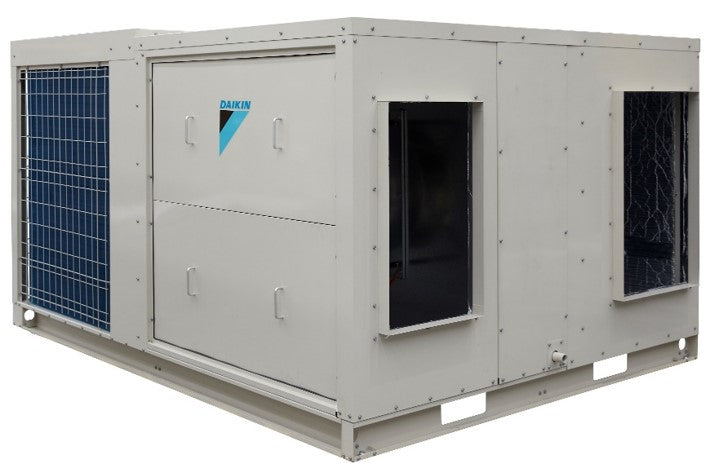

Daikin’s RT Series (UAYN-AFY1A) is designed and manufactured in Australia with emphasis on reliability and easy installation for commercial applications.
As part of the next generation R410A series, the UAYN-AFY1A offers cutting-edge features and improved performance. With a range of seven different model capacities, ranging from 350 to 840 Class (equivalent to 37.2 to 81.9kW).
With an Air Flow Range (AFR) spanning from 1950 to 4,580 liters per second (L/s). Additionally, it has an External Static Pressure (ESP) range of 210 to 400 pascals (Pa).
One of the most attractive features of the RT Series is its compact footprint, making it an ideal choice for those seeking to replace older R22 systems.
Rooftop - UAYN-AFV1A flyer here
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Built-in Demand Response (DRED)
Designed to enable electricity providers to reduce peak demand, when necessary, RT Series rooftop packaged units feature built-in DRED contacts.
Electronic Expansion Valve (EEV)
For precise control of refrigerant flow, RT Series is equipped with an EEV, enabling fast & accurate response to heat load changes.
Sequential Defrost Operation
The dual outdoor heat exchangers (HX) allow each HX to enter defrost cycle separately* for improved comfort as reduced heating capacity can still be provided to the indoor environment. *Only applicable when indoor fan is set to run during defrost (default setting), if fan set to off both heat exchangers will run defrost simultaneously
Engineered for Ease of Installation
The all-in-one IP44 rated electrical box allows quick and easy access to components such as power supply terminals, RT Touch Controller terminals, after-hours pushbutton contacts and DRED contacts.
Controller
*Can be extended up to 50m using field supplied cable (power: 2 core AWG 12-20 & comm.: 3 core AWG 20-22)

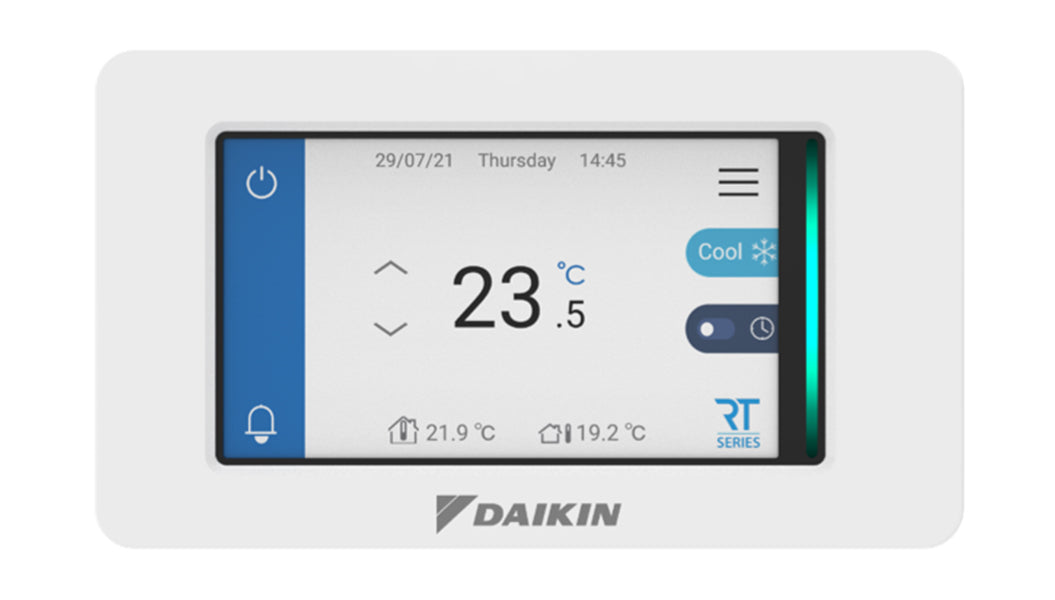

4.3" Resistive Touch Screen
4.3” resistive touch screen LCD controller (480 x 272 resolution)
Wall Mounted
Wall mounted: 88(H) x 152(W) x 32(D) mm
Flush Mounted
Flush mounted: 88(H) x 152(W) x 9(D) mm
Built-in operation Status LED
Check operation at a glance with built-in operation status LED
Multiple Features
User operation & service configuration available on the same controller
Wire Harness Included
Wire harness (15m) included for connection to rooftop packaged unit*

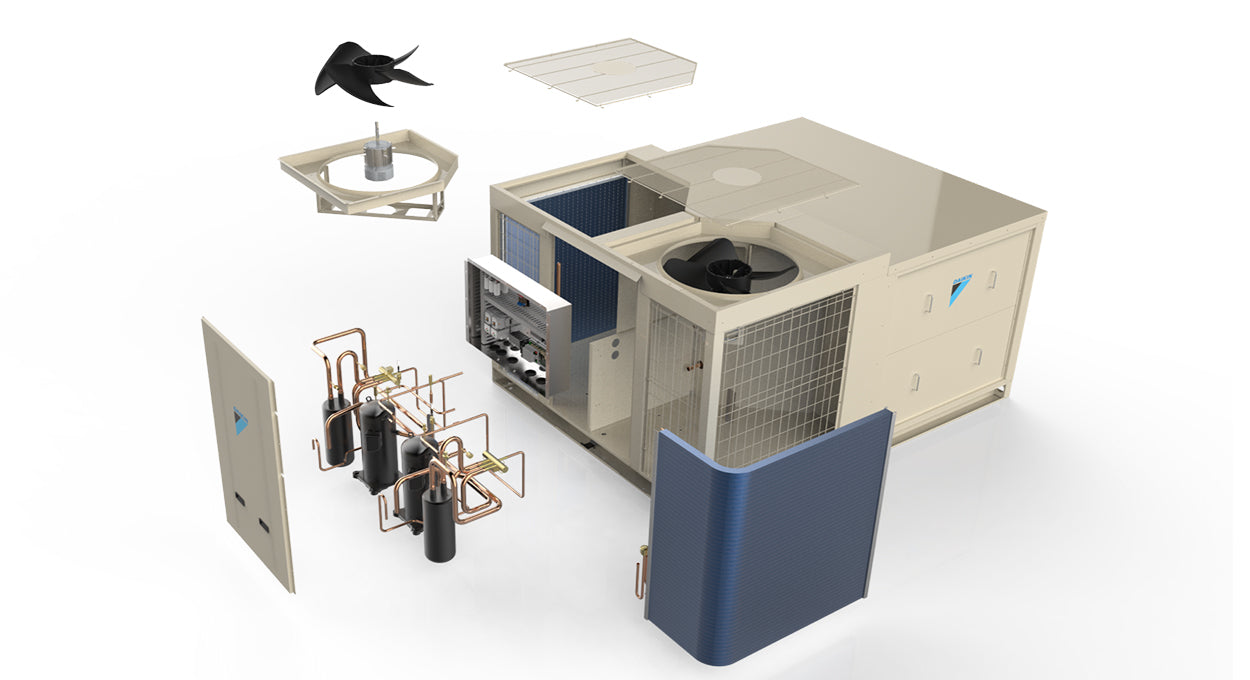

RT Series - Outdoor Unit Technology

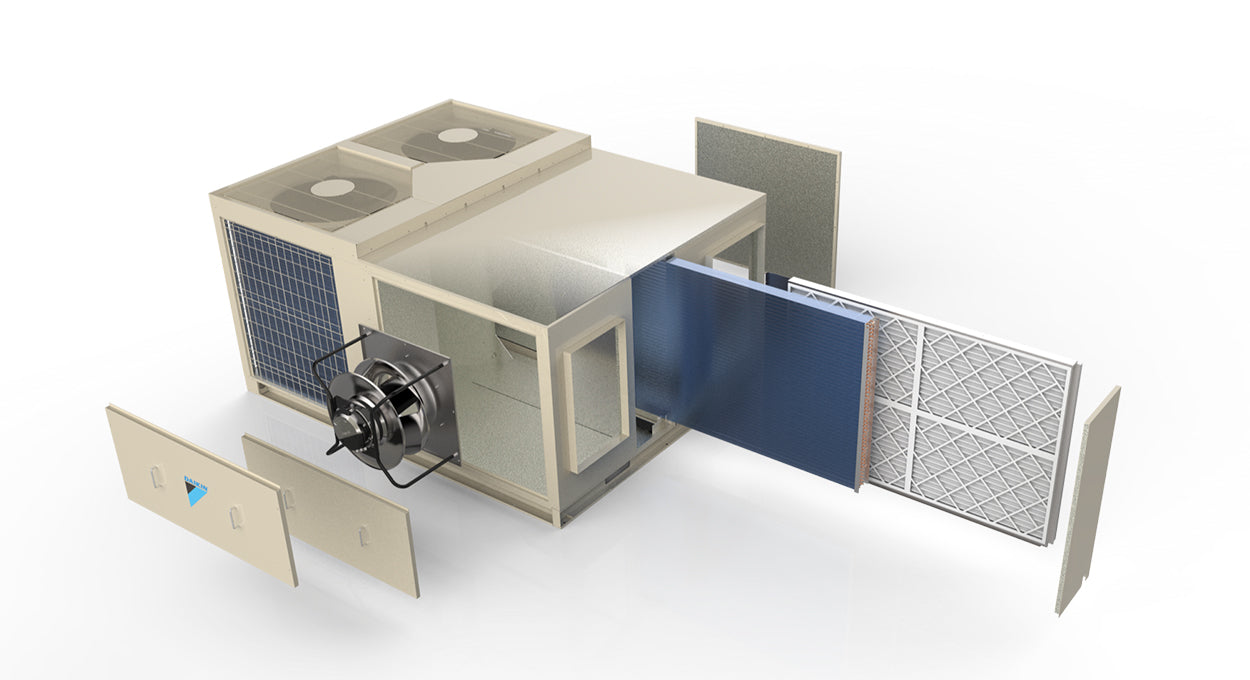

RT Series - Indoor Unit Technology
