| Refrigerant | R32 |

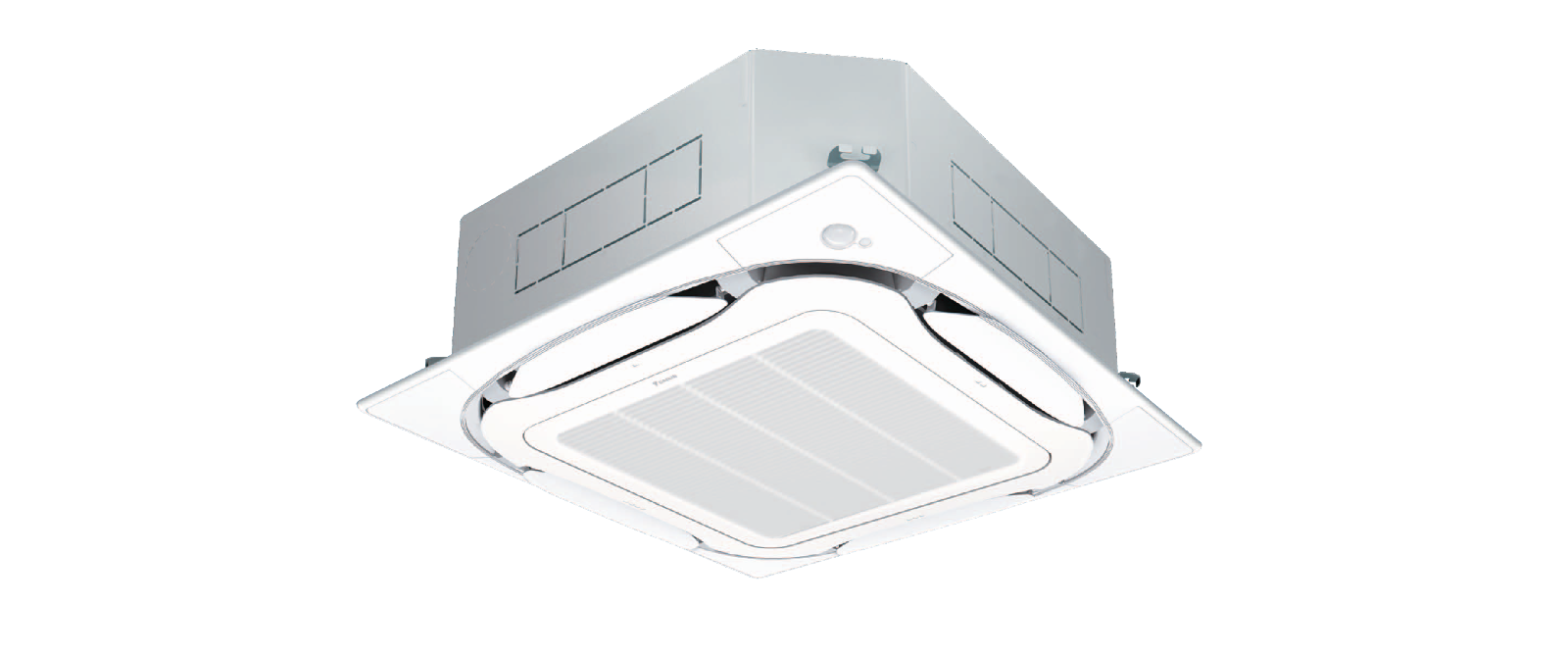

The SkyAir Round Flow Cassette utilises 360 degree airflow distribution to ensure even temperatures throughout the space, this provides a comfortable environment for building occupants all year round while also remaining discrete.
The Round Flow Cassette can be either paired with our Premium Inverter (RZAV) or Inverter (RZAC) condensers. The former offering building owners substantial operating efficiencies to help minimise operating costs. R22 retrofit capability is available for both condenser types allowing for a simplified cost effective replacement solution.
FCA Flyer here
Technical Specifications / Documents
| System Name | (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Max Pipe Length | Level Difference | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Indoor Unit | Outdoor Unit | OU-IU | OU-IU | (kg) | |||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | (mm) | (m) | IU | OU | ||||
| Standard Cassette R32 Single Phase | |||||||||||||
| FCA71CA-CCV | FCA71CAVMA | RZAC71CV1 | 7.1 | 5.6 | 8.0 | 383 | 256 | 840 | 840 | 50 | 30 | 22 | 45 |
| FCA85C-CCV | FCA85CVMA | RZAC85CV1 | 8.5 | 6.9 | 10.0 | 575 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA100C-CCV | FCA100CVMA | RZAC100CV1 | 10.0 | 7.8 | 11.2 | 575 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA125C-CCV | FCA125CVMA | RZAC125CV1 | 12.5 | 9.4 | 14.0 | 608 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA140C-CFV | FCA140CVMA | RZAC140FV1 | 14.0 | 10.4 | 16.0 | 608 | 298 | 840 | 840 | 50 | 30 | 26 | 96 |
| Standard Cassette R32 Three Phase | |||||||||||||
| FCA85C-CCY | FCA85CVMA | RZAC85CY1 | 8.5 | 6.9 | 10.0 | 575 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA100C-CCY | FCA100CVMA | RZAC100CY1 | 10.0 | 7.8 | 11.2 | 575 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA125C-CCY | FCA125CVMA | RZAC125CY1 | 12.5 | 9.4 | 14.0 | 608 | 298 | 840 | 840 | 50 | 30 | 26 | 69 |
| FCA140C-CFY | FCA140CVMA | RZAC140FY1 | 14.0 | 10.4 | 16.0 | 608 | 298 | 840 | 840 | 50 | 30 | 26 | 95 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
NEW Facia Design
Black and white options. Black panel with sensor BYCQ125EEK. White panel with sensor BYCQ125EEF.
Reuse of Existing Piping
We reduce work costs and time by simplified installation, reusing existing pipes. Particularly convenient circumstances like - pipes are buried and making new pipe installations difficult; outdoor unit difficult to access; multiple units are being upgraded at the same time.

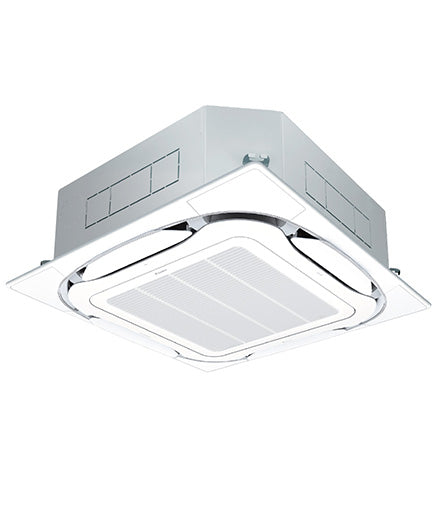

360° Airflow
Uniform temperature distribution throughout the space with selectable range of total of 18 airflow patterns. Dual sensors and individual airflow direction control automatically provides optimal control of airflow.
Comfort Operation
Circulation airflow evenly distributes cool and warm air. Individual airflow direction control. Daikin sensing technology with dual sensors for comfort and energy saving preventing overcooling / overheating. Optimal comfort assured by 3 air discharge modes. Quick and easy installation. Easy maintenance.
Presence & Floor Temperature Sensor (Optional)
The sensors ensure comfortable room environmentand reduce energy consumption.
