| Refrigerant | R410A |

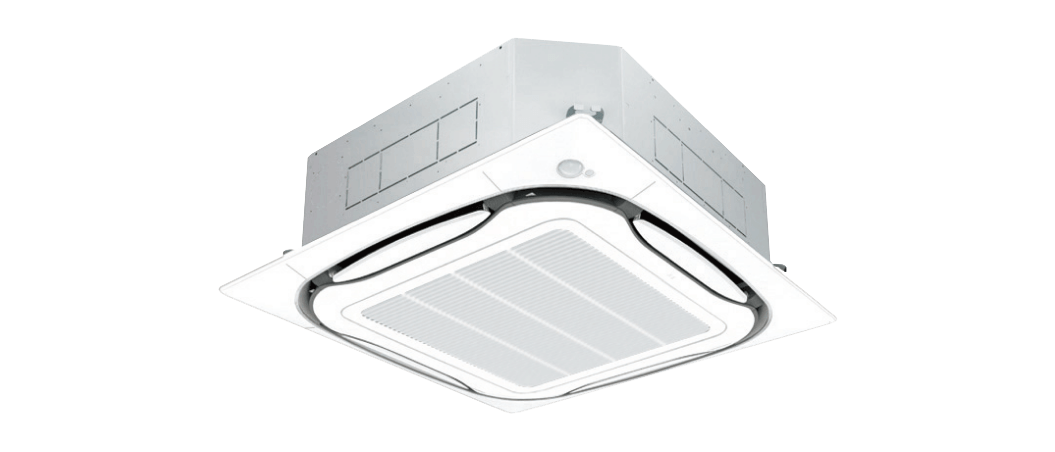

The FXFSQ-AVM series is no ordinary cassette with all the benefits of round flow air distribution coupled with a state of the art infrared sensor that not just detects human presence but can also sense floor temperature to ensure optimal comfort and energy savings. There is also a new Circulation Airflow function for rapid cooling/heating and uniform temperature distribution, individual airflow direction control with 5-step fan speed and the option of white or black fascia.
FXFSQ-A Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (IU) | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | (kg) | |||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | IU | ||
| FXFSQ25AVM | 2.8 | 2.7 | 3.2 | 217 | 256 | 840 | 840 | 19 |
| FXFSQ32AVM | 3.6 | 3.2 | 4.0 | 217 | 256 | 840 | 840 | 19 |
| FXFSQ40AVM | 4.5 | 4.0 | 5.0 | 283 | 256 | 840 | 840 | 19 |
| FXFSQ50AVM | 5.6 | 5.0 | 6.3 | 383 | 256 | 840 | 840 | 24 |
| FXFSQ63AVM | 7.1 | 6.0 | 8.0 | 392 | 256 | 840 | 840 | 22 |
| FXFSQ80AVM | 9.0 | 7.0 | 10.0 | 408 | 256 | 840 | 840 | 22 |
| FXFSQ100AVM | 11.2 | 9.0 | 12.5 | 558 | 298 | 840 | 840 | 25 |
| FXFSQ125AVM | 14.0 | 10.3 | 16.0 | 575 | 298 | 840 | 840 | 25 |
| FXFSQ140AVM | 16.0 | 11.6 | 16.0 | 592 | 298 | 840 | 840 | 26 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Comfort and Energy Saving
Sensors detecting human presence and temperatures near the floor provide comfortable spaces without uneven temperatures.
Auto Airflow Function (Comfort)
When human is not detected for 5 minutes, the unit automatically returns to controlling the flaps for an unoccupied room. (Direct Airflow function, Draft Prevention function)
Sensing Sensor Mode (Energy Saving)
LOW MODE: When there are no people in a room, the set temperature is shifted automatically. STOP MODE: Based on preset user conditions, the system automatically stops operation if the room is unoccupied.
New Designer Panel
Designer choice has been given a boost with the increase in number of new types of decoration panels.
Auto Grille Panel (Option)
Grille and air filter cleaning can be performed without need for a stepladder by lowering the grille.
High Performance Prefilter (MERV 8) (Option)*
This filter can catch more harmful substances in the air such as PM2.5. *Only applicable to standard panel with sensing. (BYCQ125EEF/K).
