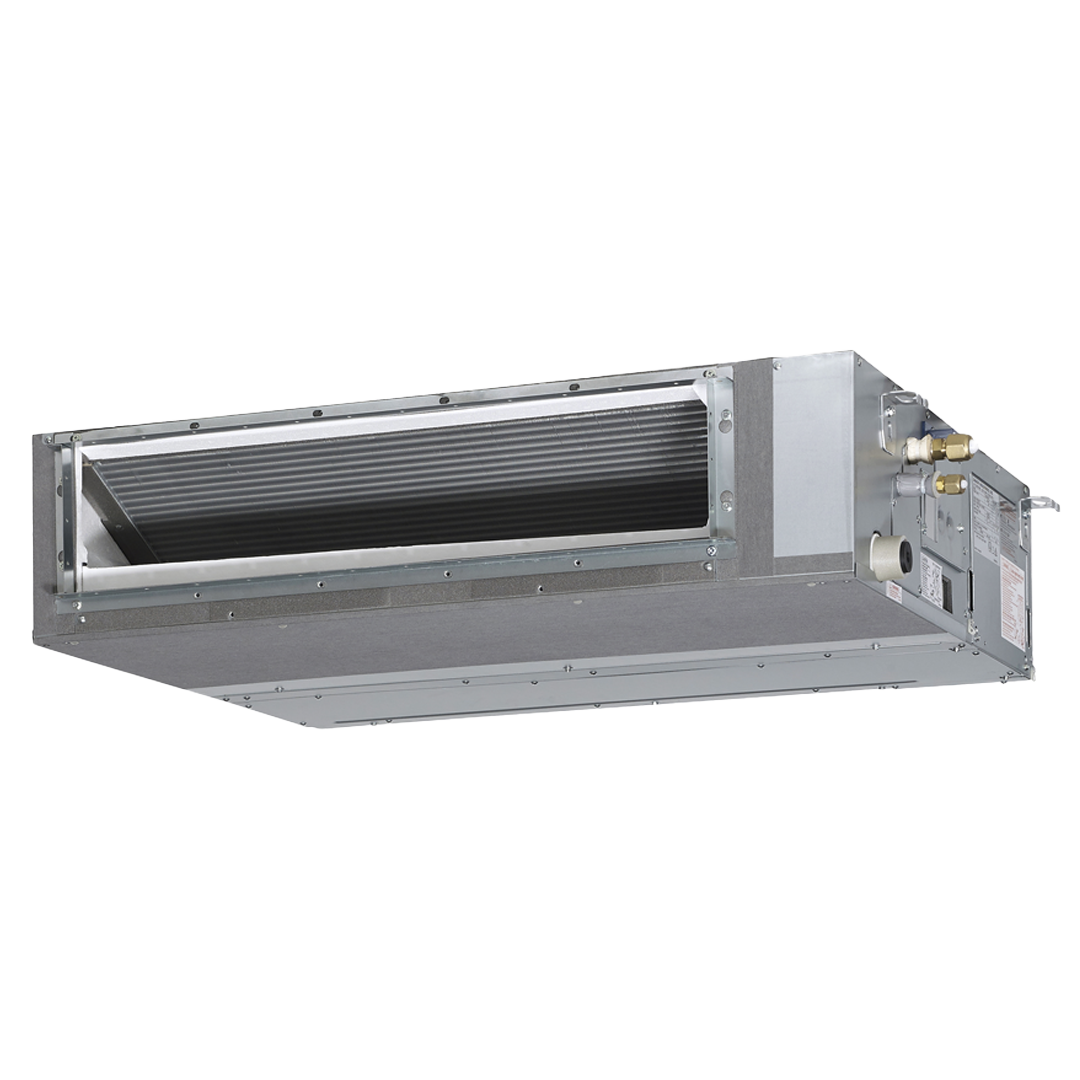

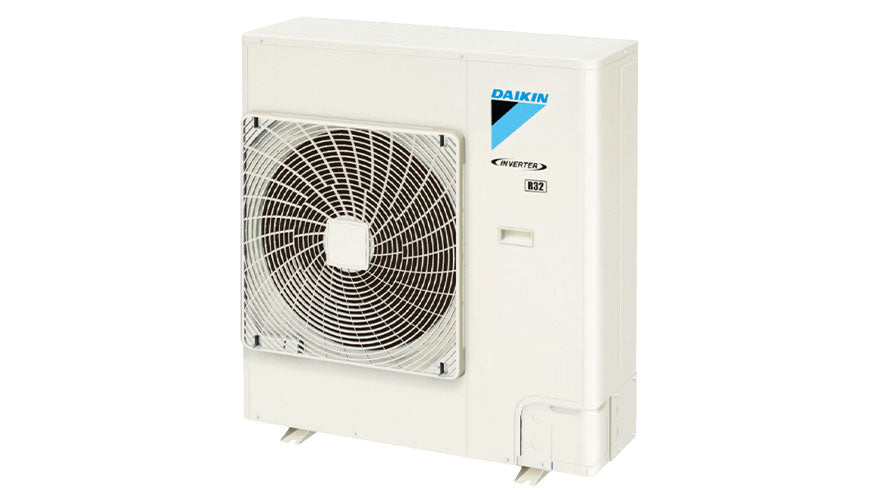

Slim-Line Ducted (FBA)

Refrigerant R32

Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.

Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.

Ducted Brochure here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FBA50BA-VCV FBA50BAVMA RZAV50CV1 5.0 4.3 6.0 300 245 1000 800 50 30 37 45
FBA60BA-VCV FBA60BAVMA RZAV60CV1 6.0 4.9 7.1 300 245 1000 800 50 30 37 45
FBA71B-VCV FBA71BVMA RZAV71CV1 7.1 5.5 8.0 383 245 1000 800 75 30 37 69
FBA85B-VCV FBA85BVMA RZAV85CV1 8.5 7.0 10.0 533 245 1400 800 75 30 47 78
FBA100B-VFV FBA100BVMA RZAV100FV1 10.0 7.8 11.2 533 245 1400 800 85 30 47 93
FBA125B-VFV FBA125BVMA RZAV125FV1 12.5 9.3 14.0 600 245 1400 800 85 30 47 95
FBA140B-VFV FBA140BVMA RZAV140FV1 14.0 10.2 16.0 600 245 1400 800 85 30 47 95
FBA71B-VCY FBA71BVMA RZAV71CY1 7.1 5.5 8.0 383 245 1000 800 75 30 37 69
FBA85B-VCY FBA85BVMA RZAV85CY1 8.5 7.0 10.0 533 245 1400 800 75 30 47 78
FBA100B-VFY FBA100BVMA RZAV100FY1 10.0 7.8 11.2 533 245 1400 800 85 30 47 93
FBA125B-VFY FBA125BVMA RZAV125FY1 12.5 9.3 14.0 600 245 1400 800 85 30 47 95
FBA140B-VFY FBA140BVMA RZAV140FY1 14.0 10.2 16.0 600 245 1400 800 85 30 47 95
FBA71B-CCV FBA71BVMA RZAC71CV1 7.1 5.5 8.0 383 245 1000 800 50 30 37 69
FBA85B-CCV FBA85BVMA RZAC85CV1 8.5 7.0 10.0 533 245 1400 800 50 30 47 78
FBA85B-CCY FBA85BVMA RZAC85CY1 8.5 7.0 10.0 533 245 1400 800 50 30 47 78

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...

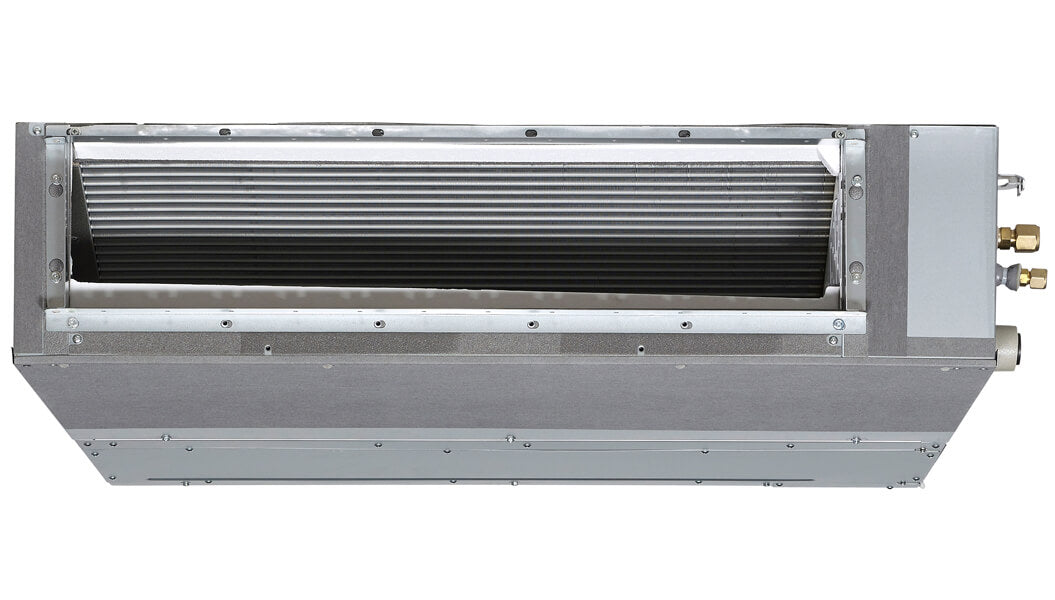

Slim-Line Indoor

Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.

...
Design Flexibility

DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.

...
R22 Retrofit Capability

Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.

...
Automatic Airflow Adjustment

Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.

...
Flexible Return Air

Option of a rear or bottom suction return allows for greater installation flexibility

...
Built-in condensate pump

DC Condensate pump is equipped as standard with a 850mm lift.

Controller Features

... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

...
Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Required Zone Controller)

...
7 Day Time Clock

Program on and off times, including when to open/close zones and the temperature sensor to use.

...
Automatic Mode Changeover

Allows the unit to automatically switch between heating and cooling for year round comfort.

...
Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

...
Direct Connection

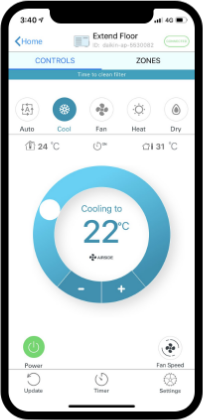

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

Controller Features

... ... ... ...
...
2 Colours

Available in two attractive colours, the new remote controller adds style and sophistication to nay indoor space. Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.

...
Sleek Stylish Design

Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.

...
User Friendly Interface

The new remote controller combines functionality and simplicity. The minimalistic touch button control enlarges the display and makes the remote controller both easy and enjoyable to use.

...
Daikin App for Installer

Simplifies the advanced settings such as field settings and set point range.

...
Touch Operation

7” colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.

...
Two Versions

Both On/Off or Linear Control options available in either a 4 or 8 zone design. For details on these control methods, see brochure.

...
Optional Wireless Sensors

Wireless remote temperature sensors are available, ideal for homes with internal brick walls.

...
On/Off Timer

Program on and off times within the day to suit your needs.

...
Weekly Schedule Timer

Program on and off times, including when to open/close zones and the temperature sensor to use for On/Off Control option.

...
Eco Settings

Setpoint Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your system's energy consumption.

...
Touch Controllers

Featuring premium aesthetic design with intuitive touch screen interfaces for ease of use. Available in 3 models: Blueface, Think and Lite.

...
Q-Adapt Algorithm

The controller automatically selects the appropriate fan speed (L/M/H) depending on number of zones opened and the demand, resulting in reduced running costs.

...
Scalable Design

Up to 10 zones can be controlled via a single VAF system and coupled with a simple control architecture this makes scalability and installation convenient. *A BRC1E63 (Nav Ease) will also be required for backup and servicing

...
Individual Temperature Control

The 4-step linear dampers precisely regulate airflow into each zone ensuring optimal temperatures for all occupants in the household at anytime.

*All Controllers are optional & separately sold.

SLIM-LINE DUCTED Technology

15mm Heat Exchanger Pipe

By adopting the use of 5mm heat exchanger pipe, Daikin’s slim-line ducted was able to achieve an industry leading low profile height of 245mm.

2Built-in Drain Pump

Condensate drain pump with a lift of up to 850mm is built into the unit without sacrifice to the unit’s slim form factor.

3Automatic Airflow Adjustment

Coupled with DC fan motor and smart control logic, fan speed can be automatically adjusted to suit your duct design for simplified commissioning.

4DC Fan Motor

By utilising high power permanent magnets instead of induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
