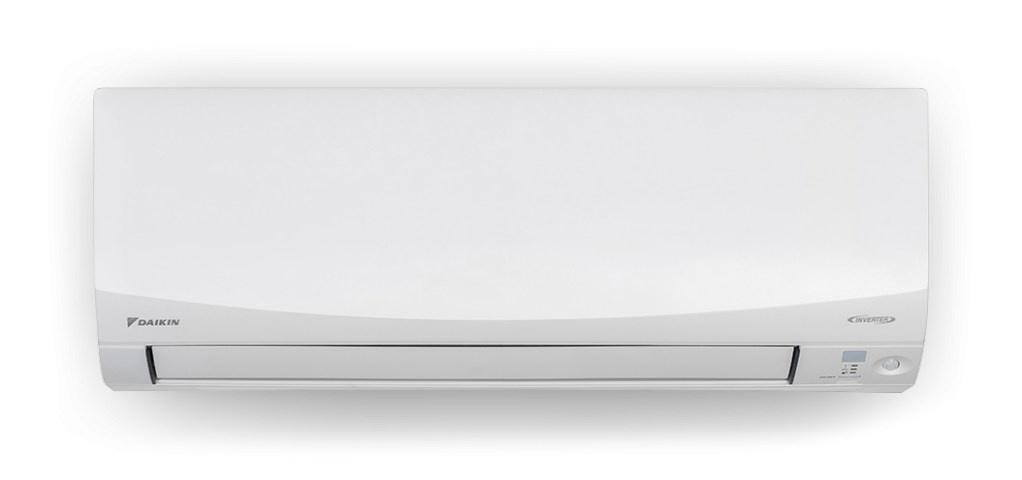

Standard Series (FTXV-U)

Refrigerant R32

Ideal for those looking for a model that covers the essentials.

Daikin’s New Standard Series offers reliable performance when heating or cooling your home. With all the essential features and a large range of capacities, there’s one to keep you comfortable whether your space is big or small.

Standard Series Flyer here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

System Name (BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Max Pipe Length Level Difference Weight
Indoor Unit Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) IU OU
FTXV20U FTXV20UVMA RXV20UVMA 2.0 2.0 2.7 156 285 770 223 20 15 9 28
FTXV25U FTXV25UVMA RXV25UVMA 2.5 2.4 3.2 173 285 770 223 20 15 9 30
FTXV35U FTXV35UVMA RXV35UVMA 3.5 2.8 3.7 183 285 770 223 20 15 9 30
FTXV46U FTXV46UVMA RXV46UVMA 4.6 3.3 4.7 203 285 770 223 30 20 9 51

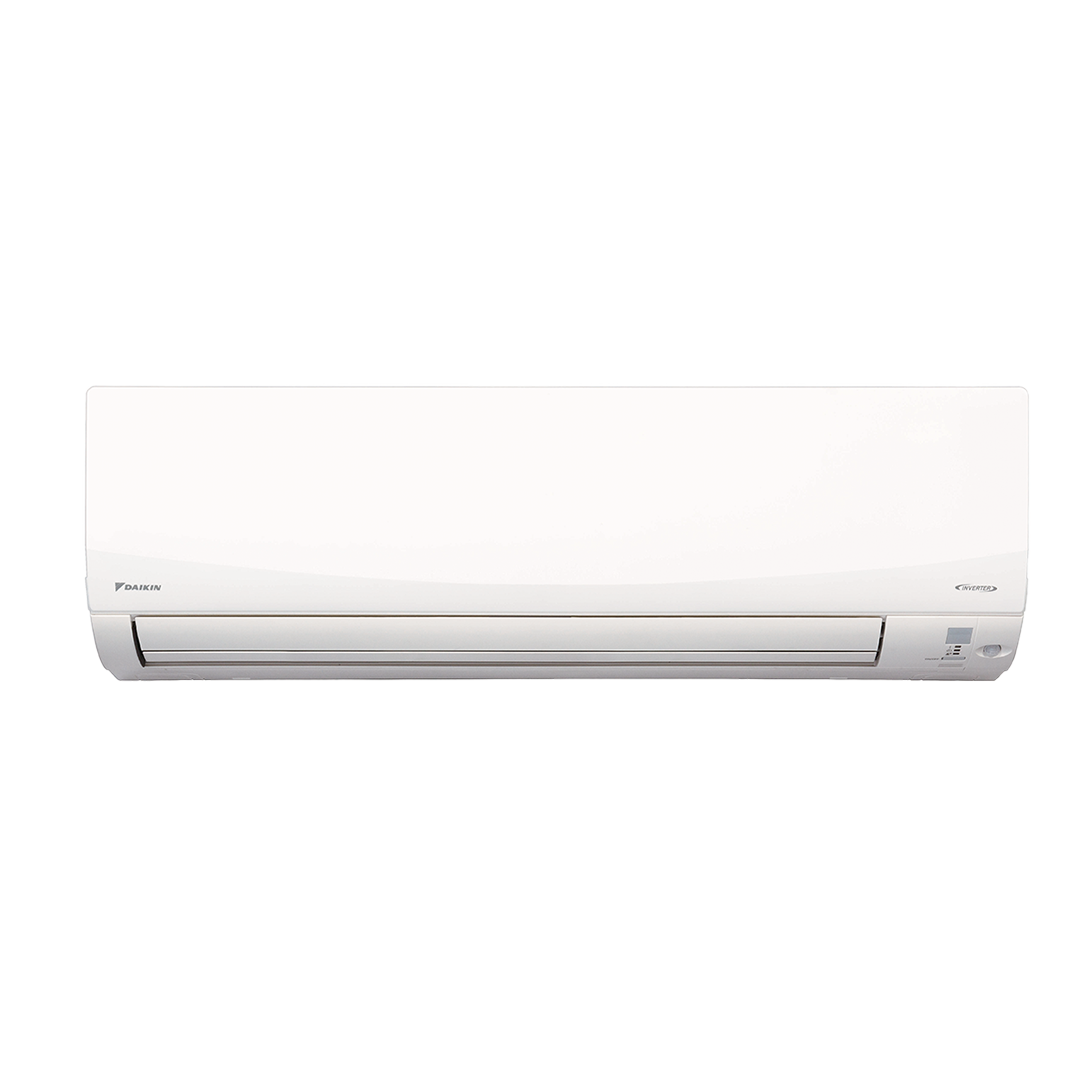

FTXV50U FTXV50UVMA RXV50UVMA 5.0 4.2 6.0 287 295 990 263 30 20 13 54
FTXV60U FTXV60UVMA RXV60UVMA 6.0 4.9 7.2 333 295 990 263 30 20 13 54
FTXV71U FTXV71UVMA RXV71UVMA 7.1 5.3 8.0 328 295 990 263 30 20 13 60
FTXV80W FTXV80WVMA RXV80WVMA 8.0 6.4 9.0 410 329 1,240 278 30 20 19 77
FTXV90W FTXV90WVMA RXV90WVMA 9.0 7.1 10.3 410 329 1,240 278 30 20 19 77

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Comfort Airflow

Discharge louvres are specially designed to stream cooling air upwards along the ceiling (coanda effect) and warm air down along the floor. This delivers rapid cooling or heating and even temperature distribution.

...
Inverter Powerful Operation

Push the POWERFUL button on the remote control and you’ll be relieved with a cooling or heating boost for a 20 minute period, even if the unit’s already operating at high capacity.

...
Advanced Purification

Each model is fitted with a titanium apatite deodorising air purification filter that traps microscopic particles, decomposes odours and even deactivates bacteria.

...
2-Area Intelligent Eye

The 2-area Intelligent Eye* is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations. (*Applicable for 20-46 Classes only)

...
Program Dry Function

Besides reducing humidity, this function automatically controls temperature and airflow rate and will cleverly switch into cooling mode if the room temperature rises too much.

...
Econo Mode

This mode limits the maximum power consumed by the system preventing the tripping of your circuit breaker should you have other household appliances operating simultaneously with your heat pump.

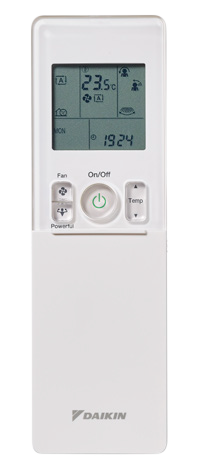

Controller Features

... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...

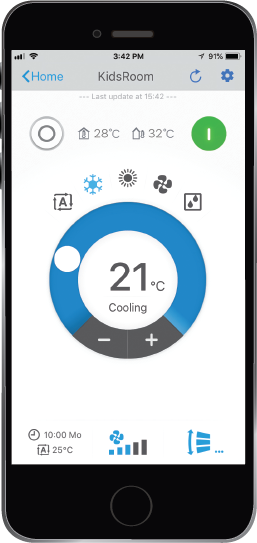

Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

STANDARD SERIES Technology

1Redesigned Heat Exchanger

Slit type fin design with Ø5mm piping increases heat exchange area for improved capacity output and energy performance.

2Cross Flow Fan

Large diameter rotor with aerofoil blade design delivers larger volumes of air more quietly than ever before.

3New ODM Motor

Compact 10 pole DC outer diameter rotor motor delivers higher torque more efficiently.

Contact a Daikin Sales Engineer

A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
