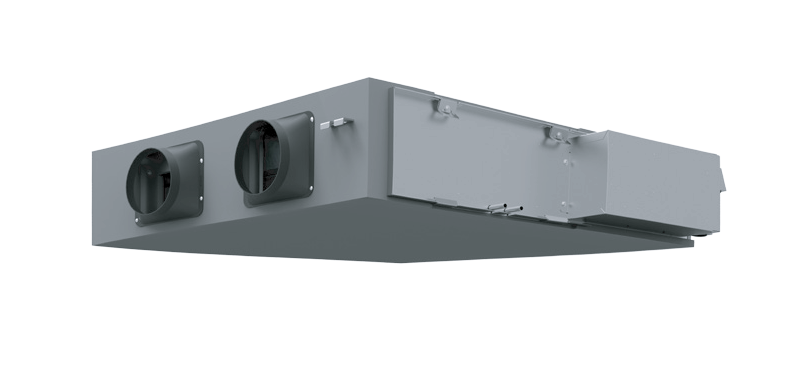

VAMS-V3A (Sensible Heat Reclaim Ventilator)

Our NEW VAMS-V3A Sensible unit is compact, energy efficient and is best fit for apartments and other residential applications including commercial projects for Retirement Villages and Aged Care facilities.

VAM-V3A Brochure here

Key Features & Technology

... ...
...
Compact Design

Reduce the Unit Height Size from 278mm (HVE) to 220 mm (Casing Size with insulation).

...
DC Motor

Adopted single inlet centrifugal fan integrated with DC motor to achieve AUS J5.4 Fan efficiency and low height casing design.

...
Heat Exchanger

Adopted aluminum sensible heat exchanger able to suit customer requirement to avoid cross contaminants from RA(toilet) to OA and maintain NCCJ5.3 sensible heat efficiency min 60% and reduce unit size.

...
Auto-Ventilation Mode Changeover Switching

Automatically switches the ventilation mode (Sensible Heat Exchange Mode/Bypass Mode) according to the operating status of the air conditioner. When the cooling operation is required in winter, use of heat recovery ventilation is not efficient because the outdoor air temperature is normally lower than that of the indoor. Thus, the proper use of ventilation mode enhances the heating / cooling efficiency.

For a complete list of key features/technologies and product specification, please download the brochure.

Download Brochure
1234

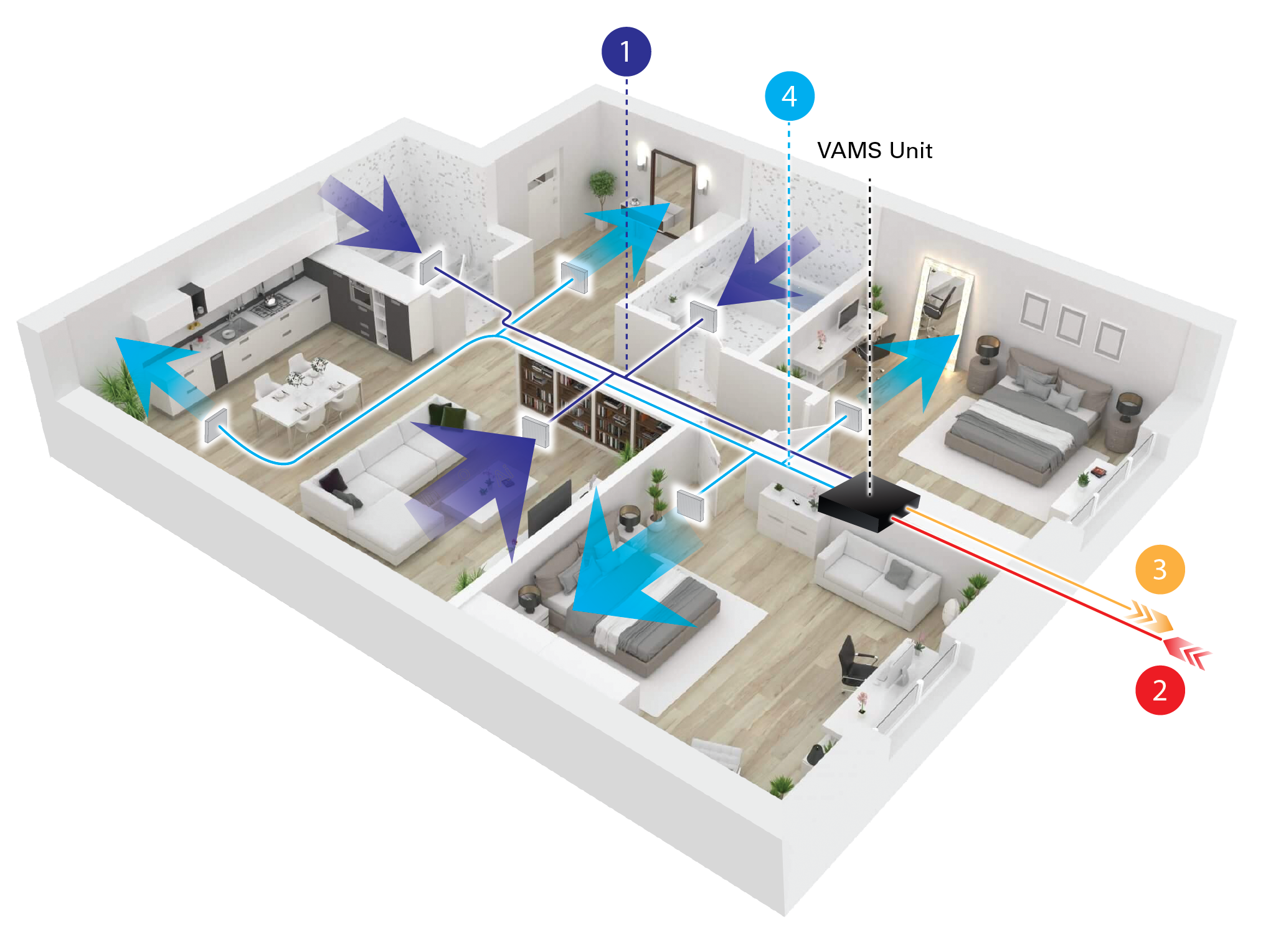

SENSIBLE HEAT RECLAIM VENTILATOR (VAMS) - MECHANISM

1Indoor Return Air (RA)

Stale air contains moisture, CO2, odour and other pollutants. This is especially true for air that comes from damp areas such as the kitchen and bathroom. It is extracted from your home via the Indoor Return Air ducts. The stale air, now known as Return Air (RA),then passes through the VAM unit.

2Outdoor Air (OA) Supply

At the same time, fresh Outdoor Air (OA) is brought into your home through the Outdoor Air Supply. The outdoor air is filtered as it enters the VAM unit, thus removing dirt and dust.

3Exhaust Air (EA) Discharge

As the Return Air (RA) travels through the VAM unit, heat energy is recovered by the sensible heat exchanger. The recovered heat energy pre-heats/cools the Outdoor Air (OA) that passes in the opposite direction and enters your home. This helps to conserve energy and reduce the load on the air conditioning system. The Return Air (RA) is then exhausted outside through the Exhaust Air (EA) Discharge.

4Indoor Supply Air (SA)

Clean and fresh outdoor air, known as Supply Air (SA), is finally introduced into your home through the Indoor Supply Air ducts.

Optional Accessories

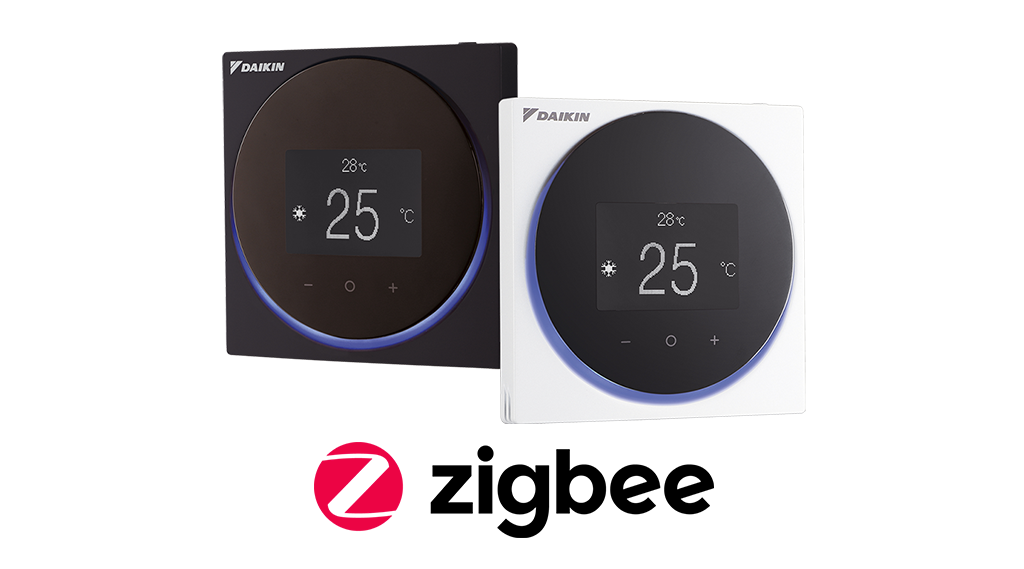

Stylish Remote Controller (Zigbee sensor - CO2,temperature, window/door, humidity)

Optional Stylish Remote ControllerBRC1H63W / BRC1H63K

Through Zigbee communication, the sensor (temperature, window/door, CO2 concentration & humidity) able to connect to R/C
