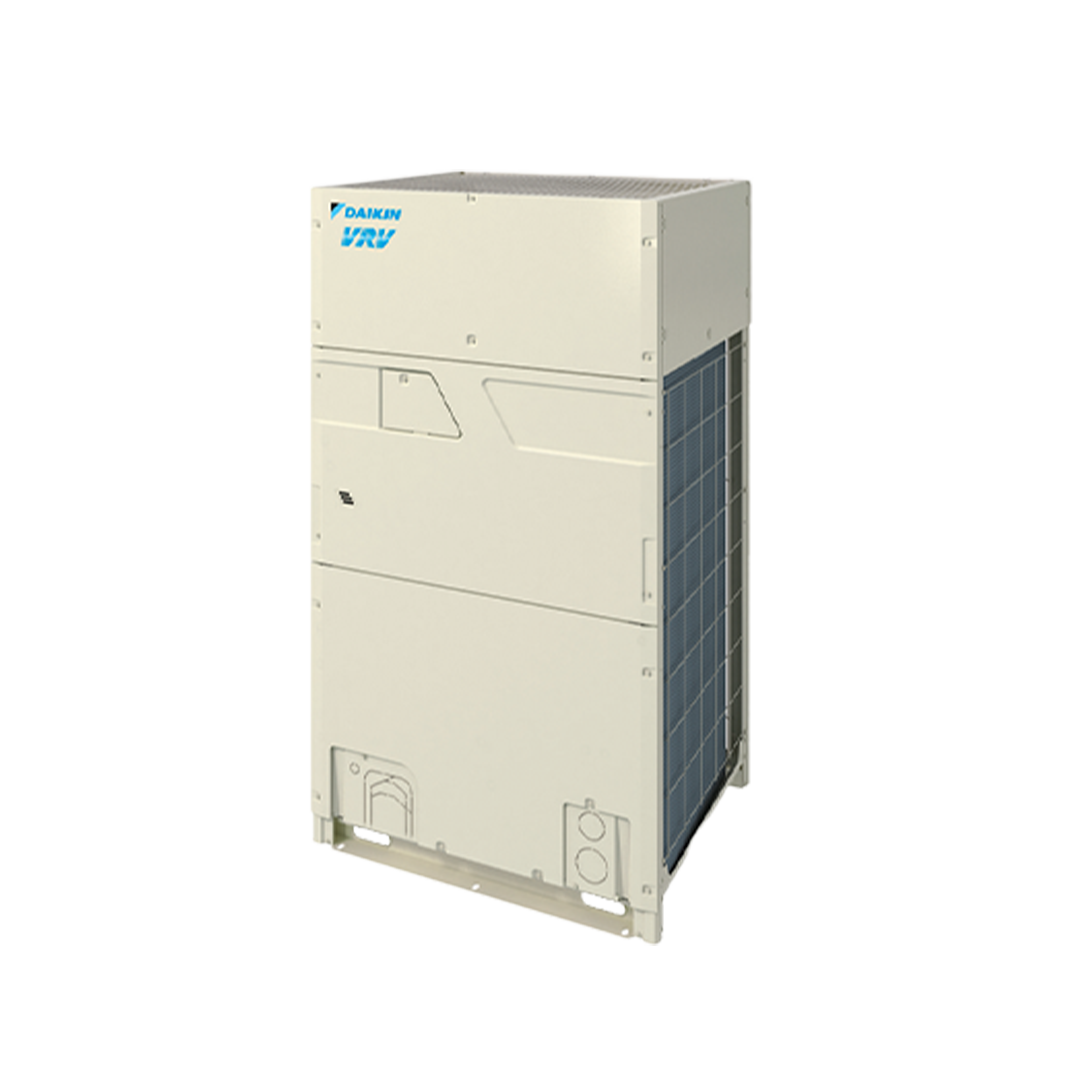

VRV H - Heat Pump Series (RXYQ-BYM)

Refrigerant R410A

Featuring unique functions within a new, large-capacity casing, the 6th generation VRV H - Heat Pump Series enables both cooling and heating operations using a single VRV system. The VRV H series adopts a novel casing design, allowing for a single module of up to 24 class (HP). Furthermore, these new models have achieved significant energy savings through improved technology. The operating performance has been enhanced in all aspects by incorporating innovative ideas, technologies, and a wide range of functions to bolster design flexibility, ease of installation, and reliability. Our advanced VRV technology offers greater benefits to various users within the air conditioning systems domain, including building owners, consultants, installers, and even building management.

Elevate your HVAC system to new heights with our cutting-edge VRV technology.

VRV 6 H Brochure here

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (OU) Dimensions (IU) Max Pipe Length Level Difference Weight
Outdoor Unit TC HC SC H W D OU-IU OU-IU (kg)
(kW) (kW) (kW) (mm) (mm) (mm) (mm) (m) OU
RXYQ8BYM 22.4 - 25.0 2583 1660 930 765 - - 215
RXYQ10BYM 28.0 - 25.0 2816 1660 930 765 - - 225
RXYQ12BYM 33.5 - 37.5 3017 1660 930 765 - - 225
RXYQ14BYM 40.0 - 45.0 4333 1660 1240 765 - - 310
RXYQ16BYM 45.0 - 50.0 4433 1660 1240 765 - - 310
RXYQ18BYM 50.0 - 56.0 4300 1660 1240 765 - - 340
RXYQ20BYM 56.0 - 63.0 5100 1660 1240 765 - - 340
RXYQ22BYM 61.5 - 69.0 5100 1660 1750 765 - - 385
RXYQ24BYM 67.0 - 75.0 7167 1660 1750 765 - - 385
RXYQ26BYM 73.5 - 82.5 7350 1660 2170 765 - - 535
RXYQ28BYM 78.5 - 57.5 7450 1660 2170 765 - - 535
RXYQ30BYM 83.5 - 93.5 7317 1660 2170 765 - - 565
RXYQ32BYM 89.5 - 100.0 8167 1660 2170 765 - - 565
RXYQ34BYM 96.0 - 108.0 9433 1660 2480 765 - - 650
RXYQ36BYM 101.0 - 113.0 9533 1660 2480 765 - - 650
RXYQ38BYM 106.0 - 119.0 9400 1660 2480 765 - - 680
RXYQ40BYM 112.0 - 126.0 10200 1660 2480 765 - -
RXYQ42BYM 117.0 - 132.0 11467 1660 2990 765 - - 725
RXYQ44BYM 123.0 - 138.0 12267 1660 2990 765 - - 725
RXYQ46BYM 128.0 - 144.0 14333 1660 3500 765 - - 770
RXYQ48BYM 134.0 - 150.0 14333 1660 3500 765 - - 770
RXYQ50BYM 139.0 - 156.0 12417 1660 3410 765 - - 905
RXYQ52BYM 145.0 - 163.0 13217 1660 3410 765 - - 905
RXYQ54BYM 152.0 - 171.0 14533 1660 3720 765 - - 990
RXYQ56BYM 157.0 - 176.0 14633 1600 3720 765 - - 990
RXYQ58BYM 162.0 - 182.0 14500 1660 3720 765 - - 1020
RXYQ60BYM 168.0 - 189.0 15300 1660 3720 765 - - 1020

Note: For Maximum Piping Lengths and Level Differences please refer to VRV brochure located on the BIM platform.

VRV 6 H Heat Pump Series

VRV H Series (RXYQ-BYM) is the newest addition to Daikin’s flagship VRV range offering improvements in design, capacity, ease of installation, reliability, comfort and energy savings.

Controller Features

... ... ... ...
...
Compact Modular Design

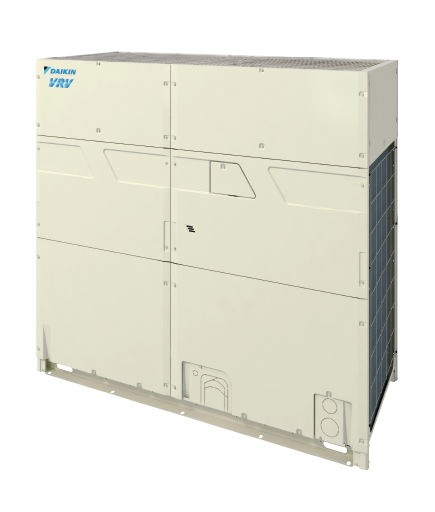

22 & 24HP model sits at just 1,750mm wide x 765mm deep x 1,660mm tall representing a 4% reduction in total footprint and 4% reduction in weight compared to the 5th generation model.

...

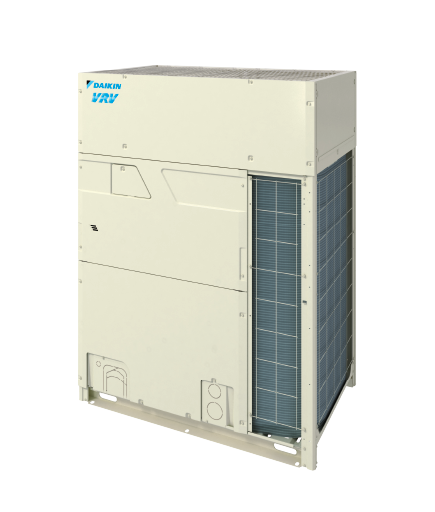

Enhanced Lineup

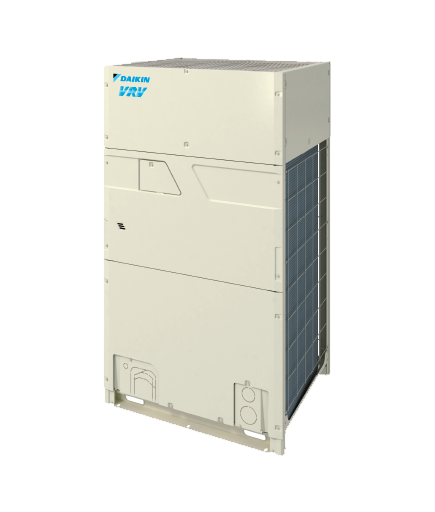

3 new chassis designs (M, L & XL) with single modules starting at 8HP capacity. Thanks to the XL chassis, 22HP (61.5kW) & 24HP (67.0kW) single modules models are now also available.

...
Energy Saving

Software Technology - VRT Smart II Control - Further improvement of energy savings is achieved due to optimal control of the outdoor airflow rate.

...
Easy Installation

The sealed electrical box boasts an IP55 ingress protection rating, ensuring robust safeguarding against dust and moisture. It features a new service window that offers convenient access to a versatile digital display, simplifying the commissioning and troubleshooting processes. Additionally, its design incorporates separate wiring and piping pathways, facilitating swift and hassle-free installation and servicing.

...
Improved Operation Limits

Refrigerant cooled inverter PCB with three cooling points of contact, allows for operation at a maximum ambient temperature of 52°C*.

  • *Limited to 49°C if outdoor is above indoor and height difference >90m
...
Increased refrigerant piping Length and height difference extension

Refrigerant piping lengths of up to 165m are possible and the maximum height difference between the indoor unit and the outdoor unit has been extended to 110m which is an improvement of 20m from the 5th generation model.

...
Feature Title

Feature Description

  • Feature List
...
Feature Title

Feature Description

  • Feature List
...
Feature Title

Feature Description

  • Feature List

IP55 Compliant Sealed Electrical Component Box

Prevents the entrance of various debris such as geckos, insects, sand and water, reducing the risk of failure.

Refrigerant Cooled Inverter PCB

Three refrigerant cooling circuits enable stable operation even in high outdoor temperatures by cooling the inverter PCB in the electrical component box.

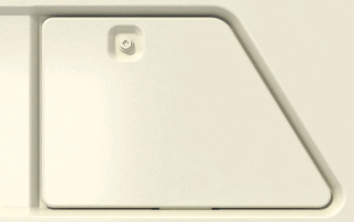

Electrical Component Service Window

Main PCB 7-segment LED and setting buttons can be accessed without removing the front panel, improving workability for servicing and field settings.

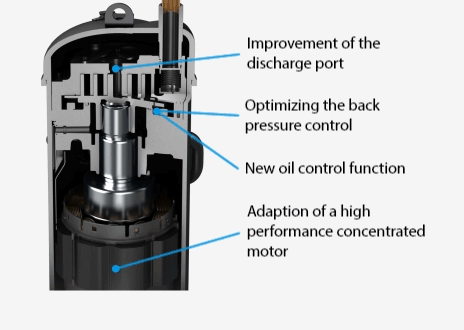

High Efficiency Compressor

New technologies improve part load performance, increase seasonal efficiency and enable a compact design.

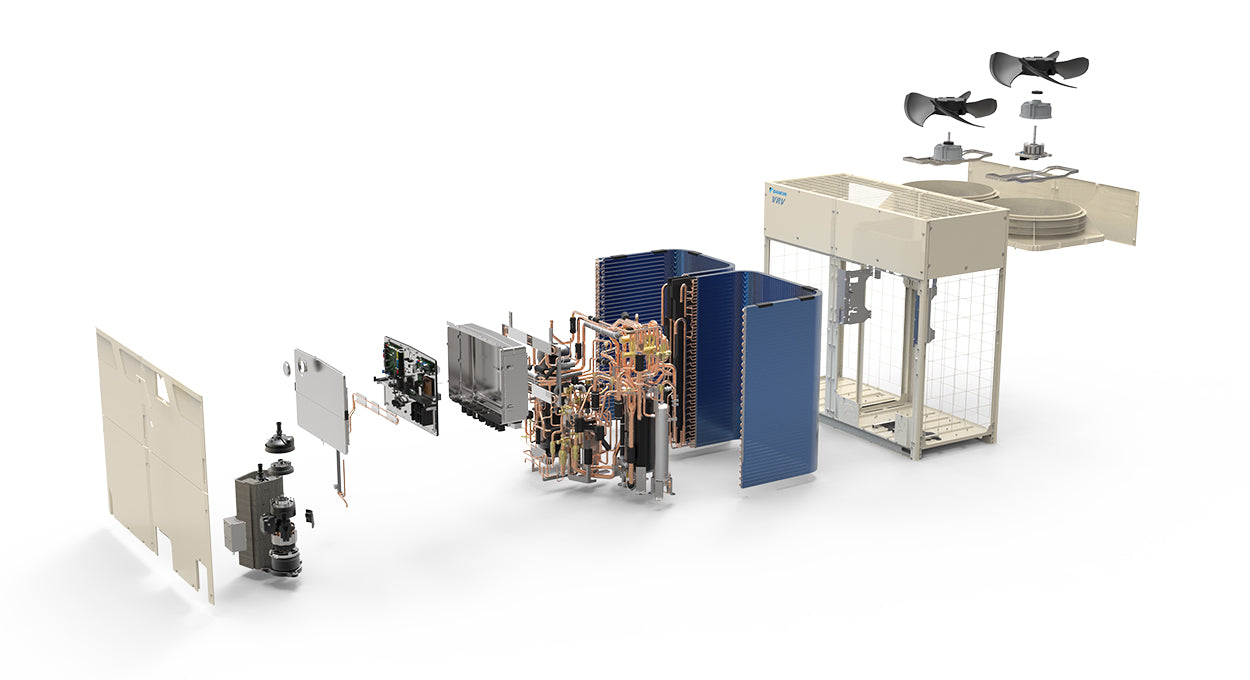

VRV6 H Outdoor Unit Technology

1P-Type Compressor

Optimised for part load performance and delivers a 50% part load EER of up to 7.61

2VRV II Smart Technology

Variable refrigerant temperature with automatic indoor unit and outdoor unit fan speed regulation.

3Refrigerant Cooled PCB

Enables max operation limit of up to 52°C ambient conditions.

4IP55 Electrical Component Box

Blocks the ingress of debris and moisture to prevent unexpected failures.

57 Segment Digital Display

Allows for easy commissioning and troubleshooting.

6Waffle Fin Heat Exchanger

Maximum surface area for greater heat exchange and COP

7Reinforced Casing Design

Improved frame structure provides better resistance tot eh elements.

8Outdoor Rotor DC Motor

10 pole DC outer diameter rotor motor for improved torque delivery in a compact form factor.

9Propeller Fan

Sharp edge fan blade curvature reduces vibration and pressure loss.
