| Refrigerant | R32 |

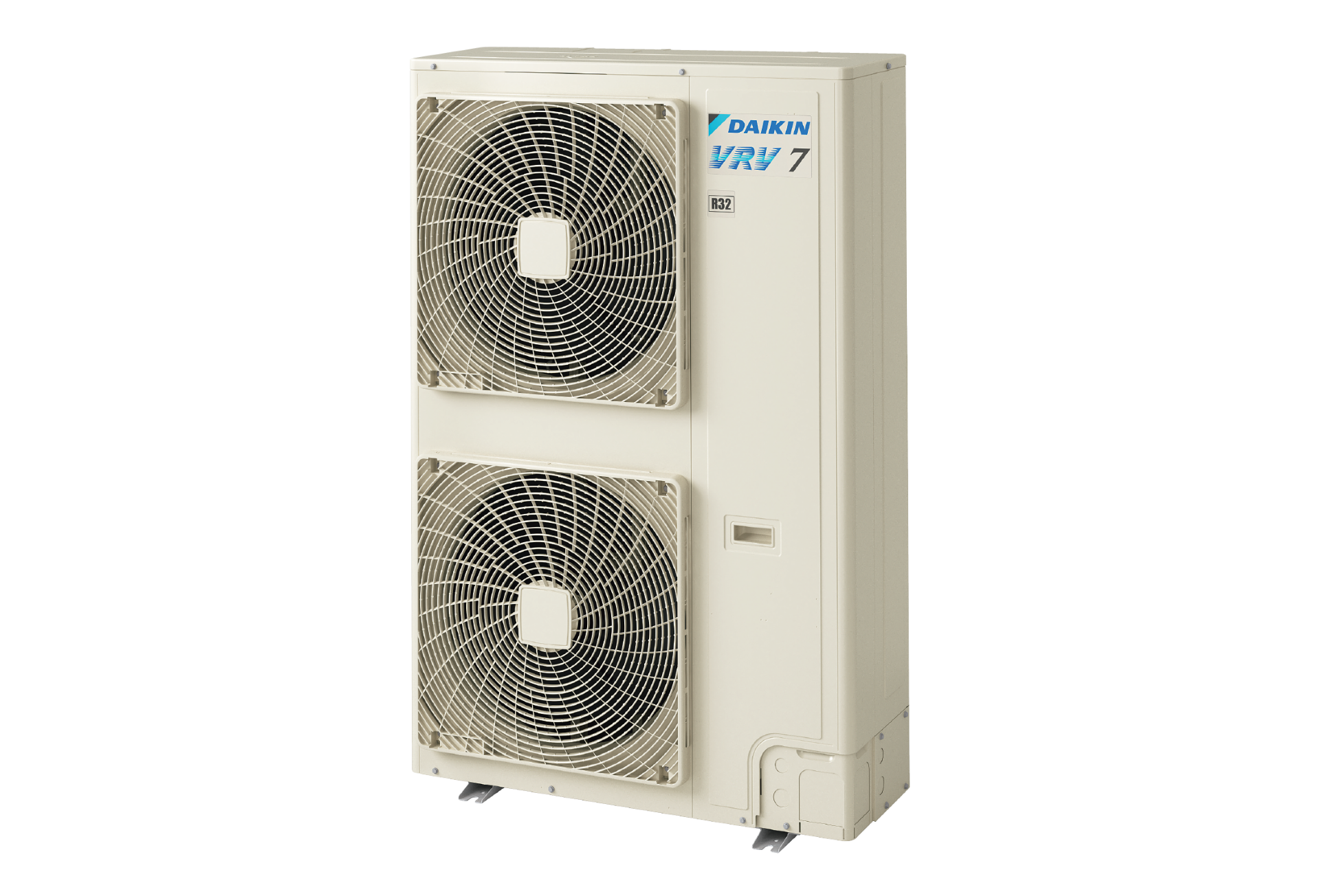

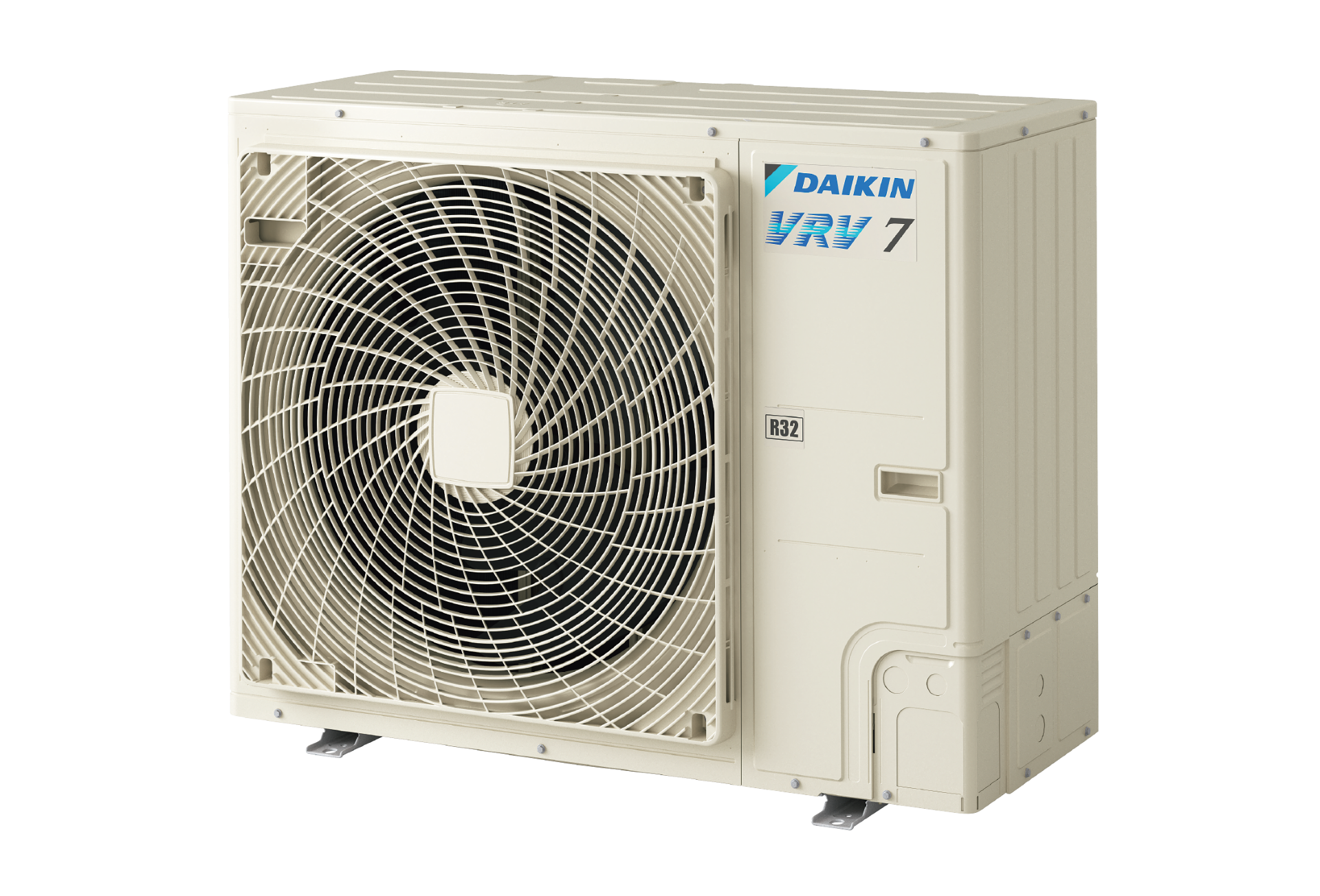

Daikin has launched a new VRV 7 S series with R-32 refrigerant.While maintaining its strength and performance,it takes advantage of the excellent performance characteristics of R-32 refrigerant to achieve even greater energy efficiency and environmental friendliness
The slim, compact housing and long piping length allow it to be installed in limited spaces such as balconies and rooftops, making it suitable for a wide range of applications from homes to office buildings.
VRV 7 S Flyer here
Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.
Technical Specifications
| (BIM) Engineering Data Links | Rated Capacity | Dimensions | Weight | |||
|---|---|---|---|---|---|---|
| Outdoor Unit | Cooling | Heating | H | W | D | (kg) |
| (kW) | (kW) | (mm) | (mm) | (mm) | ||
| VRV 7 S Single Phase | - | - | - | |||
| RSUYA4AVM | 11.2 | 12.5 | 870 | 1100 | 460 | 106 |
| RSUYA5AVM | 14.0 | 16.0 | 870 | 1100 | 460 | 106 |
| RSUYA6AVM | 16.0 | 18.0 | 870 | 1100 | 460 | 106 |
| VRV 7 S Three Phase | ||||||
| RSUYA7AYM | 20.0 | 22.4 | 1430 | 940 | 320 | 118 |
| RSUYA8AYM | 22.4 | 25.0 | 1430 | 940 | 320 | 118 |
| RSUYA9AYM | 24.0 | 26.0 | 1430 | 940 | 320 | 118 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
DIV-NET Advanced System
DIV-NET is a proposal for next generation system, with high-speed communication and integration. Collaborative control with stored operation data creates new values beyond the framework such as better IAQ control, inspection, and service maintenance remotely.
Dry Cool Operation
In the new R-32 indoor units equipped with a humidity sensor, Dry Cool Operation mode can be set from new stylish remote controller BRC1H64W(K).
Installation Support and Safety Measures
As the safety measures compliant with IEC are supported, the new VRV 7 S can be installed anywhere as same as conventional R-410A series.The model selection for the each application is supported by support tools such as DK-BIM.
R-32 Low GWP Refrigerant
R-32 has less impact on environment, with zero ODP and low GWP. Compared to the conventional R-22 or R-410A, GWP of R-32 is only around 30%.
Refrigerant cooled PCB technology
Daikin´s unique refrigerant cooling helps maintaining high cooling capacity even during high outdoor temperatures and reducing the number of electronic components needed.
Save More Energy
All the VRV series have advantages of both hardware and software energy saving technologies. Furthermore, the energy efficiency of new VRV 7 S has been greatly improved with excellent characteristics of R-32.
VRT Smart II Control
The new VRV 7 S series implements VRT Smart II control in all capacity classes.By optimising the operation status of the indoor and outdoor units, it reduces unnecessary load and contributes greatly to energy saving performance.

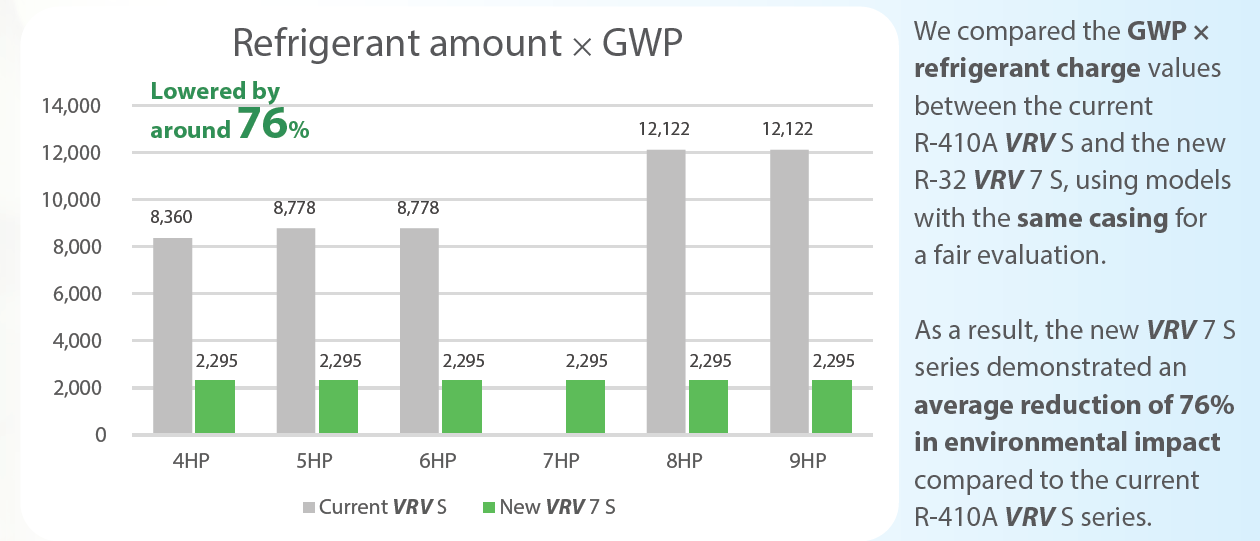

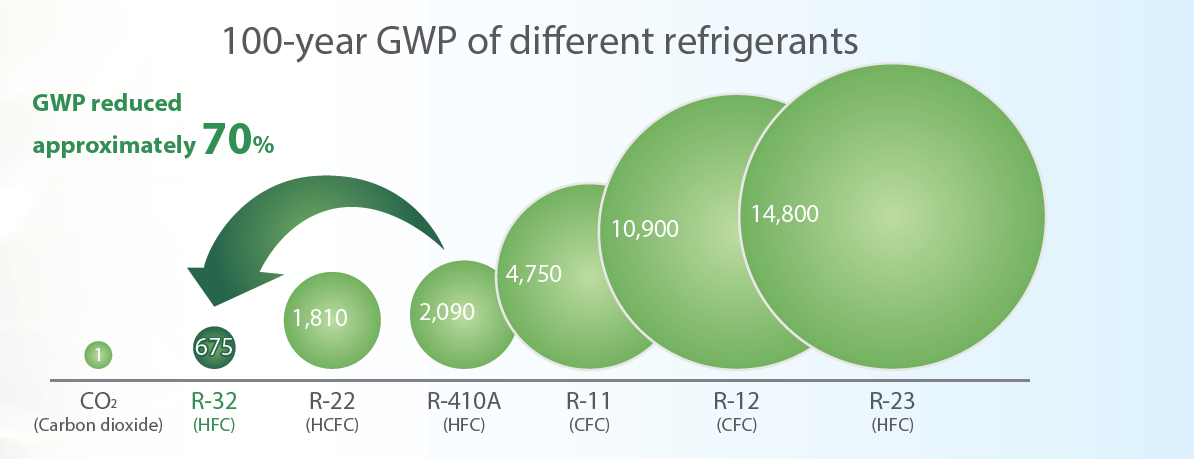

GWP Chart
GWP: A number that represents the global warming potential of other greenhouse gases relative to CO2. ODP: A measurement of how much a substance damages the ozone layer.
R-32 Safety Measure
To Use VRV 7 S Series Safely
R-32 refrigerant offers higher operating performance
compared to R-410A, but since it is slightly flammable,
proper handling is required. According to IEC 60335-2-40 Edition 7, additional safety measures may be necessary
depending on the operating conditions.
Enhanced Safety for Peace of Mind
In the case of a refrigerant leak,accumulated refrigerant gas inside the room may pose a safety risk. Daikin supports essential safety measures such as leak detection, alarms, and a safety shut-off valve (SSOV), along with a comprehensive inspection process to ensure safe operation.

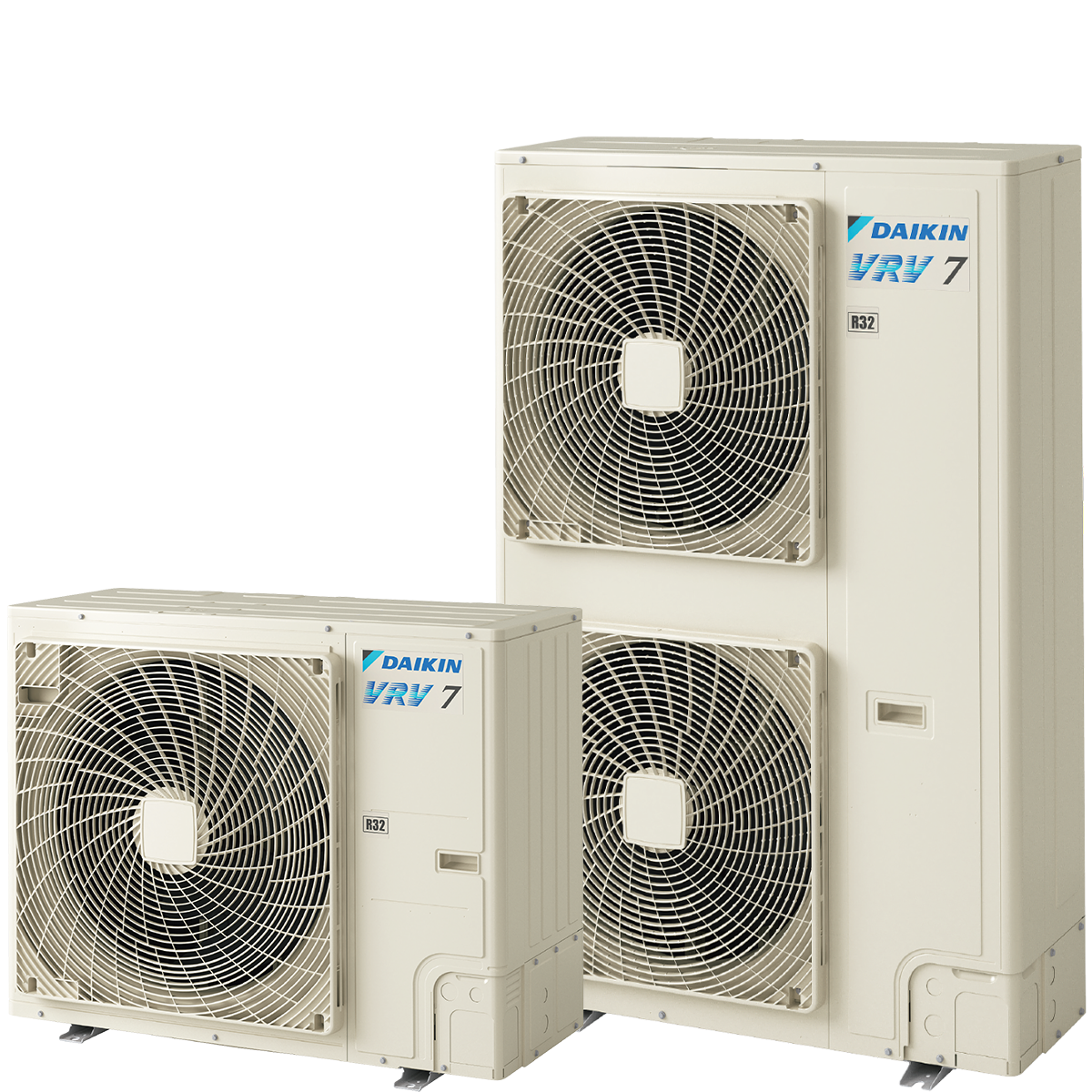

Enhanced Lineup

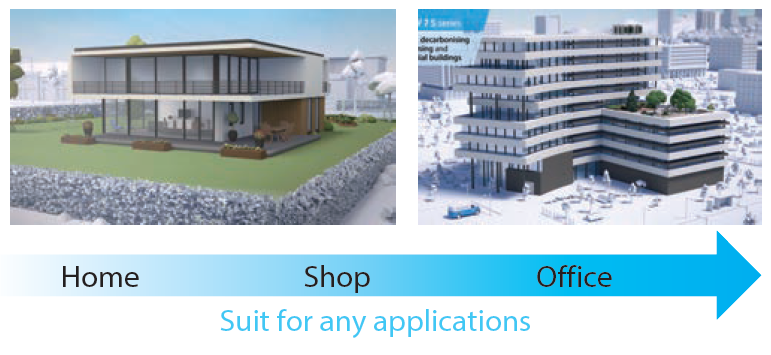

The compact casing does not obstruct the view and can be installed unobtrusively in a small space. It fits flexibly into a variety of applications, from homes to medium-sized stores and offices.

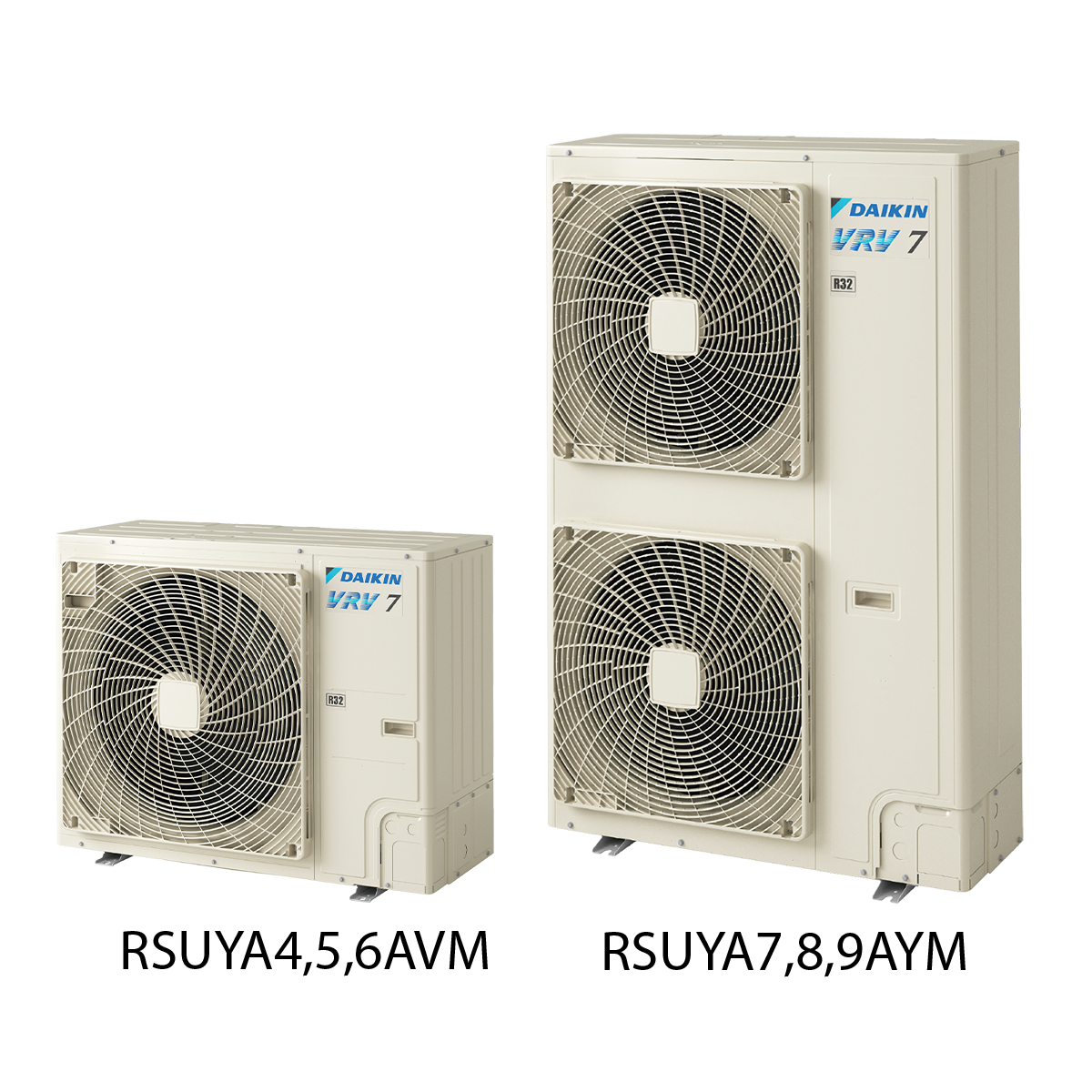

7 HP class model has been added keeping the small casing as conventional
models, allowing for more flexible options to suit each application.
| Model names | Class (HP) |
|---|---|
| RSUYA-AVM | 4-6 |
| RSUYA-AYM | 7-9 |
Power supply RSUYA-AVM : 1-phase, 220-240 V/220-230 V, 50/60 Hz RSUYA-AYM : 3-phase, 380-415 V/380 V, 50/60 Hz
Space-saving with Compact Casing

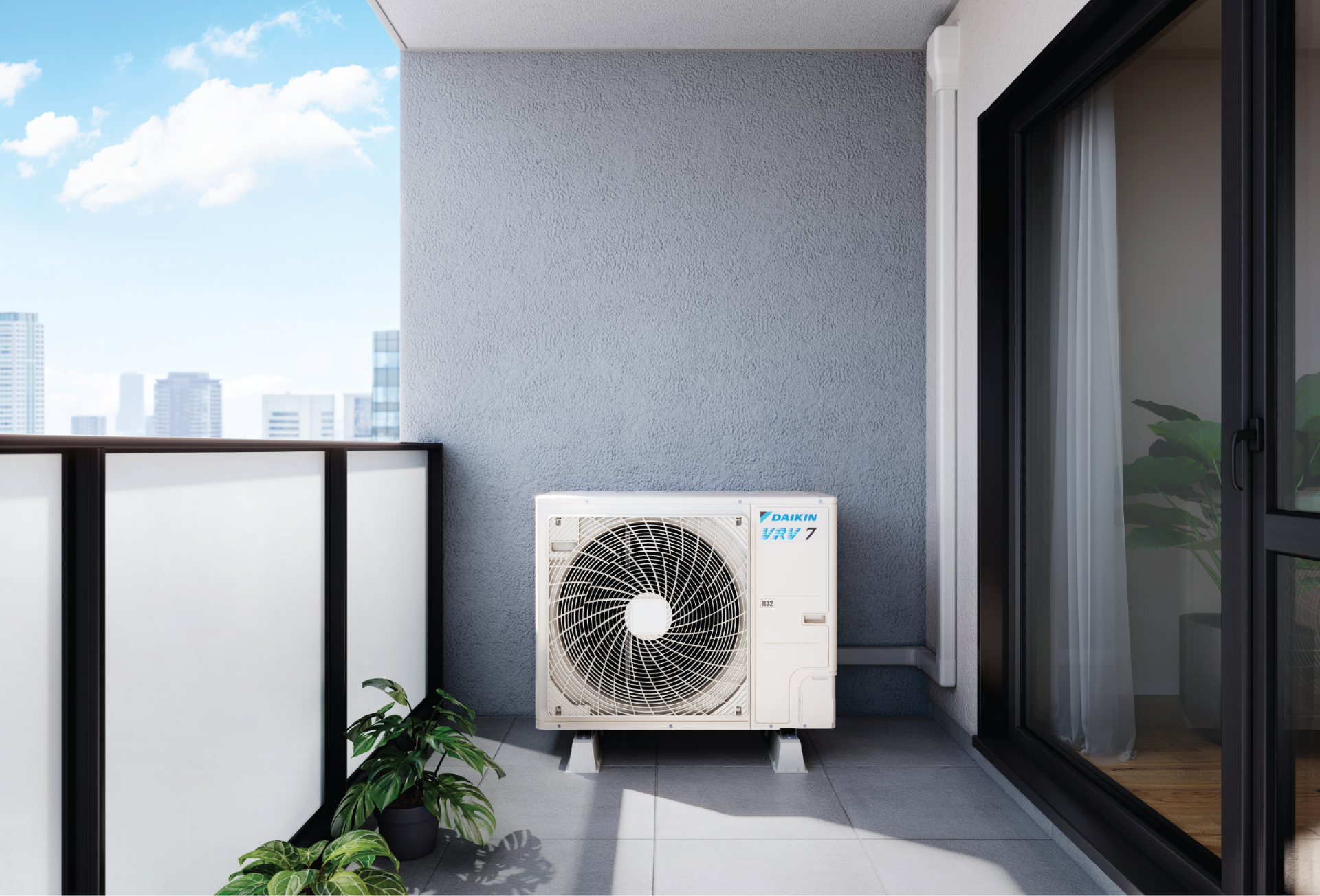

On the Balcony
This casing design can fit in a small space on balcony and provides occupants with a clear and unobstructed view of the scenery.

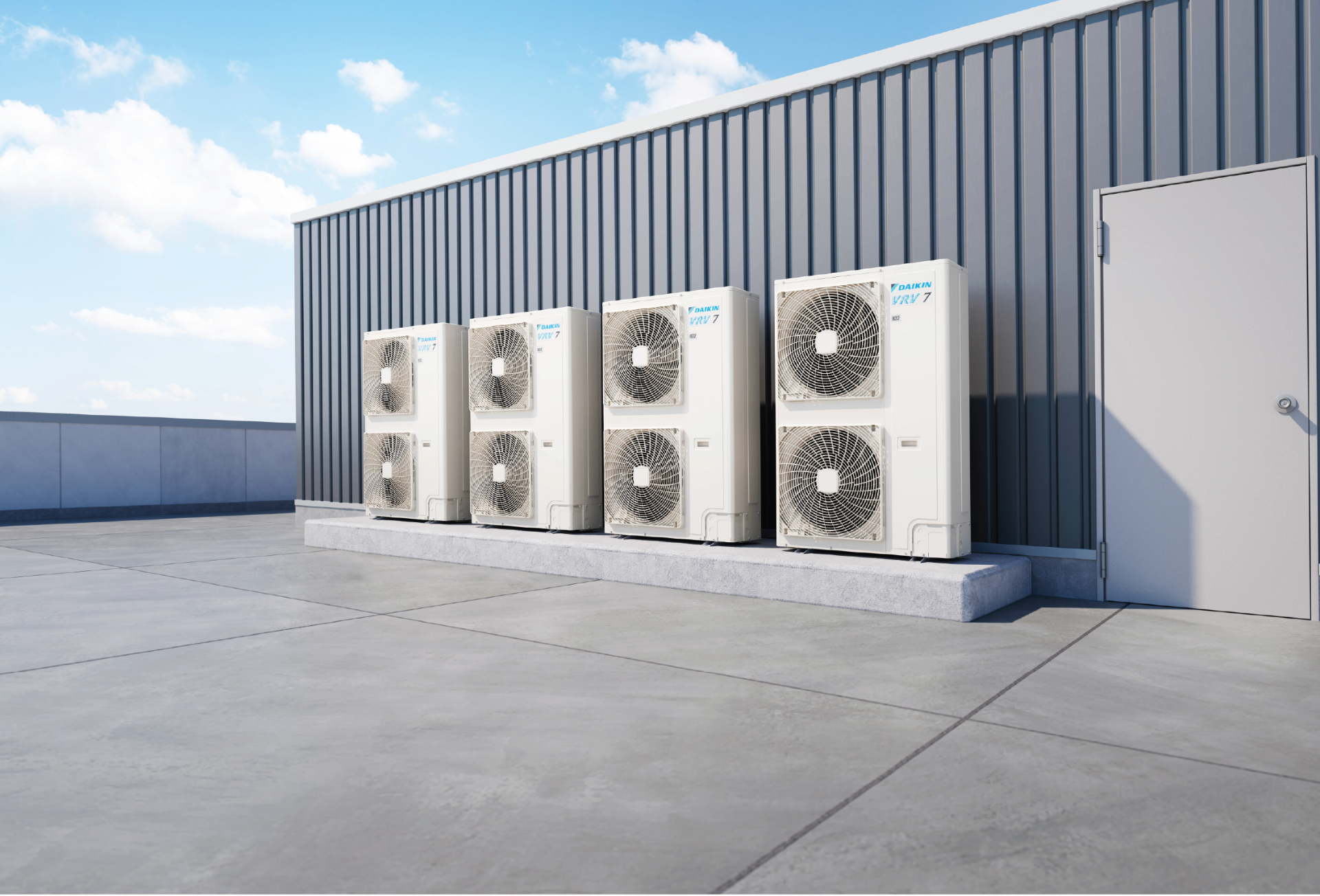

On the Rooftop
The compact casing requires minimal installation space, helping maintain a clean and uncluttered rooftop appearance.
Indoor Unit Lineup
R-32 indoor units for residential application to align with New VRV 7 S series, equipped with the new DIV-NET communication.

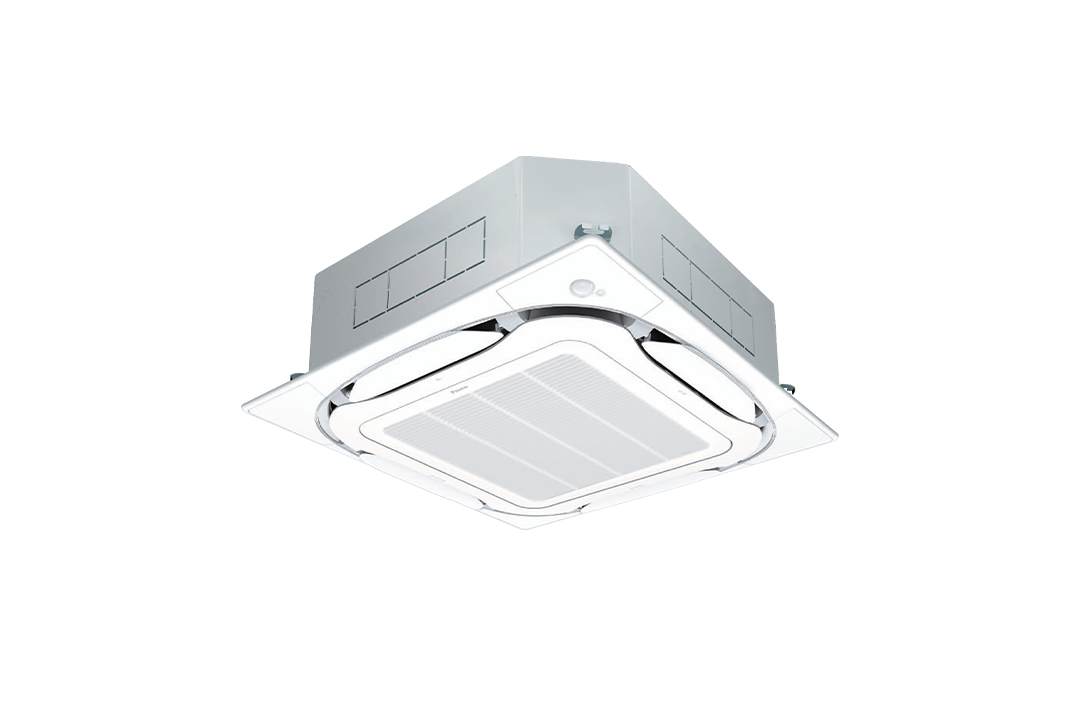

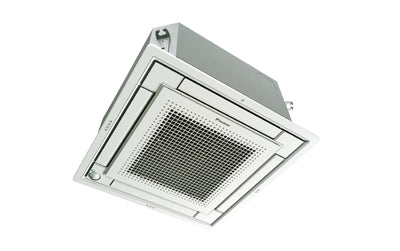

Round Flow Cassette with Sensing
FXFSA-AVM

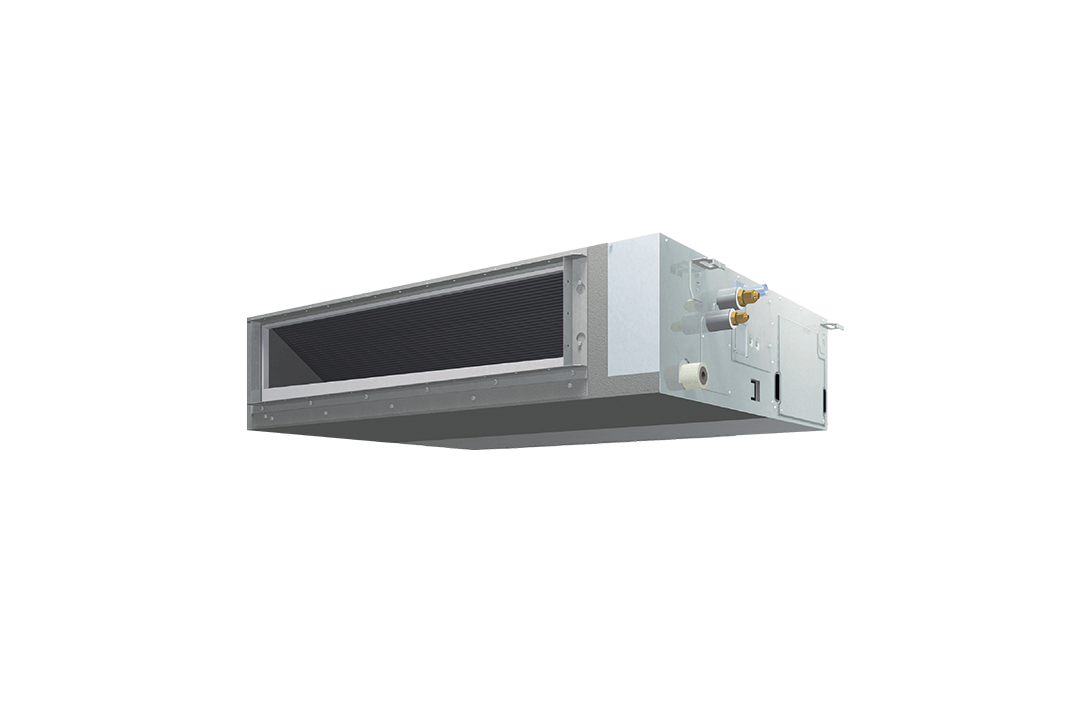

Middle Static Pressure Duct
FXSA-AVM
Controller Features
2 Colours
Available in two attractive colours, the new remote controller adds style and sophistication to any indoor space.
Compact Dimensions
Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.
Enhance Communication Protocol
Aim to enhance functions and improve maintenance by expanding field settings and error code details along with DIV-NET compatibility.
R-32 Refrigerant Leakage Alarm Function
Detects and alerts users of R32 refrigerant leaks to enhance safety and support timely maintenance.
User Interaction
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
Zigbee
Now compatible with Zigbee sensors for your convenience and comfort.
2 Colours
Available in two attractive colours, the new remote controller adds style and sophistication to any indoor space.
Compact Dimensions
Measuring just 85 x 85 mm, the remote controller is extremely compact and will become a fluid part of any background.
Enhance Communication Protocol
Aim to enhance functions and improve maintenance by expanding field settings and error code details along with DIV-NET compatibility.
R-32 Refrigerant Leakage Alarm Function
Detects and alerts users of R32 refrigerant leaks to enhance safety and support timely maintenance.
User Interaction
Much like the perfection of its circular shape, the remote controller gives you perfect control over your individual climate.
Zigbee
Now compatible with Zigbee sensors for your convenience and comfort.
