| Available in | Standard or Outdoor Air series |
| Refrigerant | R410A |

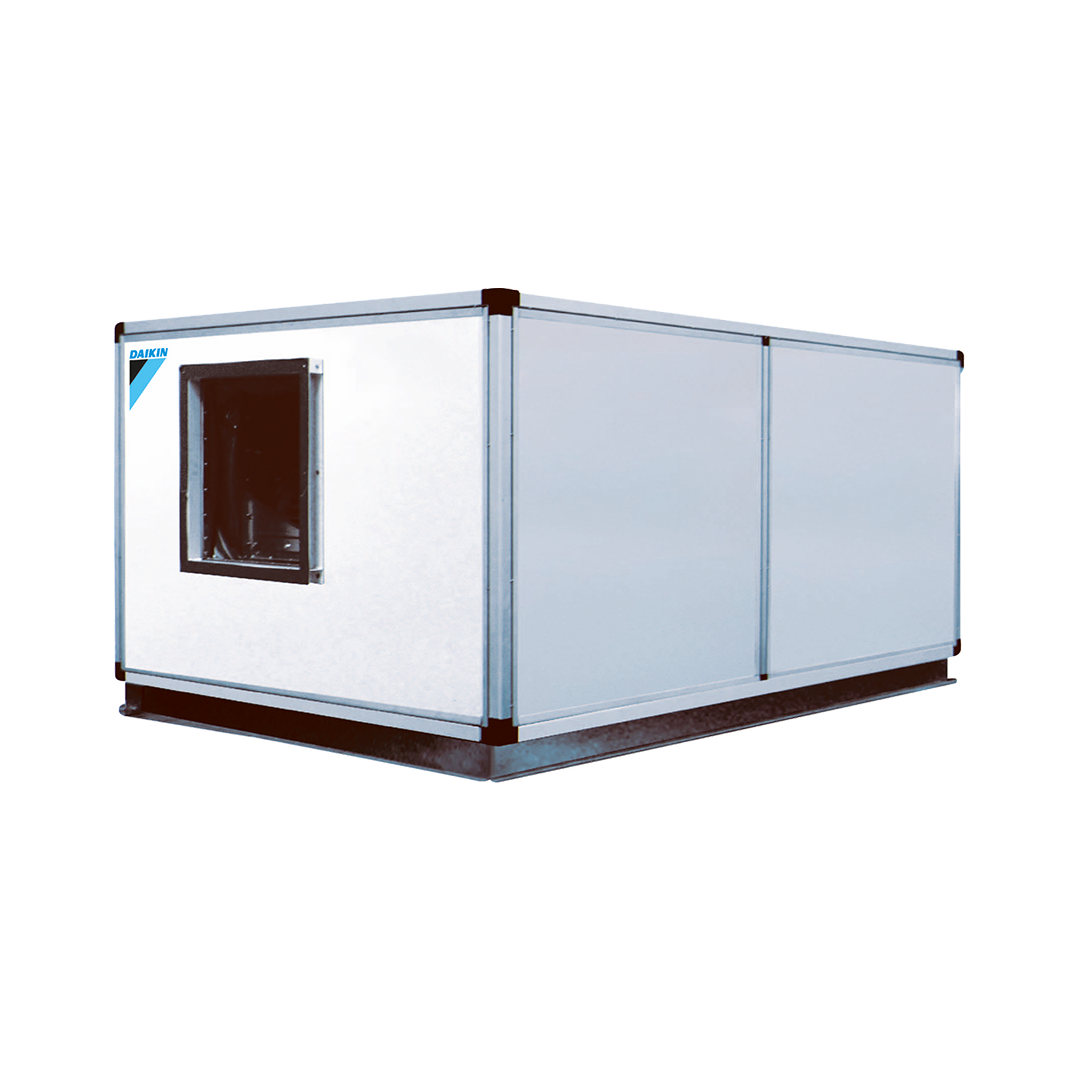

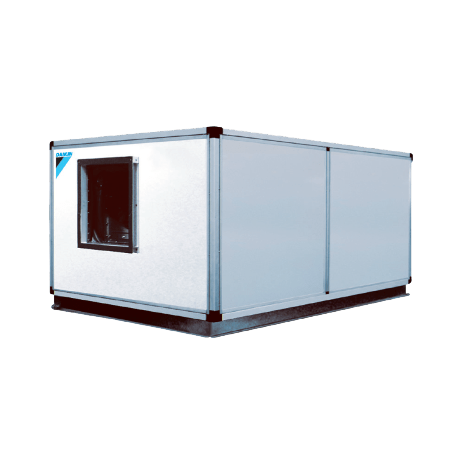

An industry first, the VRV Air Handling Unit (VRV AHU) has been designed and engineered by Daikin to create new opportunities for applying VRV into retail, offices, cinemas and commercial applications with large open spaces. Paired with our state of the art VRV IV Heat Pump outdoor units, they are able to harness its superior features including Variable Refrigerant Temperature 'VRT' technology (Standard series only), Daikin's inverter technology, connection to BMS systems and much more...
VRV AHUs are available in two preconfigured types, Standard series or Outdoor Air series from 6 to 60 horsepower with ESP of 500Pa. Custom configurations with a variety of options are also available to suit site constraints.
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (OU) | Max ESP | Dimensions (IU) | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | (kg) | ||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | OU | |||
| AHUR06CAVJ/DAVJ/DABVJ | 16.9 | 11.6 | 19.2 | 900 | 450 | 930 | 1150 | 1550 | 266 |
| AHUR08CAVJ/DAVJ/DABVJ | 23.7 | 16.3 | 26.7 | 1130 | 450 | 930 | 1450 | 1550 | 305 |
| AHUR10CAVJ/DAVJ/DABVJ | 28.2 | 19.7 | 30.8 | 1300 | 450 | 930 | 1450 | 1550 | 312 |
| AHUR16CAVJ/DAVJ/DABVJ | 47.5 | 32.8 | 53.1 | 2270 | 450 | 1230 | 1450 | 1650 | 395 |
| AHUR20CAVJ/DAVJ/DABVJ | 59.0 | 39.8 | 61.5 | 2600 | 450 | 1530 | 1450 | 1650 | 455 |
| AHUR32CAVJ/DAVJ/DABVJ | 95.1 | 66.4 | 101.2 | 4530 | 450 | 1530 | 1950 | 1950 | 635 |
| AHUR40CAVJ/DAVJ/DABVJ | 110.2 | 77.6 | 118.4 | 5200 | 450 | 1830 | 1950 | 2050 | 841 |
| AHUR48CAVJ/DAVJ/DABVJ | 140.2 | 99.9 | 153.5 | 6800 | 450 | 1830 | 2350 | 2050 | 1058 |
| AHUR60CAVJ/DAVJ/DABVJ | 177.4 | 118.9 | 174.4 | 7800 | 450 | 2030 | 2350 | 2050 | 1195 |
| AHUR08CALJ/DALJ/DABLJ | 26.6 | 9.2 | 174.0 | 900 | 450 | 930 | 1150 | 1550 | 305 |
| AHUR10CALJ/DALJ/DABLJ | 30.5 | 10.5 | 20.0 | 1130 | 450 | 930 | 1450 | 1550 | 343 |
| AHUR16CALJ/DALJ/DABLJ | 52.8 | 18.2 | 34.9 | 1300 | 450 | 930 | 1450 | 1550 | 393 |
| AHUR20CALJ/DALJ/DABLJ | 69.8 | 24.3 | 46.7 | 2270 | 450 | 1230 | 1450 | 1650 | 458 |
| AHUR24CALJ/DALJ/DABLJ | 80.1 | 27.6 | 52.3 | 2600 | 450 | 1530 | 1450 | 1650 | 561 |
| AHUR32CALJ/DALJ/DABLJ | 106.7 | 36.8 | 69.7 | 4530 | 450 | 1530 | 1950 | 1950 | 585 |
| AHUR40CALJ/DALJ/DABLJ | 142.5 | 49.2 | 93.3 | 5200 | 450 | 1830 | 1950 | 2050 | 784 |
| AHUR48CALJ/DALJ/DABLJ | 159.7 | 55.2 | 104.6 | 6800 | 450 | 1830 | 2350 | 2050 | 830 |
| AHUR60CALJ/DALJ/DABLJ | 207.4 | 72.0 | 140.0 | 7800 | 450 | 2030 | 2350 | 2050 | 1006 |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
Ease of Installation
No additional system such as cooling tower, chiller, and long water piping system are required. This also reduces the total system maintenance costs. And, Flexible design of the ducting system.
Total Solution Concept
Integrating an AHU into the total building climate system enables both design and installation procedures to be based on a single common technology. This simplifies project follow-up, installation, commissioning and maintenance since only one party is involved.
Quality and Warranty Assured
VRV AHU are manufactured by Daikin Factory.
Options
Wide range of options are available to meet your design requirements.
