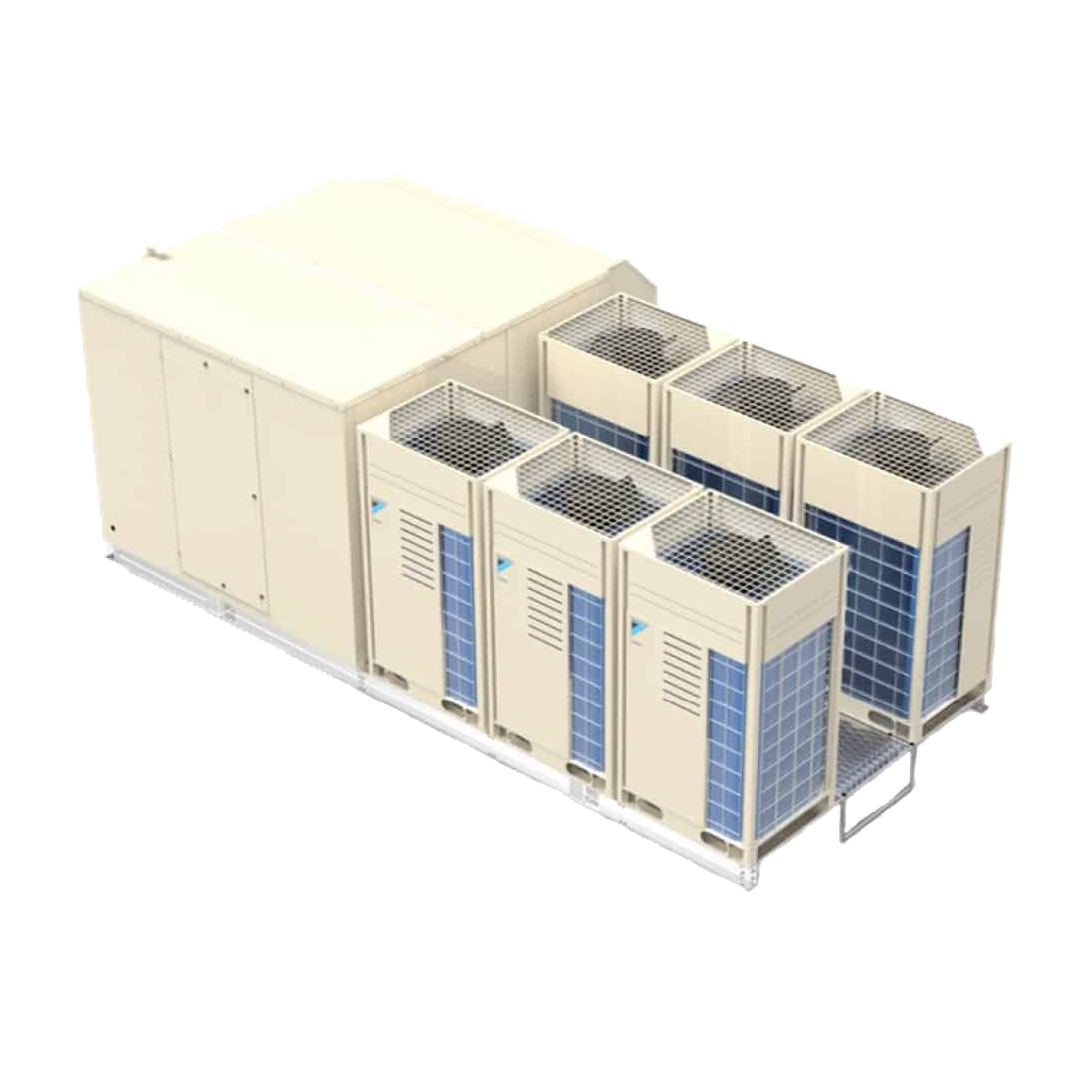

VRV Package Unit (UAXYQ-AY1)

The Daikin high-efficiency rooftop package air conditioning system is designed for large spaces such as shopping centers, warehouses, and halls. It combines a proprietary AHU with VR Heat Pump condensers and features advanced control with CO2 monitoring, economy cycle, and BMS integration. Ideal for commercial applications.

...

Technical Specifications

System N/A
Capacities N/A
Power Supply N/A

Documents

The Daikin high-efficiency rooftop package air conditioning system is designed for large spaces such as shopping centers, warehouses, and halls. It combines a proprietary AHU with VR Heat Pump condensers and features advanced control with CO2 monitoring, economy cycle, and BMS integration. Ideal for commercial applications.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
VRT Smart

Designed for our VRV and Sky Air systems, Variable Refrigerant Temperature continuously adjusts both the inverter compressor speed and refrigerant temperature in cooling and heating, allowing our systems to meet the building load with the highest levels of seasonal efficiency at all times.

...
Available in 2 Configurations

UAXYQ135AY1 - 135.0kW (6 x RXYQ8AYM) - Airflow: 2,880 - 7,200L/s. Max ESP: 445Pa. UAXYQ180AY1 - 180.0kW (4 x RXYQ16AYM) - Airflow: 3,840 - 9,600L/s. Max ESP: 380Pa.

...
Inverter Compressors

With refrigerant cooled inverter PCB.

...
Operating Range

Up to 49°C (ambient conditions)

...
System Casing

Featuring IP14 Rating

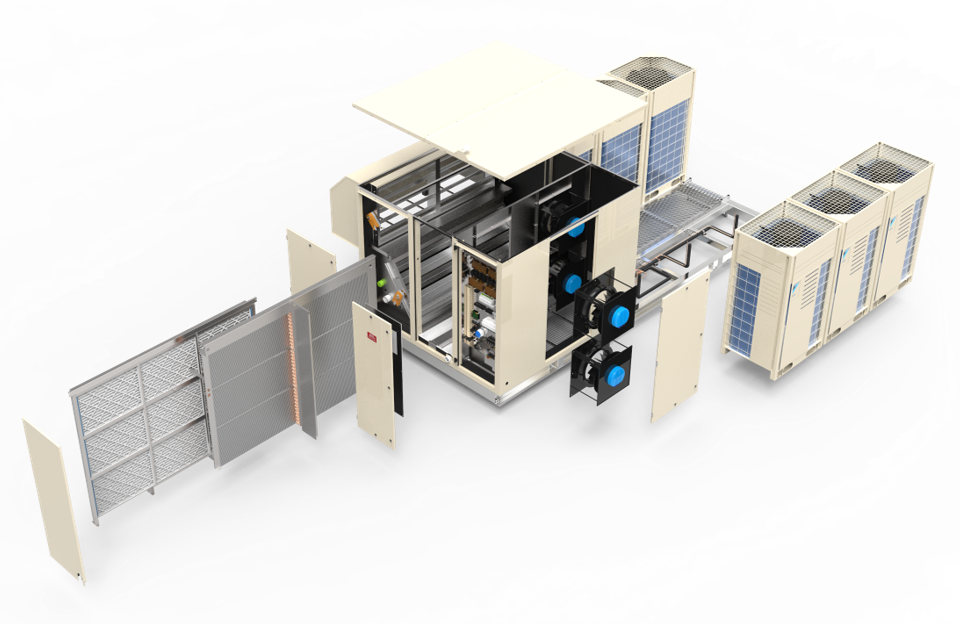

VRV Unit Package Structure

1Single Skin Panel (Ip14) & Thermobreak Insulation

20mm Closed Cell Polyolefin Foam - reinforced with AL foil Low Thermal Conductivity: 0.032W/mK @ 23degrees

2Rain Sensor

3OA Intake with Rain Hood

4Belimo Linear Damper Motors

5Service Walkway*

*Optional step & rail accessory available

6VRV Heat Pump

UAXYQ135: 6 x 8HP and UAXY0180: 4 x 16HP

74 x Rosenburg EC Plug Fans

(Backward Curve Fan)

8Emerson iPro PLC

After Hours Bypass Switch: field supplyCOz Sensor: included (Dwyer CDT-2N40), wiring is field suppliedRoom Temp./RH Sensor: included (Dwyer RHP-2N44), wiring is field suppliedAll other sensors included & prewired

9Hydrophilic Coated Heat Exchanger

(diameter)8mm Copper Tubes

10High Capacity Merv 9 Pleated Filters

QTY: 9 (UAXY135) or 12 (UAXYQ180)F5 Equivalent - filters submicron particles with 40-60% avg efficiency
