| Refrigerant | R410A |

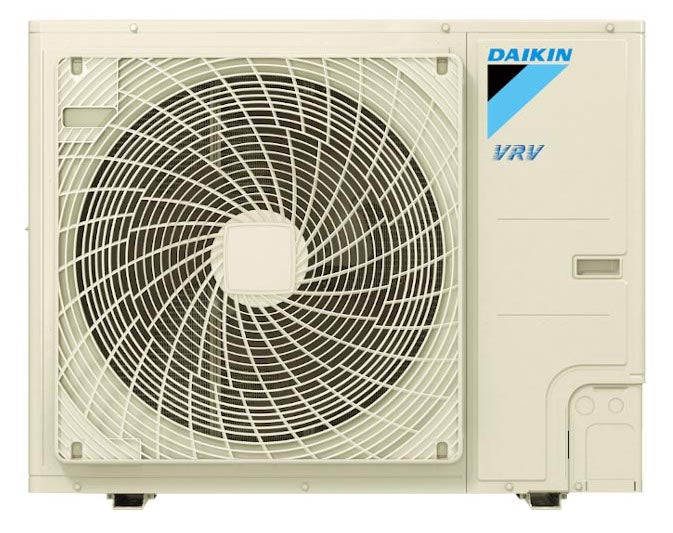

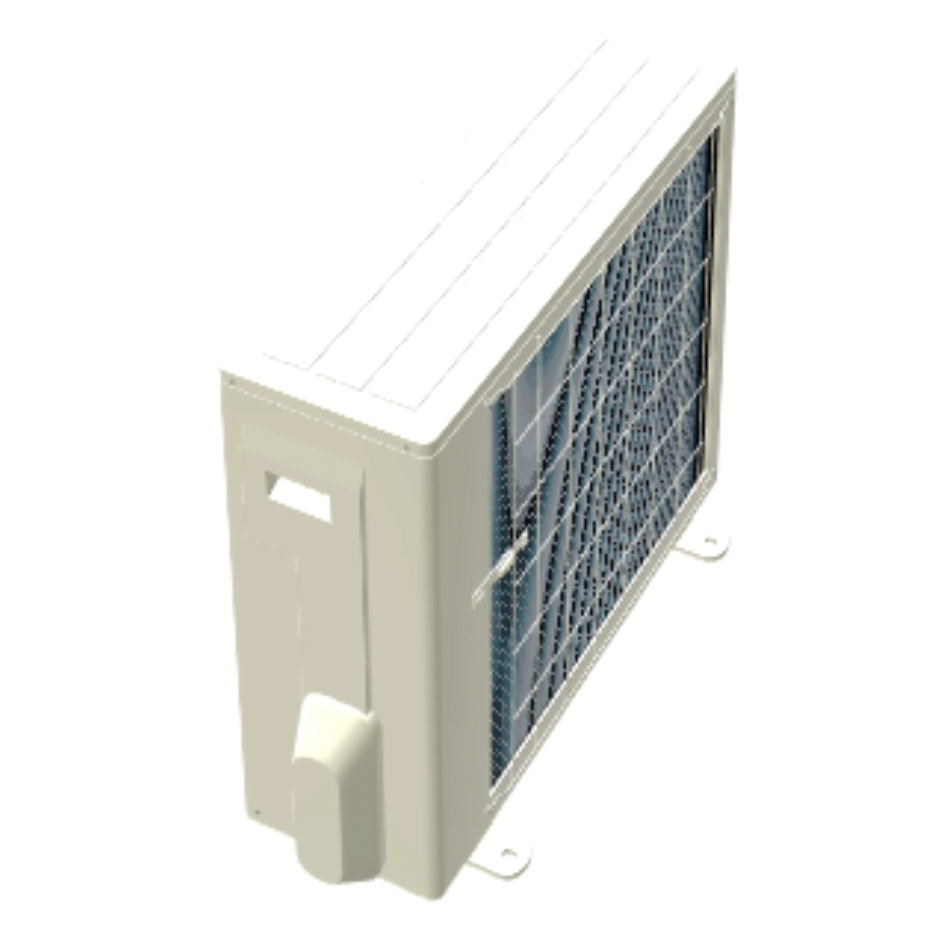

From apartments and accommodations to cafes and restaurants, the VRV S High Seasonal Efficiency provides personalised comfort for your building occupants. Available in 5 models in a unified single fan casing design - 870(H) x 1,100(W) x 460(D) across the range with capacities from 11.2 to 16.0kW.
Key features include Automatic Refrigerant Charge (ARC) function, max piping runs of up to 120m*, VRT Smart technology and refrigerant cooled PCB with operation range up to 52°C ambient.
*ARC must be used for pipe runs >90m
VRV HSE Flyer here
Technical Specifications / Documents
| (BIM) Engineering Data Links | Capacity | Air Flow (OU) | Dimensions (IU) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | (kg) | ||||||||
| (kW) | (kW) | (kW) | (mm) | (mm) | (mm) | OU | |||
| VRV S HSE One Phase | |||||||||
| RSUYQ4AVMA | 11.2 | - | 12.5 | 1450 | 870 | 1100 | 460 | 95 | |
| RSUYQ5AVMA | 14.0 | - | 12.5 | 1400 | 870 | 1100 | 460 | 98 | |
| RSUYQ6AVMA | 16.0 | - | 18.0 | 1450 | 870 | 1100 | 460 | 98 | |
| VRV S HSE Three Phase | |||||||||
| RSUYQ7AYM | 20.0 | - | 22.4 | 2050 | 870 | 1100 | 460 | 120 | |
| RSUYQ8AYM | 22.4 | - | 25.0 | 2050 | 870 | 1100 | 460 | 120 | |
Key Features & Technology
It's the unique features of Daikin products that makes us the world leader.
High Seasonal Efficiency
The VRT Smart Control enables improvements on efficiency during low load operation, achieving high seasonal efficiency.
VRT Smart Control
VRT Smart function is available in the VRV S High Seasonal Efficiency Series for the first time. Coordination between indoor and outdoor units minimizes energy consumption by optimising capacity to meet actual operation load.
Long Pipe Length
Increased actual piping length up to 120 m. Actual piping length increased by 20% allows for various installation!
Night Time Quiet Operation
The night time quiet operation function automatically suppresses the night time operating sound by reducing operation capacity to maintain the quiet environment of the neighborhood. Three selectable modes are available depending on the required level. This function is suitable for use in residential areas.
New Swing Compressor
High efficiency, high capacity DC inverter swing compressor offers higher performance compared to that of conventional scroll compressors.
Automatic Refrigerant Charge Function
Contribute to optimised operation efficiency, higher quality and easier installation.
