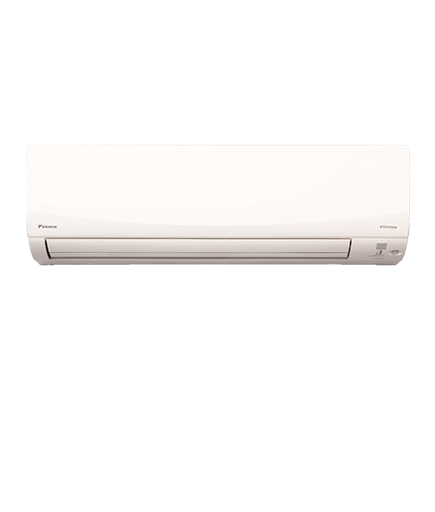

Wall Mounted Type (CTXM-R)

Refrigerant R32

Daikin multi-split indoor units include wall-mounted, duct-connected and ceiling-mounted cassette types. The wide lineup helps you achieve the interior design as well as the cooling and heating you want. These series also have capacities from 2.0 right up to 9.5 kW class. It is so easy to choose the right unit for every room in your home.

CTXM-R Brochure here

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (IU) Dimensions (IU) Weight
Indoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) IU
CTXM20RVMA 2.0 - 2.0 160 285 770 223 9
CTXM25RVMA 2.5 - 2.5 173 285 770 223 9
CTXM35RVMA 3.5 - 3.5 188 285 770 223 9
CTXM46RVMA 4.6 - 4.6 203 285 770 223 9
CTXM50RVMA 5.0 - 5.0 286 295 990 263 13
CTXM60RVMA 6.0 - 6.0 333 295 990 263 13
CTXM71RVMA 7.1 - 7.1 333 295 990 263 13
CTXM85RVMA 8.5 - 8.5 421 340 1200 259 17
CTXM95RVMA 9.5 - 9.5 400 340 1200 259 18

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Heat Plus

Heat Plus provides quick, direct spot heating using a shower of warm air for 30 minutes. If you return home on a cold day and are sensitive to cold Heat Plus will warm you quickly without raising the set temperature. It is also convenient in your bedroom when you need to change clothes in the morning.

...
Two-Area Intelligent Eye

This function uses its infrared sensor to direct airflow either toward or away from the people. Direct airflow may be more comfortable during cooling operation while indirectr airflow may be more convenient during deating operation. It also prevents energy wastage by detecting human movement in a room. If there is no movement for 20 minutes, it automatically adjusts the set temperature by approximately 2°C.

...
Titanium Apatite Deodorising Filter

While the filer's micron-level fibres trap dust, titanium apatite effectively absorbs odours and allergens, as well as deodorises odours. This filter delivers consistent performance for approximately three years if it is washed with water once every six months.

Controller Features

... ... ... ... ... ...
...
Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

...
Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

...
Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

...
Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

...
Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

...
Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Holiday Mode

Deviates from your normal schedules to your select holiday operation schedule.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.
