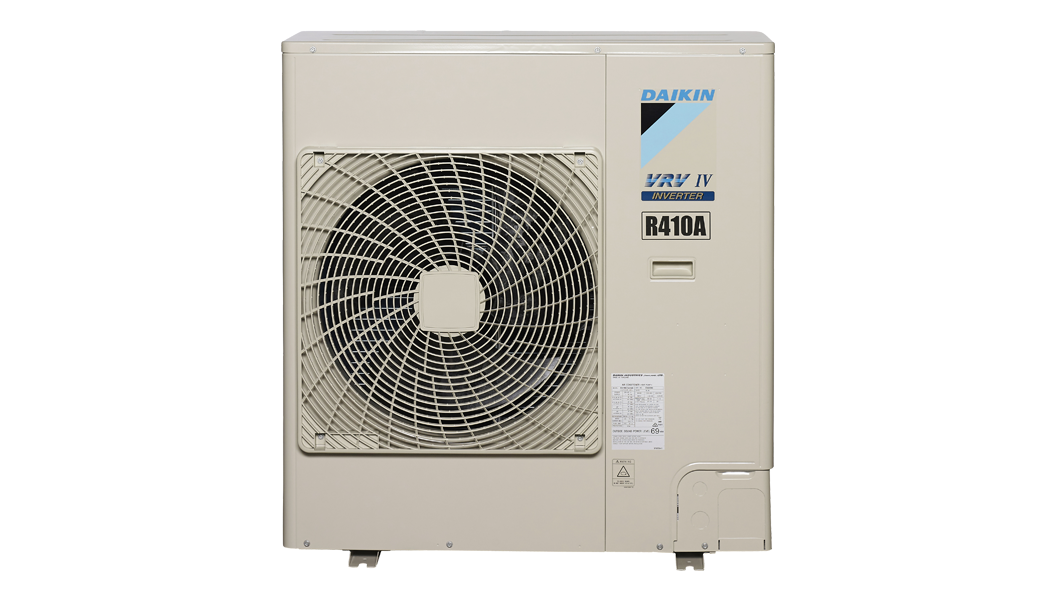

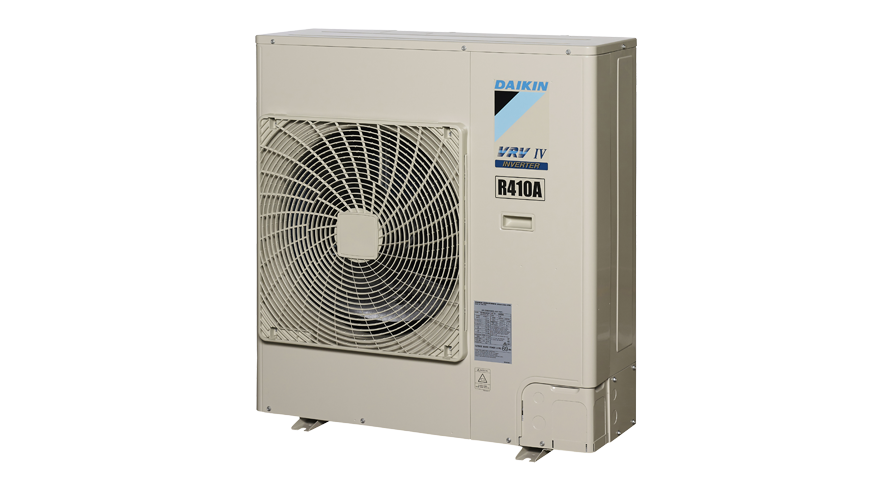

VRV IV-S

Available in Reverse Cycle (Heating or Cooling)
Capacities 9.0kW, 11.2kW, 14.0kW, 16.0kW, 22.4kW, 24.0kW
Refrigerant R410A

Daikin's VRV IV-S multi split air conditioning system incorporates the latest technology from our VRV commercial air conditioners including remarkable energy efficiency, quiet operations and long piping runs of up to 100m (24kW Model) for flexible condenser placement.

With the size of the New Zealand residential properties reducing over time, the compact size and horizontal discharge design of the VRV IV-S outdoor unit makes it an ideal solution for the modern home.

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications

System Reverse Cycle
Capacities 9.0kW, 11.2kW, 14.0kW, 16.0kW, 22.4kW, 24.0kW
Indoor Type Bulkhead, Ceiling Suspended & Cassettes, Ducted & Cassettes, Floor Standing, Wall Mounted
Power Supply 1 Phase: 220-240V, 50Hz
Refrigerant R410A
Show Full Tech Specs >

Documents

The ultimate multi-room air conditioning system with a wide selection of indoor and outdoor units to suit a variety of room sizes and designs for medium to large size homes.

Brochure > Operation Manual 1 > Operation Manual 2 > Warranty Info >

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
Compact Footprint

Available in a wide range of capacities whilst maintaining a compact installation footprint with long piping runs of up to 100m (24kW Model).

...
Ultimate Versatility

As many as 14 indoors can be connected ranging from wall mounted, floor standing, bulkheads, cassettes and ceiling suspended units.

...
Comfort for Everyone

Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

...
Night Time Quiet Mode

Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

...
Intelligent Comfort

Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

...
Energy Efficient

Running costs are kept low as only rooms requiring air conditioning can be switch on independently.

Controller Features

... ... ... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Centralised Control

Controls up to 16 groups of indoor units.

...
Individualised Scheduling

On/Off, temperature settings and scheduling can be controlled for each individual indoor unit.

...
One Touch Control

One touch button to turn all units on or off.

...
Convenient Group Control

Each group has a dedicated button for convenience.

...
Outside Temperature Display

The outside temperature can be displayed on the controller.

...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

1234

VRV-IV-S Technology

1Saw Edge Fan Blade

The addition of a saw tooth edge at the rear of the blade smooths airflow over the blade surface, reducing turbulence which in turn results in a quieter, more efficient means of delivering comfort to your home

2Compressor

Daikin’s swing and scroll compressors are quieter and more efficient than conventional compressors, thanks to their high pressure dome construction and usage of high pressure lubrication oil.

3Reluctance DC Motor

All VRV IV-S compressors are equipped with Reluctance DC Motors. These motors utilise the magnetic torque or neodymium magnets in conjunction with reluctance torque, resulting in more energy efficient operation.

4Inverter Technology

The Inverter PCB works like the accelerator of a car, gently increasing or decreasing power. This ensures your desired temperature is reached quicker and steadily maintained without fluctuations.

Compatible Indoor Units

Here are some indoor units that are compatible with the VRV IV-S outdoor unit

...

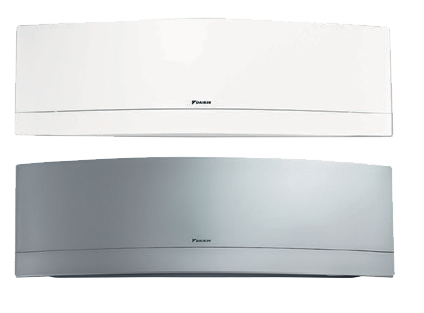

ZENA (CTXG-P)

Wall Mounted

Capacity Index:

50

View Operation Manual

Application:

- Designer series to suit small to mid sized contemporary rooms

- Available in silver or pure white matte finish

- 2 Area Intelligent Eye for draft free comfort and energy saving operations

Brochure
...

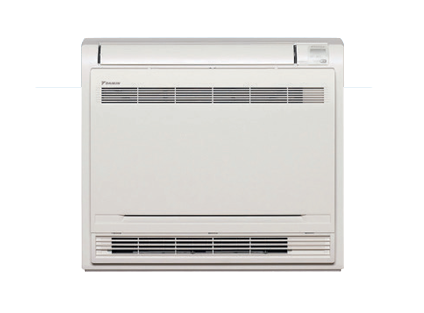

FLOOR STANDING (FVXS-K)

Floor Mounted

Capacity Index:

25, 35, 50

View Operation Manual

Application:
- Compact size with a 600mm height, ideal for placement under a window sill, or semirecessed into an unused fireplace
- Dual duct discharge offers superior heating performance

Brochure
...

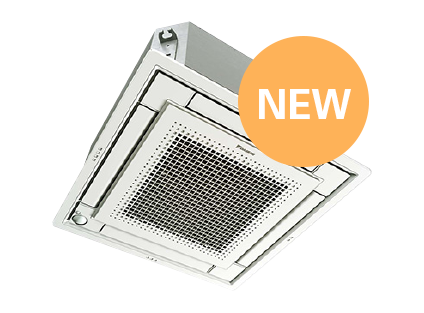

COMPACT CASSETTE (FXZQ-BVM)

Ceiling

Capacity Index:

20, 25, 32, 40, 50

Application:
- 4 way airflow delivers even temperatures over open plan areas
- Dimensions correspond with 600mm x 600mm architectural module ceiling design specifications

Brochure
...

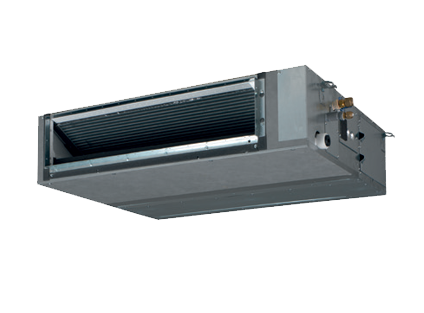

FXSQ-PAVE

Ducted

Capacity Index:

20, 25, 32, 40, 50, 63, 80, 100, 125, 140

Application:

- Wide capacities available in a compact size with 245mm height, ideal for open plan areas and installation in tight ceiling spaces
- Airflow is automatically adjusted to deliver superior comfort

Brochure
...

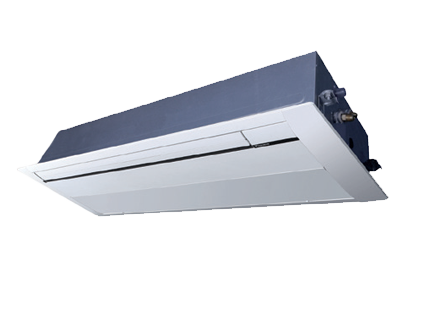

FXEQ-AV36

Cassette

Capacity Index:

20, 25, 32, 40, 50, 63

Application:
- The FXEQ-AV36 series is a slim body, discreet single flow ceiling mounted cassette ideal for installation into tight ceiling
spaces of as low as 255mm.

Brochure
...

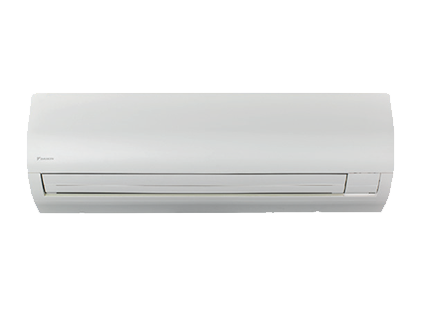

WALL MOUNTED (FXAQ-A)

Wall Mounted

Capacity Index:

20, 25, 32, 40, 50, 63

View Operation Manual

Application:
- Wide range up to 7.1kW, suitable for larger rooms
- Stylish flat panel design creates a graceful harmony that enhances any interior space

Brochure
...

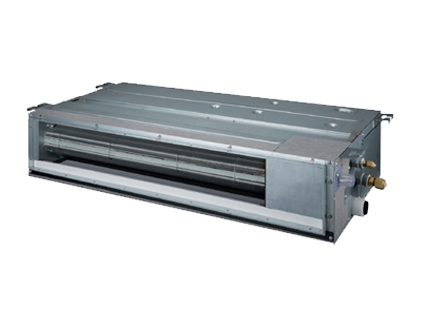

BULKHEAD (FXDQ-SPV1)

Ducted

Capacity Index:

25, 40, 50

View Operation Manual

Application:
-The FXDQ-P(N)DVE series are a range of low profile bulkhead with emphasis on quiet air conditioning and ease of installation in drop ceilings.

Brochure
...

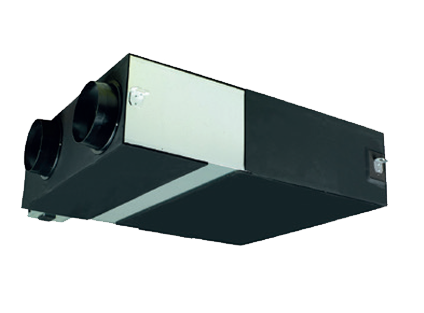

VAM-HVE

Ventilation Unit

View Operation Manual

Application:

- Introduce fresh air into your home while conserving heat with a Daikin VAM Unit.

Brochure
