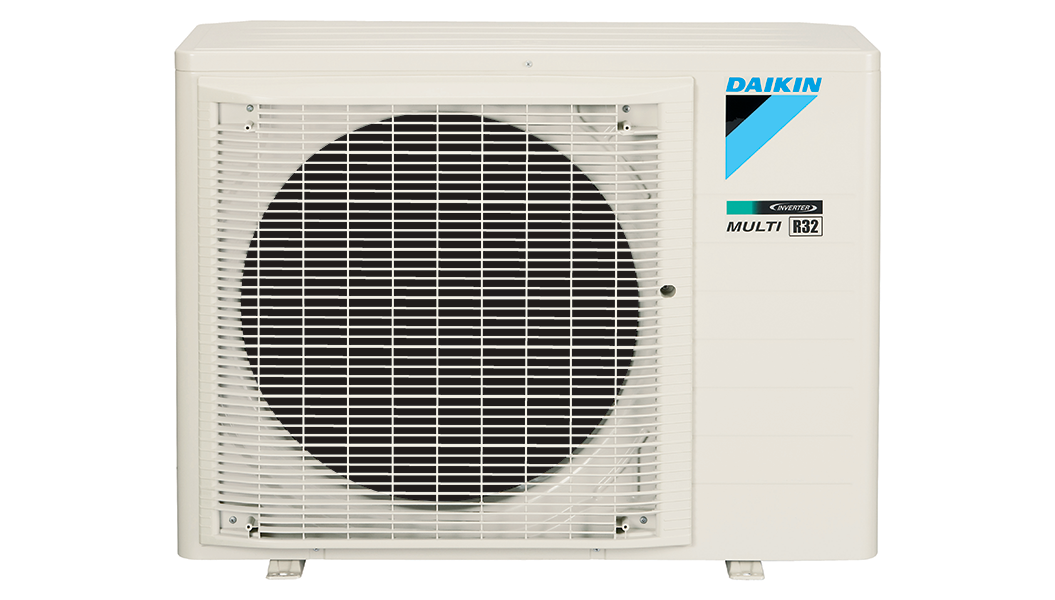

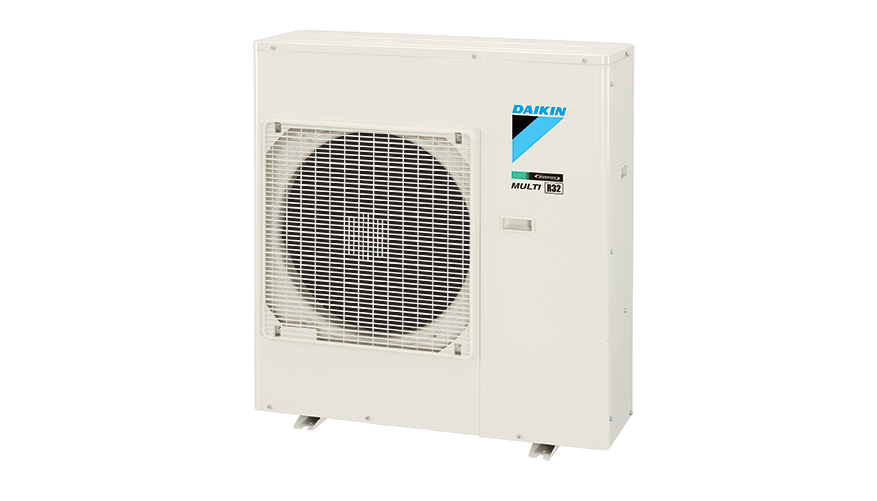

Super Multi NX

Refrigerant R32

With a wide variety of indoor units available, it is easy to select a model that matches your home décor and blends in unobtrusively.

A Daikin Super Multi NX (R32) air conditioning system gives you the ability to control indoor units individually. This means the ideal temperature can be maintained while ensuring running cost are kept low as only rooms requiring air conditioning are switched on.

The new Super Multi NX also features R32 refrigerant to deliver more efficient cooling and heating with less risk of harm to the environment.

Super Multi NX Brochure here

...

Daikin's 5-year parts and labour warranty applies to split, multi-split and ducted air conditioners purchased and installed in homes across New Zealand.

Technical Specifications / Documents

(BIM) Engineering Data Links Capacity Air Flow (OU) Dimensions (IU) Weight
Outdoor Unit TC HC SC H W D (kg)
(kW) (kW) (kW) (mm) (mm) (mm) OU
3MXM52RVMA 5.2 - - 886 695 930 350 53

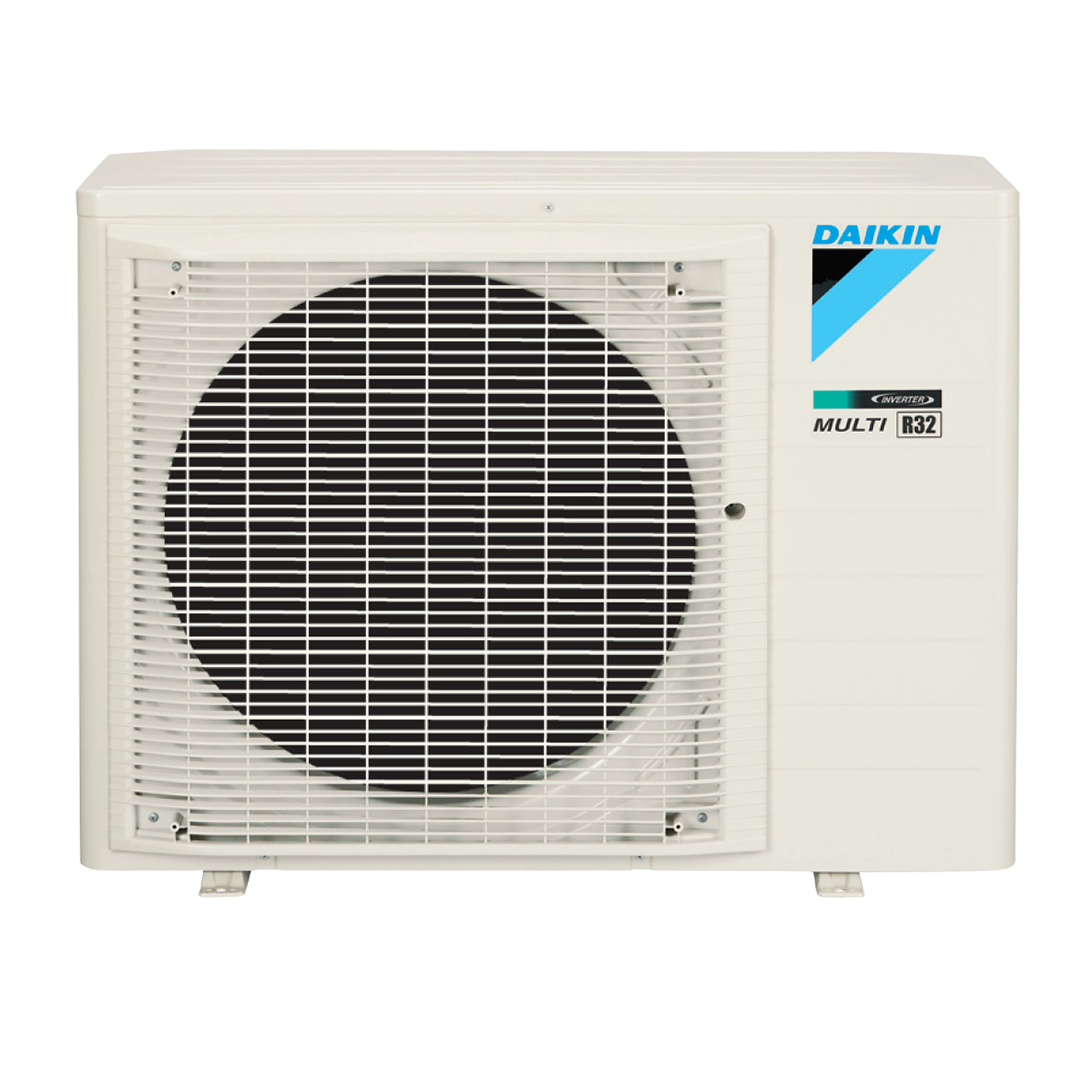

4MXM68RVMA 6.8 - - 956 695 930 350 56
4MXM80RVMA 8.0 - - 985 695 930 350 61
5MXM100RVMA 10.0 - - 993 990 940 320 83

Total capacity of connected indoor units is; up to 9.0 kW to the 3MXM52R; up to 11.0 kW to the 4MXM68R;up to the 14.5 kW to the 4MXM80R; up to 15.6 kW to the 5MXM100R. Minimum Total Connectable Capacity: At least two indoor units must be connected.

Key Features & Technology

It's the unique features of Daikin products that makes us the world leader.

... ...
...
R32 Refrigerant

Enables increased energy efficiency and a significant reduction in 'Global Warming Potential Factor' - great for the environmentally conscious.

...
Heat Plus

Wall mounted units can rapidly warm up the room with 60⁰C discharge temp for 30 minutes.

...
Priority Room Comfort

Allows you to shift up to 30% capacity from the other rooms to your priority room when required for rapid cooling or heating of that space.

...
Truly Versatile

Up to 5 indoor units can be connected to the outdoor unit for total home air conditioning.

...
Intelligent Comfort

Wall mounted indoor units feature Daikin’s Intelligent Eye human sensor that ensures draught free comfort and energy saving operations when the room is unoccupied.

...
Comfort for Everyone

Each indoor unit can be individually controlled, scheduled and set to the desired room temperature ensuring optimal comfort for all occupants.

Controller Features

... ... ... ...
...
Backlit Display

Clear large, easy to read text with a intuitive interface.

...
Weekly Schedule Timer

Program on and off times to suit your lifestyle.

...
Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

...
Holiday Mode

Deviates from your normal schedules to your select holiday operation schedule.

...
Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

...
Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

...
Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

...
Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

...
Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

SUPER MULTI NX (R32) Technology

1Saw Edge Fan Blade

The addition of a saw tooth edge at the rear of the blade smooths airflow over the blade surface, reducing turbulence which in turn results in a quieter, more efficient means of delivering comfort to your home.

2Compressor

Daikin’s swing compressors are quieter and more efficient than conventional compressors, thanks to their high pressure dome construction and usage of high pressure lubrication oil.

3Reluctance DC Motor

All Super Multi NX compressors are equipped with Reluctance DC Motors. These motors utilise the magnetic torque or neodymium magnets in conjunction with reluctance torque, resulting in more energy efficient operation.

4Inverter Technology

The Inverter PCB works like the accelerator of a car, gently increasing or decreasing power. This ensures your desired temperature is reached quicker and steadily maintained without fluctuations.

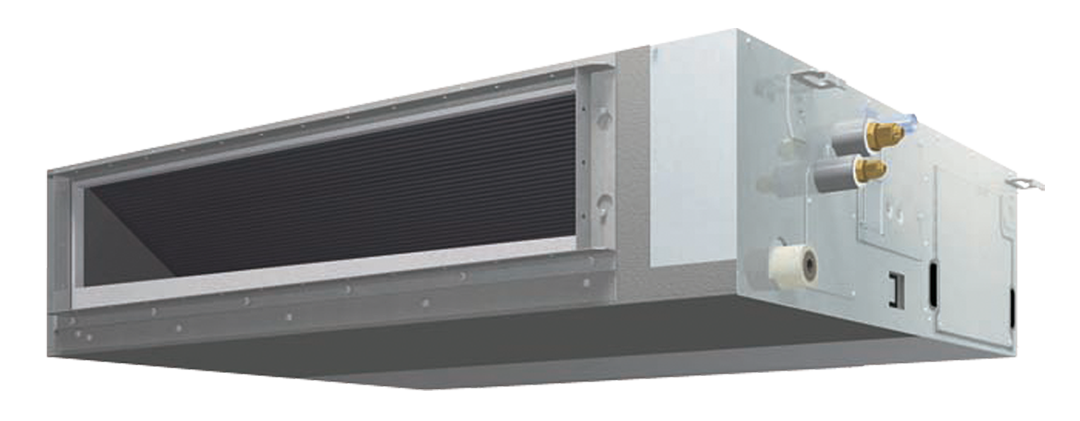

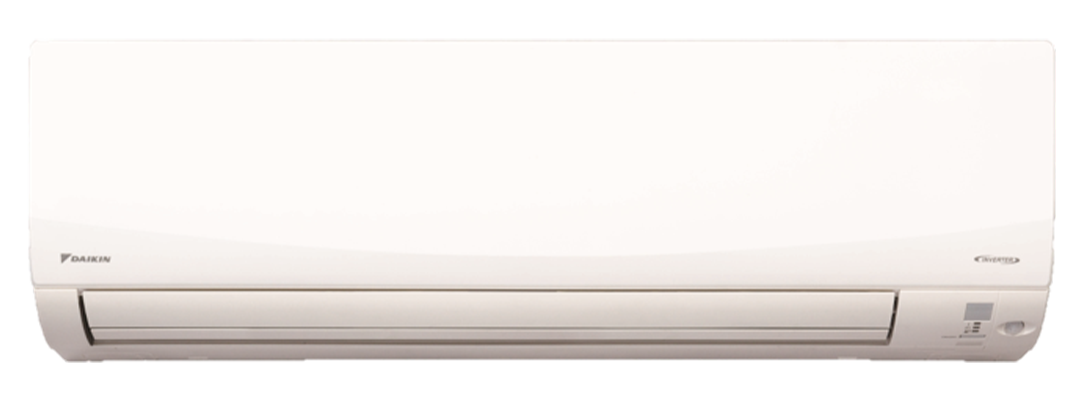

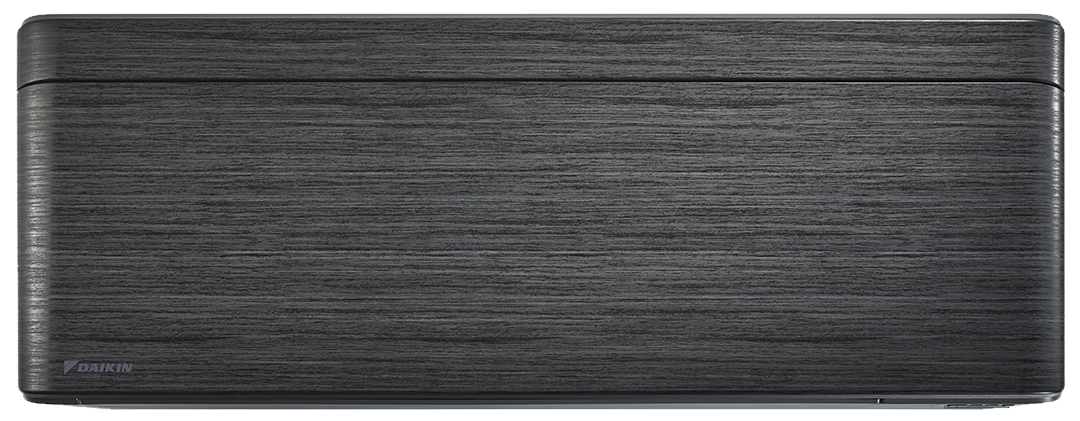

Compatible Indoor Units

Here are some indoor units that are compatible with the Super Multi NX unit

Contact a Daikin Sales Engineer

A Daikin Sales Engineer will assess and plan the right air conditioning solution for you, with creativity and sensitivity to the needs of your family or business.
